Page 1: User Manual

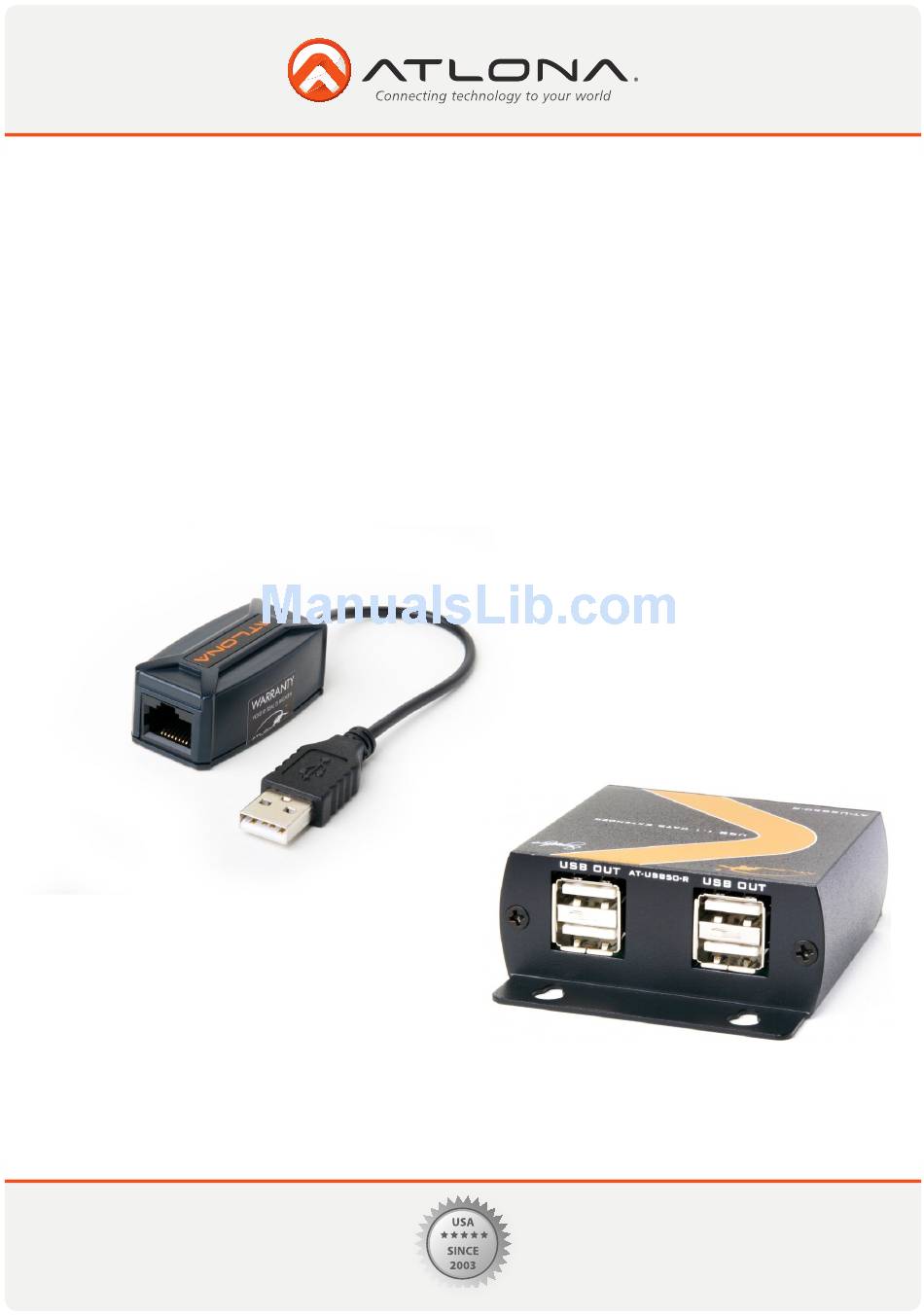

User Manual USB Extender over CAT5/6/7 up to 165ft with 4-port USB hub at the receiving end AT-USB50-SR Transmitter Receiver Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
5.1. Transmitting Module ..........3 5.2. Receiving Module ..........3 6. Connection and Operation ..........4 7. Troubleshooting ..........4 8. Warranty ..........5 9. Safety Information ..........6 10. Atlona Product Registration ..........7 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

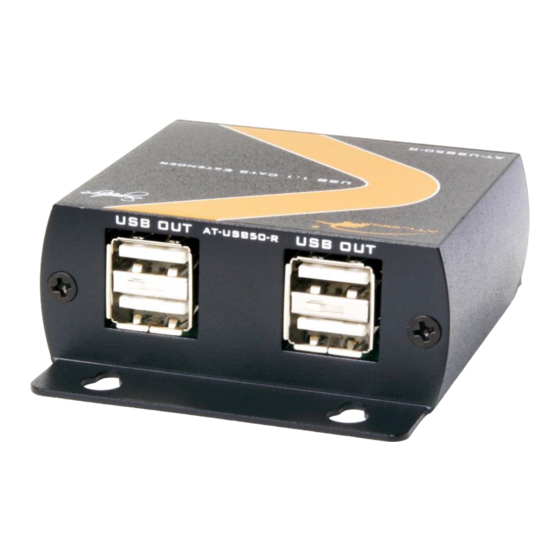

INTRODUCTION The Atlona AT-USB50-SR is a USB 1.1 Extender over single CAT5/6/7 cable up to the distance of 165ft. The USB50-SR is a perfect way of extending keyboard, mouse and possible printer away from the computer. The advanced design allows no limitations or delays when using extender versus a direct connection to the computer. -
Page 4: Panel Description
PANEL DESCRIPTION 5.1. Transmitting Module 1. Link to Receiver 2. Connect to Computer USB Port 5.2. Receiving Module 1. Connect any USB device to any of the ports Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Connection And Operation
If you are using patch panel or and RJ45 wall plates, the distance will be reduced, please do a direct connection bypassing all additional equipment. c. Please try to re-terminate your CAT5/6/7 wire to 568B. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Warranty
It may also cause damage to your AT-SDI230. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 7 Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.
-
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
