INSTRUMENT AND CONTROL FUNCTIONS
3

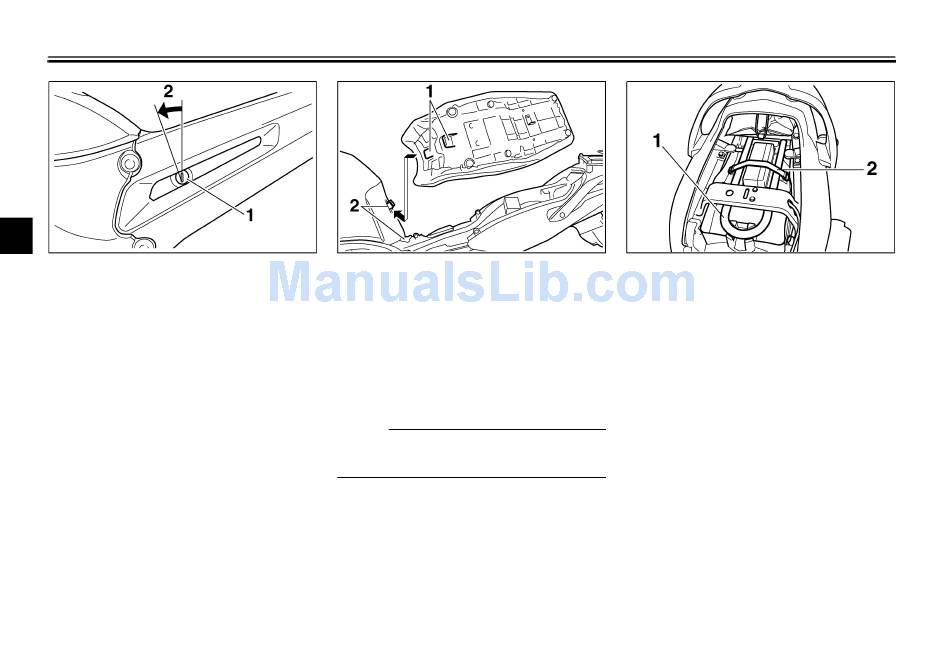

1. Seat lock
2. Unlock.

Seat

To remove the seat
Insert the key into the seat lock, turn it
counterclockwise, and then pull the
seat off.
1. Projection (× 2)
2. Seat holder (× 2)
To install the seat
EAU02925
Insert the projections on the front of the
seat into the seat holder, push the rear
of the seat down to lock it in place, and
then remove the key.
NOTE:
_
Make sure that the seat is properly se-
cured before riding.
_
1. U-LOCK (optional)
2. Strap

Storage compartment

This storage compartment is designed
to hold an optional genuine Yamaha U-
LOCK. (Other locks may not fit.) When
placing a U-LOCK in the storage com-
partment, securely fasten it with the
straps. When the U-LOCK is not in the
storage compartment, be sure to se-
cure the straps to prevent losing them.
3-11
