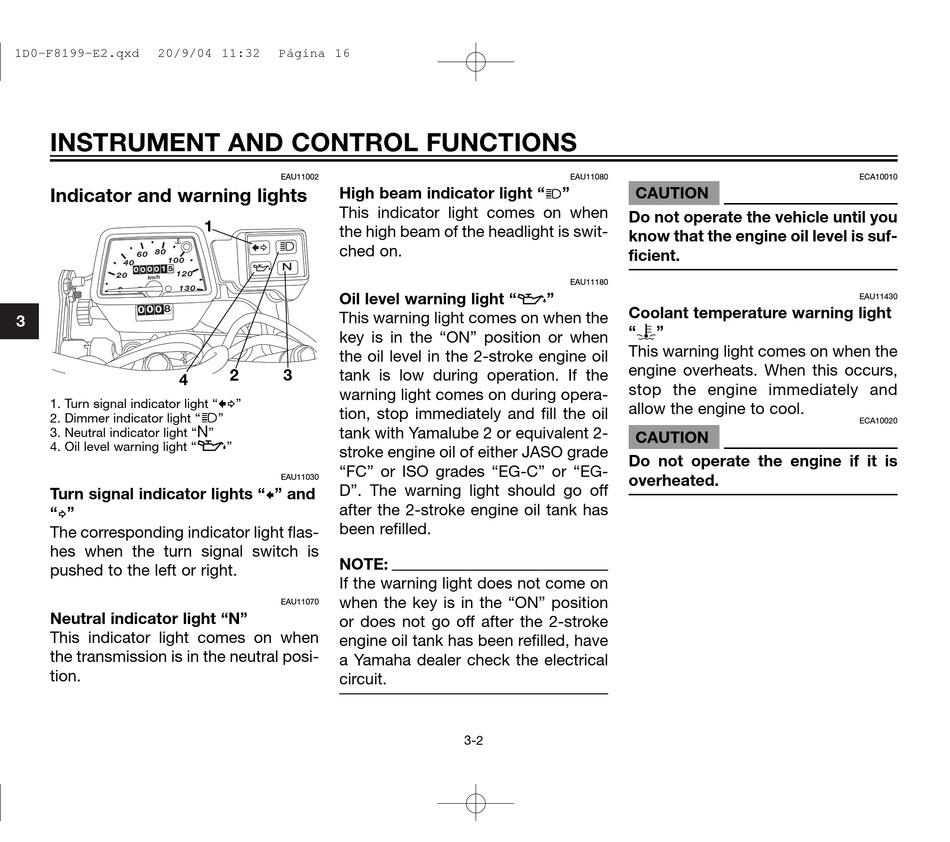

INSTRUMENT AND CONTROL FUNCTIONS

Indicator and warning lights

y
6 0 8 0
1 0 0
4 0
1 2 0
2 0
1 3 0
0
3
4
1. Turn signal indicator light "
2. Dimmer indicator light "
3. Neutral indicator light "
4. Oil level warning light "
Turn signal indicator lights "c" and
"d"
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
Neutral indicator light "N"
This indicator light comes on when
the transmission is in the neutral posi-
tion.
EAU11002
High beam indicator light "j"
This indicator light comes on when
1
the high beam of the headlight is swit-
b j
ched on.
N
z
Oil level warning light "z"
This warning light comes on when the
key is in the "ON" position or when
the oil level in the 2-stroke engine oil
2
3
tank is low during operation. If the
warning light comes on during opera-
b
"
tion, stop immediately and fill the oil
"
j
N
"
tank with Yamalube 2 or equivalent 2-
z
"
stroke engine oil of either JASO grade
"FC" or ISO grades "EG-C" or "EG-
EAU11030
D". The warning light should go off
after the 2-stroke engine oil tank has
been refilled.
NOTE:
If the warning light does not come on
when the key is in the "ON" position
EAU11070
or does not go off after the 2-stroke
engine oil tank has been refilled, have
a Yamaha dealer check the electrical
circuit.
EAU11080
CAUTION
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
EAU11180
Coolant temperature warning light
"y"
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
CAUTION
Do not operate the engine if it is
overheated.
3-2
ECA10010
EAU11430
ECA10020
