Summary of Contents for Caple C993G

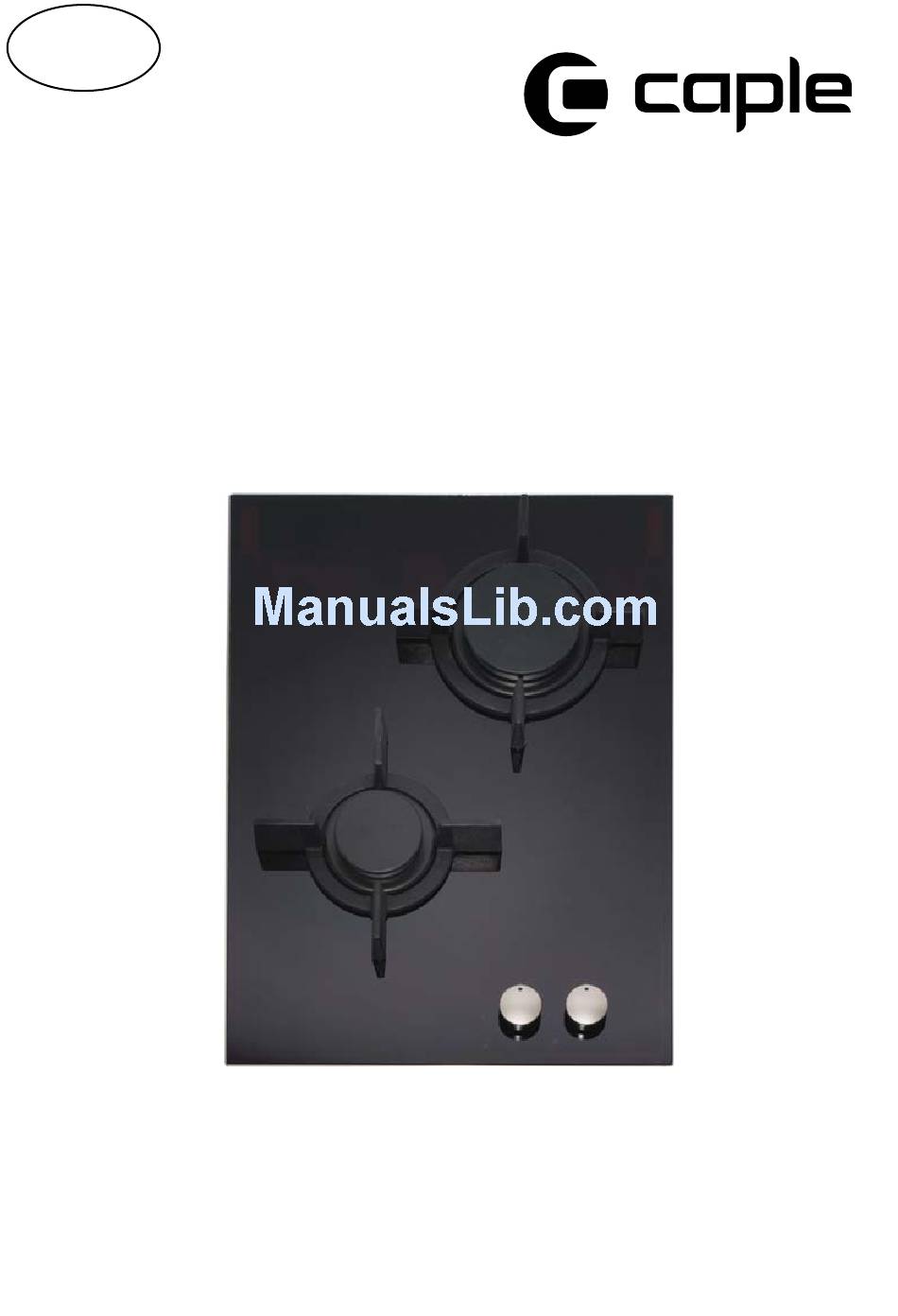

- Page 1 Instruction manual for gas hobs Model code: C993G Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
-
Page 2: General Notice
- The products of combustion must be discharged outside through a suction hood or an electric fan (see the “installation” paragraph). - For any possible operation or modification, apply to an authorised Caple Service Centre and demand original spare parts. -
Page 3: Instructions For The User
INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer. -
Page 4: Instructions For The Installer
G (fig.6). MODEL L (mm) P (mm) Installation room C993G This appliance is not provided with a device for exhausting the products of combustion. Any possible wall unit over the cook-top must be Regarding room ventilation rules where appliance... - Page 5 INSTRUCTIONS FOR THE INSTALLER Gas connection Adjusting the burners Make sure that the appliance is adjusted for The lowest flame point must always be properly the gas type available (see the label under the adjusted and the flame must remain on even if appliance).
- Page 6 CLOSED Maximum Minimum...

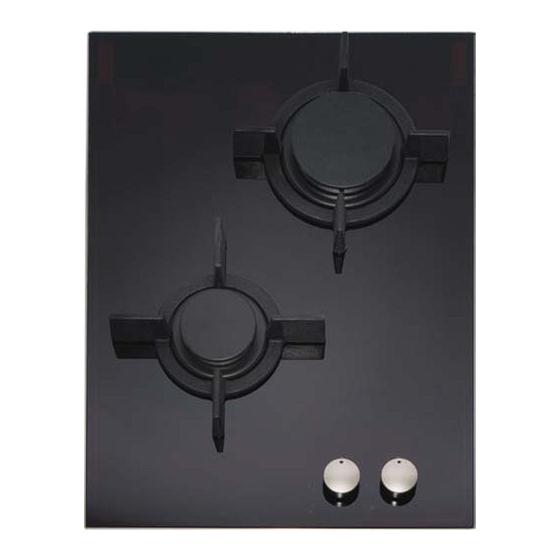

- Page 7 C993G 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Control knob for burner...
-
Page 8: Technical Characteristic Tables
TECHNICAL CHARACTERISTIC TABLES NOMINAL TAPE BY NOMINAL NORMAL INJECTOR BURNERS HEAT INPUT PASS PRESSURE RATE DIAMETER DIAMETER DESCRIPTION N° mbar 1/100 mm 1/100 mm Max. Min. G30 / G31 28-30 / 37 3000 RAPID 115Y Reg. 3000 G30 / G31 28-30 / 37 1750 SEMI-RAPID...
