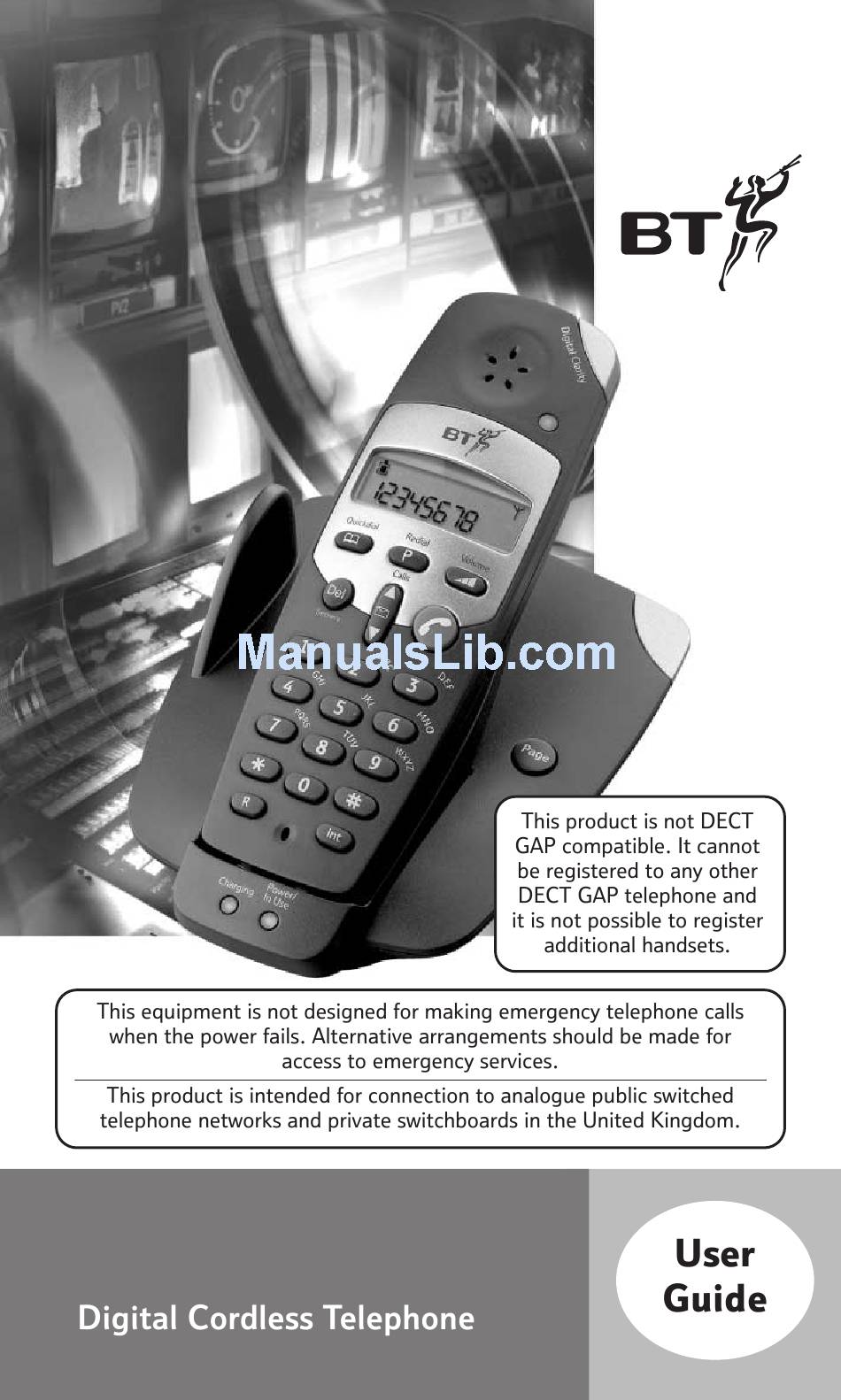

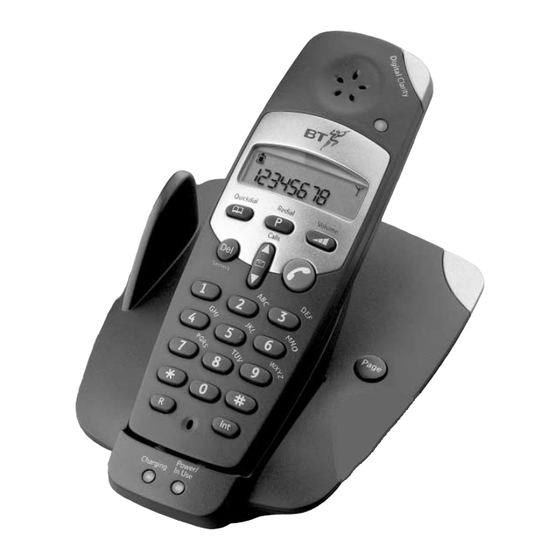

- Page 1 BT Studio / Studio Twin...
-
Page 2: At A Glance'
Please open this page for an ‘At a glance’ guide to your BT Studio. -
Page 3: At A Glance
Calls list. Int button Recall button Use to make an internal call or to transfer a call to the BT Studio For use with a switchboard/PBX additional handset (feature only and some BT Select Services. available if you have purchased Also use to exit the Calls list. - Page 4 Red light comes on when Green light comes on the batteries are being to indicate mains power. recharged. Flashes when the line is in use. Additionally if you have purchased the BT Studio Twin Red light comes on when the batteries are being recharged.
-
Page 5: Handset Display Icons
Quick guide to the handset display icons Batteries are charged Batteries are exhausted and require charging Batteries are being charged Switches off when batteries are fully charged Handset is in use Flashes to indicate an external incoming call Steady during an external call Flashes to indicate an internal call Indicates you are dialling or storing a number in the Quickdial memory... -
Page 6: Table Of Contents
Setting up Using the telephone Making and receiving calls Secrecy Last number redial Paging Quickdial memory Caller Display Handset settings Using the BT Studio additional handset Internal calls Transferring calls Help General information Guarantee Technical information Switchboard compatibility Switchboard external line access code... -
Page 7: Introduction
Introduction Your BT Studio is designed for ease of use and made to the high standards set by BT. You can expect your BT Studio to provide many years of quality service. Please read the instructions carefully before use and keep this user guide for future reference. - Page 8 Check that your BT Studio is complete. If anything is missing, please contact your place of purchase immediately. BT Studio handset BT Studio base station DECT Studio Power supply for the base station (Item code 872260) Telephone line cord 2 x AAA rechargeable batteries...
- Page 9 Date of purchase: Place of purchase: Serial number: (on the underside of the base station) For guarantee purposes proof of purchase is required, so please keep your receipt. If you have problems with your phone, please call the BT Studio Helpline on...
-
Page 10: Safety Information
The item number for the base station is 872260. The item number for the charger is 003313 (only applicable if you have purchased the BT Studio Twin). For the handset use only approved Nickel Metal Hydride (NiMH) rechargeable batteries. Never use other batteries or conventional alkaline batteries. - Page 11 Simply clean the handset and base station with a damp (not wet) cloth, or an anti-static wipe. Never use household polish as this will damage the product. Never use a dry cloth as this may cause a static shock. Do not expose to direct sunlight. The product may heat up when the batteries are being recharged.
-
Page 12: Setting Up
Setting up Follow these steps to set up your BT Studio ready for use. Situate your product close enough to the telephone and mains power supply sockets so that the cables will reach. Make sure the product is at least 1 metre away from other electrical products to avoid interference. - Page 13 The handset display will show . This means one handset is registered to the base. If you have purchased the BT Studio Twin the handset will show -2-. See page 15.
- Page 14 Only use the approved batteries. Using unapproved batteries will invalidate your guarantee and may damage the telephone. Before you use your BT Studio for the first time it is important to have the handset batteries fully charged. Place the handset on the base station.
- Page 15 1 minute and the icon will flash. Move closer to the base station. The BT Studio and BT Studio Twin have a range of up to 300 metres outdoors and up to 50 metres indoors. This is in ideal conditions.
- Page 16 The following instructions are only applicable if you have purchased the BT Studio Twin. If you purchased the BT Studio please skip to instruction number 7. Insert the batteries into your BT Studio Twin handset as shown on page 12. The handset display will show -2- as it is already pre-registered as handset 2.
- Page 17 Place the handset onto the charger. The red charging light will come on and the charging icon will be displayed while the batteries are charging. Leave the handset to charge continuously for at least 16 hours to reach full charge. Plug the telephone line cord into the line socket on your base station.
- Page 18 Your BT Studio/Studio Twin is now ready for use. If you experience any difficulties installing or setting up your BT Studio, please contact the BT Studio Helpline on...
-
Page 19: Using The Telephone
Using the telephone Press the button. You will hear the dial tone. icon and EXT will be shown on the display and the In use light on the base will flash. Enter the telephone number you want. Enter the telephone number first and then check that it is correct on the display. - Page 20 Press the button. icon and EXT will disappear from the display and the In use light will stop flashing. When the phone rings the EXT icon on the display will flash and the LED on the handset will also flash. If you subscribe to a Caller Display service the caller’s telephone number will also be displayed.
- Page 21 The handset(s) will ring for 30 seconds. To stop the handset(s) ringing, press any button on the handset. If you have purchased a Studio Twin you will need to press any button on the additional handset to stop that handset ringing.
- Page 22 You can store up to 10 of your most frequently used telephone numbers in the Quickdial memory. You can enter numbers up to 20 digits. Press the button. The display will show the icon. Press the keypad number between select the location number under which you want to store the number.
-
Page 23: Quickdial Memory
Press the button. Press the button. Enter the location number under which the number is stored. The telephone number will be shown on the display and dialled. If you hear a warning beep when trying to dial a number in the quickdial memory it means there is no telephone number stored under that location number. -
Page 24: Caller Display
With some incoming calls the telephone number of the caller is not available and cannot therefore be displayed. In this case, your BT Studio will show CALL instead of the caller's telephone number. The word CALL will not be stored in the calls list. - Page 25 Press the button to enter the Calls list. will be displayed. The most recent caller's telephone number will be displayed. Use the button to scroll to the next number in the list and use the button to scroll back to the previous number. To exit the Calls list at any time press the button.
-
Page 26: Handset Settings
Handset Settings You can only adjust the earpiece volume during a call. There are 3 earpiece volume levels to choose from: HIGH, LOW and MEDIUM. During a call: Press the button until you reach the required volume level. The volume will change from LOW, MEDIUM, HIGH and then repeat the sequence again, LOW, MEDIUM, HIGH. -
Page 27: Handset
BT Studio handsets. The BT Studio additional handset comes pre-registered to the main BT Studio base station. It is supplied with its own charger and must be charged continuously for 16 hours before you can use it. Please see Setting Up on page 15 if you have not already done this. - Page 28 You can transfer an external call to the other BT Studio Twin handset. During an external call: Press the button. The other BT Studio handset will ring. The other user should press the button to answer the call. You can now talk to each other.
-
Page 29: Help
Sometimes your BT Studio can interfere with other electrical equipment if it is placed too close. It is recommended that you place your BT Studio at least one metre away from such appliances to avoid any risk of interference. - Page 30 For spare batteries please call the BT Studio Helpline on BT accepts no responsibility for damage caused to your BT Studio by using any other type of batteries than those recommended on page 9.
-
Page 31: General Information
General information Your BT Studio is guaranteed for a period of 12 months from the date of purchase. Subject to the terms listed below the guarantee will provide for the repair of, or at BT’s or its agent’s discretion, the... - Page 32 Number (REN), which is used to calculate the number of items which may be connected to any one telephone line. Your BT Studio has a REN of 1. A total REN of 4 is allowed, if the total REN of 4 is exceeded, the telephones may not ring.
- Page 33 BT Select Services or those services available via your network provider. It is only available when a call is in progress.
-
Page 34: Switchboard Compatibility
Index t a glance ake a call atteries aging charging Pause insert Phone socket low warning performance Power supply replacing Preparatory dialling aller Display uickdial memory Calls delete a number dial a number external store a number internal ecall make Receive a call receive redial... - Page 35 Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC. Hereby, Suncorp Technologies, declares that this BT Studio is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The Declaration of Conformance for the BT Studio is published on the website http://www.suncorptech.com/bt...
- Page 36 Nothing in this publication forms any part of any contract. © British Telecommunications plc 2002. Registered Office: 81 Newgate Street, London EC1A 7AJ. Registered in England No. 1800000. BT Studio Issue 1 (05/02) 7 Designed by The Art & Design Partnership Limited.
