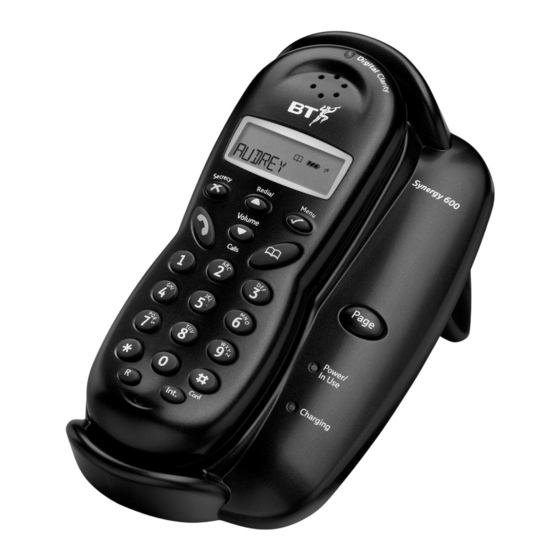

Digital cordless telephone featuring dect
Hide thumbs Also See for 600:
Table of Contents

Advertisement

Quick Links

Download this manual
Synergy 600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600 and is the answer not in the manual?

Questions and answers

Related Manuals for BT 600

Summary of Contents for BT 600

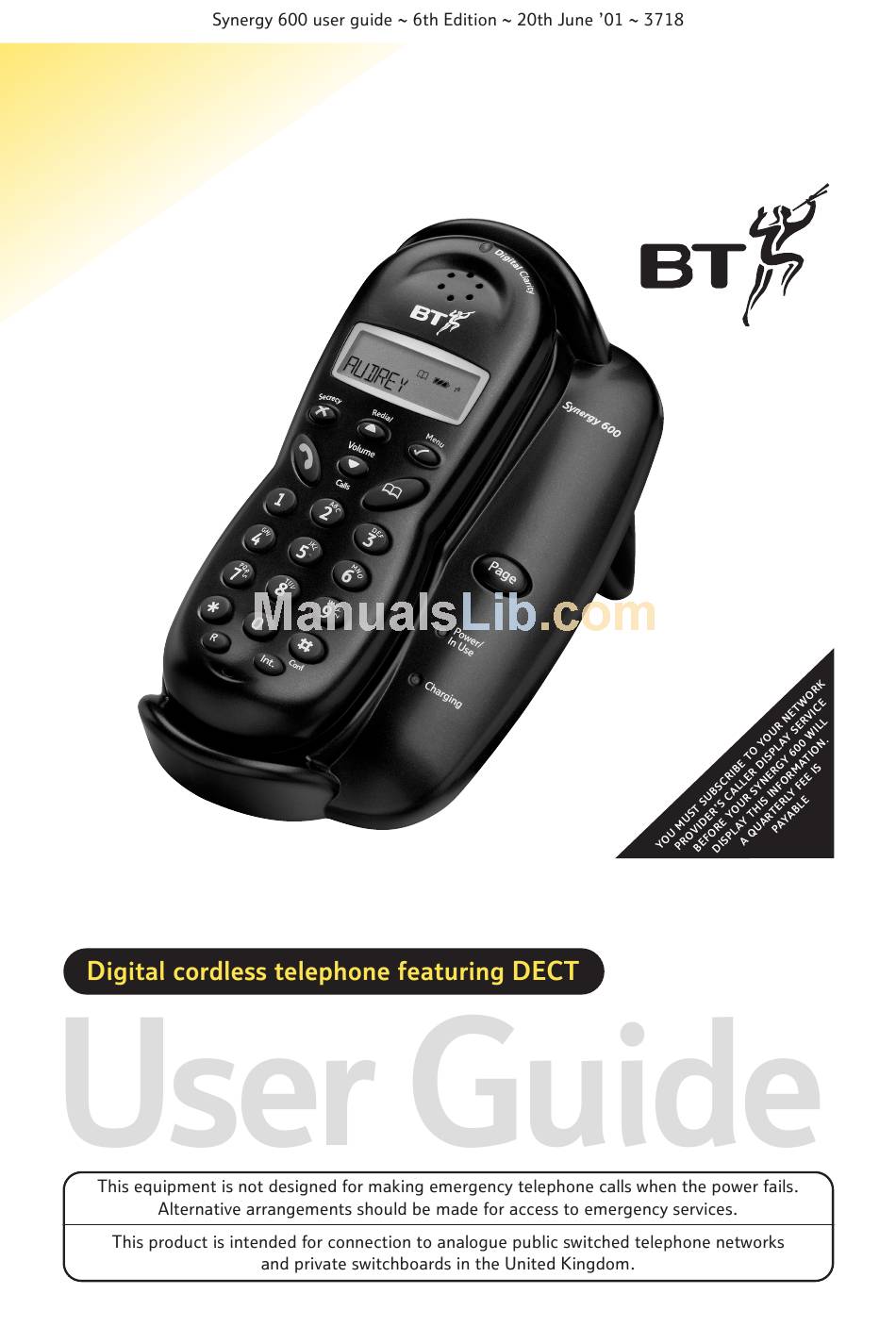

  • Page 1 Synergy 600...

  • Page 2: Quick Guide

    Quick Guide enter the name enter the telephone number Press the during a call until the required level is reached. enter handset number enter handset number - keep pressing to scroll. HANDSET to select volume SETUP to select melody RING VOL BASE VOL...

  • Page 4: Handset

    Use to make, receive and end calls. For use with a switchboard/PBX and BT Select Services. To indicate that the phone is ringing or in use. To redial one of the 5 last numbers called.

  • Page 5: Base

    New call in Calls list 3 way conversation in progress Battery weak Battery half-full Battery full Phonebook Menu in use Handset linked to base station Synergy 600 DECT Page Power/ In Use Charging Flashing Incoming call Internal call from another handset...

  • Page 6: Menu Structure

    Menu Structure If you make a mistake you can return to the previous menu heading by pressing the button. If you press and hold the button at any time you will return to the idle screen. After 30 seconds if no buttons are pressed the handset will automatically return to the idle screen.

  • Page 7: Table Of Contents

    In this guide At a glance Handset Base Display icons Menu structure Key features Introduction Unpacking your Synergy 600 For your records Safety information Setting up Using the telephone Making and receiving calls Redial Secrecy Name and number Phonebook 12...

  • Page 8: Key Features

    Telecommunications ( ensures much clearer calls than analogue cordless phones. Under ideal conditions you can use your Synergy 600 handset at up to 300 metres from the base station outside, or up to 50 metres inside. Display and redial the last 5 numbers called from your handset.

  • Page 9: Introduction

    Please read the instructions carefully before use and retain this user guide for future reference. If anything is missing, please contact your place of purchase immediately. One Synergy 600 base station One Synergy 600 handset (Nicad battery pack fitted) One power supply for base station One telephone line cord Only use the power supply included with the product.

  • Page 10: Setting Up

    Make sure it is at least 1 metre away from other electrical products to avoid interference. Do not place your Synergy 600 product in the bathroom or other humid areas. Plug the power supply cable into the power socket on the underside of your base.
  • Page 11 Eventually they will need to be replaced. New battery packs can be obtained from any BT Shop or from the Helpline on After charging your handset for the first time, subsequent charging time for the battery pack is approximately 6-8 hours a day.
  • Page 12 Your Synergy 600 is now ready for use.

  • Page 13: Using The Telephone

    Using the telephone Press and hold the to switch the handset off. To switch the handset on, press and hold the again. Press the button. You will hear the dial tone and the display will show symbol. Enter the number you want. Enter the number to be dialled.

  • Page 14: Redial

    When the phone rings the display will show CALL and the EXT symbol will flash. Press the button to answer the call. If the handset is on the base, simply lift it up and speak. During a call: You can adjust the earpiece volume.

  • Page 15: Secrecy

    When on a call you can talk to someone in the same room, without your caller hearing. During a call, press the button. The display will show MUTE. Your caller cannot hear you. Press the button again to resume your call. You can store up to 50 of your most frequently used names and numbers in the Phonebook.
  • Page 16 You may want to enter a pause when storing international numbers, Charge card numbers or if you connect your telephone to a switchboard. (For more information on switchboard use see page 32.) When storing the number, press and hold the until a P is displayed, at the point where you want to enter the Pause.

  • Page 17: Paging Handsets

    Press the button to enter the menu. The display will show PHONEBK, press the button. Use the button to scroll to DELETE and press button. Use the buttons to scroll through to the entry you want to delete. When you have found the name to delete, press the button.

  • Page 18: Handset Settings

    Handset settings Press the button to enter the menu. Use the scroll to HANDSET and press button. The display will show BEEP, press the button. The display will show KEYTONE, press the button. Use the to select either ON or OFF. Press the button.
  • Page 19 There are 5 melodies to choose from and you have the option to choose a different melody for external and internal calls. Press the button to enter the menu. Use the button to scroll to HANDSET and press button. Use the button to scroll to either INT MEL or EXT MEL.
  • Page 20 The handset name is pre-set as SYNERGY, however, you can personalise each handset by giving it a name. Press the button to enter the menu. Use the scroll to HANDSET and press button. Use the scroll to NAME and press the button.

  • Page 21: Base Settings

    Base settings There are 5 levels to choose from ( ), or you can turn the ringer off altogether. Press the button to enter the menu. Use the button to scroll to SETUP and press the button. The display will show BASE VOL.
  • Page 22 If a handset is registered to more than one base station, you can select which base your handset will use. For more information on registering your handset to another base, see page 25. Press the button to enter the menu. Use the scroll to SETUP and press the button.
  • Page 23 Press the button to enter the menu. Use the button to scroll to SETUP and press the button. Use the button to scroll to DEFAULT and press button. The display will show PIN? Enter the base PIN (original setting OOOO) Press the button.

  • Page 24: Bt Select Services

    With some incoming calls the telephone number of the caller is not available and cannot therefore be displayed. In this case, your Synergy 600 provides you with some explanatory information about the type of call received. This will be one of the following.
  • Page 25 Press the button to enter the Calls list. Use the button to scroll backwards and forwards through the Calls list. If the name of your caller is displayed, press the button and the number will be displayed. Press the button and the time of the call will be displayed.

  • Page 26: Call Waiting

    Press the enter the Calls list. Use the to scroll to the number you want. When the number you want to delete is displayed press the button two times, ADD will be displayed. Use the to scroll to DELETE and press button.

  • Page 27: Other Services

    • Three-way Calling • Call Return 1471 *A quarterly fee is chargeable for these services. For more information about these Select Services, call BT on 0800 for residential or for business. If you are not on the BT network, please ask your telecommunications supplier for information on their services.

  • Page 28: And Bases

    Using additional handsets and bases Up to 5 handsets can be registered and operated from any one Synergy 600 base. This allows you to make internal calls between two handsets while a third is making an external call. DECT Each handset can be registered on up to 4 bases.

  • Page 29: De-Registering A Handset

    symbol will flash as the handset tries to locate the base. When the handset locates the base, the handset will be automatically selected and shown on the display. (If the handset does not locate the base, the handset will return to the previous menu. Try to register again by using a different available base number.

  • Page 30: Internal Calls

    If you have multiple handsets registered to the base you can make internal calls between handsets. Press the Enter the number of the handset you wish to call, ( The handset will be called. To end the call, press the You can transfer an external call to another handset registered to the base.

  • Page 31: Three-Way Conversation

    You can talk to one external caller and another internal caller at the same time on your handset. During a call with an external caller: Press the button. Your caller is put on hold and you hear a tone. Enter the number of the handset you want to transfer the call to.

  • Page 32: Help

    This is a standard sign of wear and the battery pack will need replacing. For spare battery pack (Item Code 003267) please contact the Synergy 600 Helpline Shop. In the event that you should need to change or replace the battery pack: Unclip the battery compartment cover.
  • Page 33 Synergy 600 base station power supply is Item Code 872260. Is someone else making changes via another handset? Have you pressed the confirm your selection? If you are still experiencing difficulty, call the Synergy 600 Helpline on button to...

  • Page 34: General Information

    Subject to the terms listed below the guarantee will provide for the repair of, or at BT’s or its agent’s discretion, the option to replace the Synergy 600, or any component thereof, (other than the battery pack), which is identified...

  • Page 35: Technical Information

    Your Synergy 600 has a REN of 1. A total REN of 4 is allowed, if the total REN of 4 is exceeded, the telephones may not ring.
  • Page 36 Press the button to enter the menu. Use the scroll to SETUP and press the button. Use the scroll to DIALMODE and press button. Use the select either TONE or PULSE. Press the button. You will hear a confirmation beep. With some switchboards it may be helpful to dial a pause after entering the switchboard...
  • Page 37 Accessories and spares for your Synergy 600 are listed below. All items are available from the Synergy Helpline on • Adaptor • Battery pack* • Battery cover • User guide • Line cord *Battery packs can also be obtained from The BT Shops.

  • Page 38: Index

    Index ccessories Additional handsets Auto-talk on/off ase settings diagram melody PIN number register to another base reset/default ringer volume select which base station Battery pack charging low warning performance replacing Button beeps on/off aller Display Calls internal make preparatory dialling receive redial secrecy...
  • Page 39 Receive a call Redial Register handset to another base (Ringer Equivalence Number) Reset handset/base Returning your Synergy 600 Ring priority Ringer melody Ringer volume afety information Secrecy Select services Setting up Storing a number Switchboard access code...
  • Page 40 Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC. Declaration of Conformance. Hereby, Suncorp Technologies, declares that this Synergy 600 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The Declaration of Conformance for the Synergy 600 is published on the web site http://www.suncorptech.com/bt...
  • Page 41 British Telecommunications plc in the UK. © British Telecommunications plc 2001. Registered Office: 81 Newgate Street, London EC1A 7AJ. Registered in England No. 1800000. Designed by: The Art & Design Partnership Limited. Printed in China. Synergy 600. Issue 1 (6/01) 6...
