Summary of Contents for BT Studio Twin

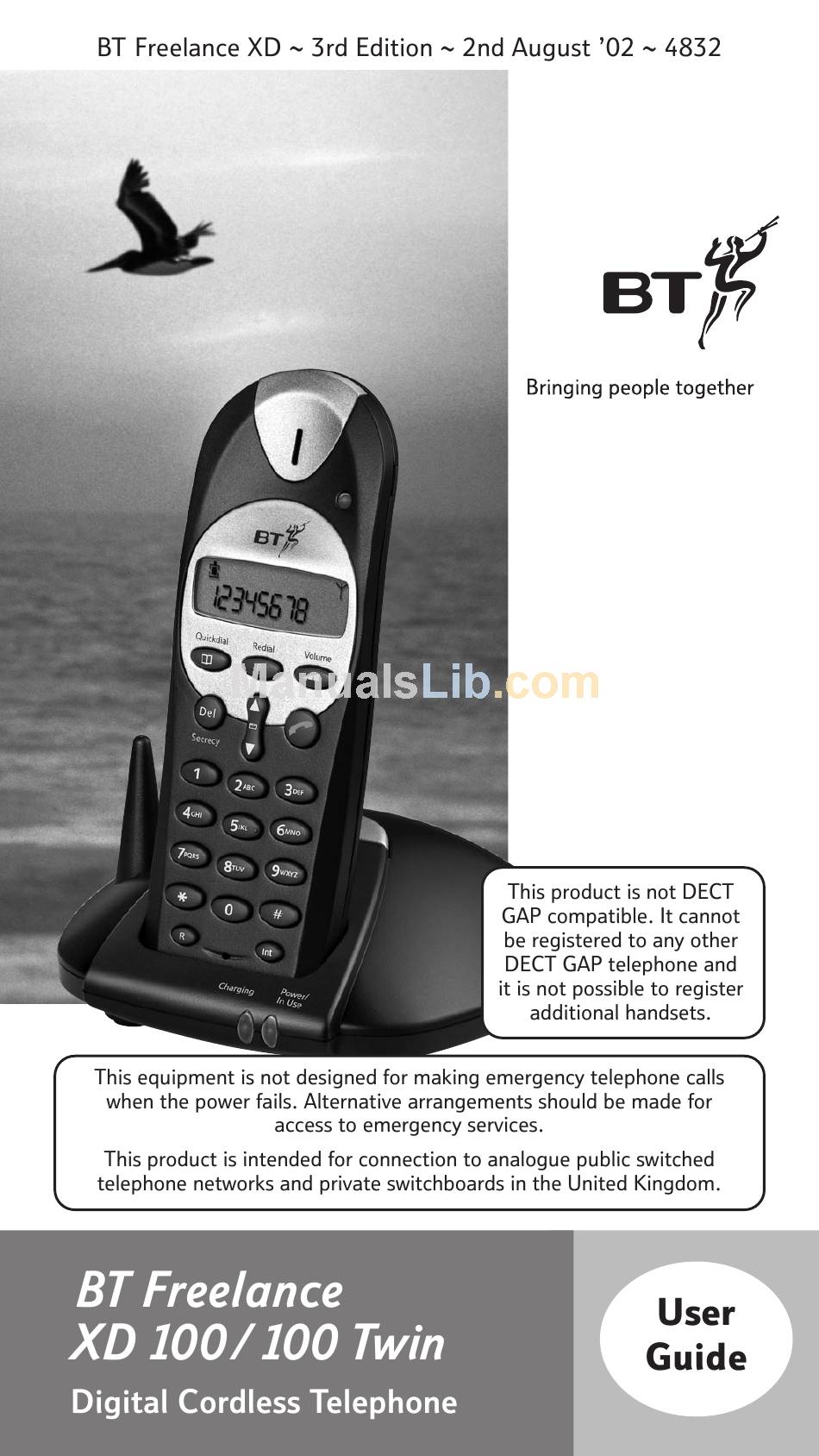

- Page 2 BT Freelance XD ~ 3rd Edition ~ 2nd August ’02 ~ 4832 Please open this page for an ‘At a glance’ guide to your BT Freelance XD 100...
-
Page 3: At A Glance
Use to make, receive and end calls. Keypad Int button Use to make an internal call or to transfer a call to the BT Freelance XD 100 additional handset (feature only available if you have purchased the BT Freelance XD 100 Twin). - Page 4 Red light comes on when the batteries are being recharged. When batteries are fully charged the charging light will remain lit. Red light comes on when the batteries are being recharged. Green light comes on to indicate mains power. Flashes when the line is in use. Use to page a handset(s).
- Page 5 Batteries are charged Batteries are exhausted and require charging Batteries are being charged Switches off when batteries are fully charged Handset is in use Flashes to indicate an external incoming call Steady during an external call Flashes to indicate an internal call Indicates you are dialling or storing a number in the Quickdial memory Secrecy feature is switched on...
- Page 6 Unpacking For your records Making and receiving calls Secrecy Last number redial Paging Quickdial memory Internal calls Transferring calls Guarantee Technical information Switchboard compatibility Switchboard external line access code Setting pauses Recall...
- Page 7 Your BT Freelance XD 100 is designed for ease of use and made to the high standards set by BT. You can expect your BT Freelance XD 100 to provide many years of quality service. Please read the instructions carefully before use and keep this user guide for future reference.
- Page 8 Check that your BT Freelance XD 100 is complete. If anything is missing, please contact your place of purchase immediately. BT Freelance XD 100 handset BT Freelance XD 100 base Power supply for the base (Item code 872260) Telephone line cord...
- Page 9 Place of purchase: Serial number: (on the underside of the base) For guarantee purposes proof of purchase is required, so please keep your receipt. If you have problems with your phone, please call the BT Freelance XD 100 Helpline on...
- Page 10 872260. The item number for the charger is 003313 (only applicable if you have purchased the BT Freelance 100 XD Twin). For the handset use only approved Nickel Metal Hydride (NiMH) rechargeable batteries. Never use other batteries or conventional alkaline batteries.
- Page 11 Simply clean the handset and base with a damp (not wet) cloth, or an anti-static wipe. Never use household polish as this will damage the product. Never use a dry cloth as this may cause a static shock. Do not expose to direct sunlight. The product may heat up when the batteries are being recharged.
- Page 12 Make sure the product is at least 1 metre away from other electrical products to avoid interference. Do not place your BT Freelance XD 100 in the bathroom or other humid areas. Plug the power supply cable into the power socket on your BT Freelance XD 100 base (Item number 872260).
- Page 13 The handset display will show registered to the base. (If you have purchased the BT Freelance XD 100 Twin the additional handset will show -2-. See page 15.) . This means one handset is...
- Page 14 Only use the approved batteries. Using unapproved batteries will invalidate your guarantee and may damage the telephone. Before you use your BT Freelance XD 100 for the first time it is important to have the handset batteries fully charged. Place the handset on the base.
- Page 15 Move closer to the base. The BT Freelance XD 100 and BT Freelance XD 100 Twin have a range of up to 300 metres outdoors and up to 50 metres indoors. This is in ideal conditions. The range will be reduced when there is no clear line of sight between the base and the handset.
- Page 16 Insert the batteries into your BT Freelance XD 100 Twin handset as shown on page 12. The handset display will show -2- as it is already pre-registered as handset 2. Plug the power supply cable into the power socket on your BT Freelance XD 100 charger (Item...
- Page 17 Plug the power supply adaptor into the wall socket. Place the handset onto the charger. The red charging light will come on and the charging icon will be displayed while the batteries are charging. Leave the handset to charge continuously for at least 16 hours to reach full charge.
- Page 18 Your BT Freelance XD 100/Freelance XD 100 Twin is now ready for use. If you experience any difficulties installing or setting up your BT Freelance XD 100, please contact the BT Freelance XD 100 Helpline on...
- Page 19 Press the button. You will hear the dial tone. icon and EXT will be shown on the display and the In use light on the base will flash. Enter the telephone number you want. Enter the telephone number first and then check that it is correct on the display.
- Page 20 The first digit of a telephone number you enter or receive via Caller Display will not be shown on the display. For example the first 0 of 020 8123 4567 will be displayed as 20 8123 4567. Press the icon and EXT will disappear from the display and the In use light will stop flashing.
- Page 21 When on a call you can talk to someone in the same room without your caller hearing. During a call: Press the Press the call. Your handset automatically saves the last number you dialled. A redial number can be no longer than 20 digits. Press the Press the dialled will be shown on the display and dialled...
- Page 22 The handset(s) will ring for 30 seconds. To stop the handset(s) ringing, press any button on the handset. If you have purchased a BT Freelance XD 100 Twin you will need to press any button on the additional handset to stop that handset ringing.
- Page 23 You can store up to 10 of your most frequently used telephone numbers in the Quickdial memory. You can enter numbers up to 20 digits. It is recommended you make a note of the numbers you store in the Quickdial memory. Press the show the Press the keypad number between...
- Page 24 Press the Press the Enter the location number number is stored. The telephone number will be shown on the display and dialled. If you hear a warning beep when trying to dial a number in the quickdial memory it means there is no telephone number stored under that location number.
- Page 25 With some incoming calls the telephone number of the caller is not available and cannot therefore be displayed. In this case, your BT Freelance XD 100 will show CALL instead of the caller's telephone number. The word CALL will not be stored in the calls list.
- Page 26 Press the button to enter the Calls list. will be displayed. The most recent caller's telephone number will be displayed. Use the button to scroll to the next number in the list and use the button to scroll back to the previous number. To exit the Calls list at any time press the button.
- Page 27 You can only adjust the earpiece volume during a call. There are 3 earpiece volume levels to choose from: HIGH, LOW and MEDIUM. During a call: Press the required volume level. The volume will change from LOW, MEDIUM, HIGH and then repeat the sequence again, LOW, MEDIUM, HIGH.
- Page 28 DECT telephones. However, if you have purchased the BT Freelance XD 100 Twin you will have the BT Freelance XD 100 additional handset. Please note that this is the only handset that can be used with the main BT Freelance XD 100 base.
- Page 29 You can transfer an external call to the other BT Freelance XD 100 Twin handset. During an external call: Press the The other BT Freelance XD 100 handset will ring. The other user should press the answer the call. You can now talk to each other.
- Page 30 Sometimes your BT Freelance XD 100 can interfere with other electrical equipment if it is placed too close. It is recommended that you place your BT Freelance XD 100 at least one metre away from such appliances to avoid any risk of interference.
- Page 31 For spare batteries please call the BT Freelance 100 XD Helpline on BT accepts no responsibility for damage caused to your BT Freelance XD 100 by using any other type of batteries than those recommended on page 9.
- Page 32 Subject to the terms listed below the guarantee will provide for the repair of, or at BT’s or its agent’s discretion, the option to replace the BT Freelance XD 100, or any component thereof, (other than the batteries), which is identified as faulty or below standard, or as a result of inferior workmanship or materials.
- Page 33 Number (REN), which is used to calculate the number of items which may be connected to any one telephone line. Your BT Freelance XD 100 and Freelance XD 100 Twin has a REN of 1. A total REN of 4 is allowed, if the total REN of 4 is exceeded, the telephones may not ring.
- Page 34 (see page 22) and where the pause is needed, press the some switchboards, ie. to transfer calls or for some BT Select Services or those services available via your network provider. It is only available when a call is in progress.
- Page 35 t a glance atteries charging insert low warning performance replacing aller Display Calls external internal make receive redial secrecy transfer Calls list delete a number dial a number view Charge handset elete Calls list numbers quickdial numbers Display icons arpiece volume uarantee Helpline nternal call...
- Page 36 Equipment Directive 1999/5/EC. Hereby, Suncorp Technologies, declares that this BT Freelance XD is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The Declaration of Conformance for the BT Freelance XD is published on the website http://www.suncorptech.com/bt...
- Page 37 Nothing in this publication forms any part of any contract. © British Telecommunications plc 2002. Registered Office: 81 Newgate Street, London EC1A 7AJ. Registered in England No. 1800000. BT Freelance XD 100 Issue 1 (07/02) 3 Designed by The Art & Design Partnership Limited.
