IDEAL ND 3511-1 Instructions Manual

Grade multimeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

#61-320
320 Series
Grade Multimeter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ND 3511-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDEAL ND 3511-1

Summary of Contents for IDEAL ND 3511-1

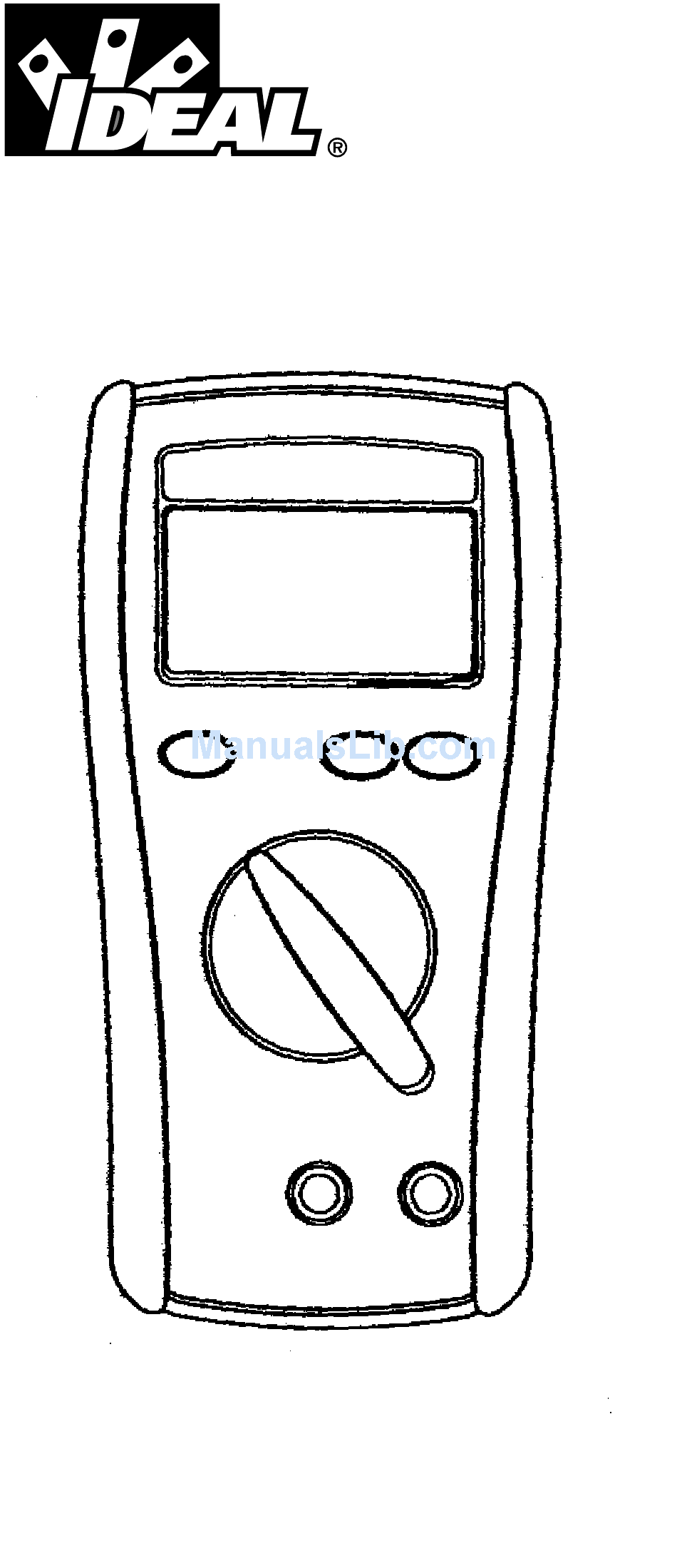

  • Page 1 #61-320 320 Series Grade Multimeter...
  • Page 2 WARNING! 1. DO NOT UNDER ANY CIRCUMSTANCES EXCEED THESE RATINGS: • Voltage is not to exceed 1000 Volts. • Resistance, Capacitance, Logic and Continuity functions are not to be performed on circuits capable of delivering greater than 600 Volts. • Current measurements are not to be performed on circuits capable of delivering greater than 500 Volts 2.
  • Page 3 1. Min/Max Switch • Pressing this button once results in the displayed maxi- mum value of the current reading. • Pressing the min/max button once more results in the displayed minimum value of the current reading. • If pressed a third time “Max Min” will flash on the LCD indicating that the minimum and maximum value are being recorded while the current reading is displayed.
  • Page 4 2. Range Button • Pressing the range button selects the manual ranging mode. • When the range button is pressed RANGE will appear in the upper left of the LCD display. • WHen in the manual range mode, pressing the range button changes the measurement range.
  • Page 5 Overload Protection Function Overload Protection VAC & VDC 1000V µA input: 600V RMS 16A/500V Ohms ( ) 600VAC/600VDC Diode 600VAC/600VDC Continuity 600VAC/600VDC Unit of Measure Multipliers For your reference, the following symbols are often used to make measurement easier: Symbol Verbal Multiplier mega...

  • Page 6: Range Resolution

    True RMS AC Volt Circuit Connection: Range Resolution Accuracy Max. Display 600mV 0.1mV 600.0 ±(0.9% reading 6.000 10mV + 5 digits) 60.00 600V 100mV 600.0 750V AC Conversion Type: Conversions are average sensing RMS calibrated. Input Impedance: 10M less than 100 pF. Frequency Response: 40 Hz ~ 500 Hz To Measure AC Voltage: 1.
  • Page 7 DC Volts Circuit Connection: Range Resolution Accuracy Max. Display 600mV 100µV 600.0 ±(0.5% reading 6.000 10mV + 2 digits) 60.00 600V 100mV 600.0 1000V 1000 Input Impedance: 10M (over 1000M in 600mV range) To Measure DC Voltage: 1. Plug the black test lead into the COM port and the red test lead into the Hz V µA port.
  • Page 8 DC Current Circuit Connection: Range Resolution Accuracy Voltage Burden 600µA 0.1µA ±(1.0% reading < 4mV / µA 600.0 6000µA 1µA + 2 digits) 6.000 Overload Protection: µA input: 600V RMS To Measure DC Current: 1. Plug the black test lead into the COM port and the red test lead into the Hz V µA port.

  • Page 9: Circuit Connection

    Frequency/RPM Circuit Connection: Range Resolution Sensitivity Accuracy 6000Hz 60KHz 10Hz 100mV RMS Frequency: 600KHz 100Hz 0.01% ±1 digit 6MHz 1KHz 250mV RMS 60MHz 10KHz 1V RMS Overload Protection: 600V rms *Less than 20Hz the sensitivity is 1.5V To Measure Frequency: 1.
  • Page 10 Resistance (Ohms) Circuit Connection: Range Resolution Accuracy Max. Display 600.0 ±(0.7% reading 6.000 + 2 digits) 60.00 600K 600.0 6.000 60.00 Open Circuit Voltage: -1.3V approx. To Measure Resistance: 1. Turn the power off to the circuit or device that is to be measured and discharge all capacitors before attempting a measurement.
  • Page 11 Multiplication Guide for Ohms ( ): 400 = Meter indicates actual resistance = Multiply meter display reading by 1,000 to acquire actual resistance. 40k = Multiply meter display reading by 1,000 to acquire actual resistance. 400k = Multiply meter display reading by 1,000 to acquire actual resistance.
  • Page 12 Determining Resistor Values: To determine the value of a resistor, use the color bands on the resistor and the table on the following page. Resistor Color Code Table Tolerance Color Digit Digit Multiplier (Percentage) Black Brown Orange 1,000 Yellow 10,000 Green 100,000 Blue...
  • Page 13 Diode Testing Function Resolution Accuracy Max.Test Max.Open Current Circuit Voltage +(1.5% +5)* 1.5mA * For 0.4V to 0.8V. Overload Protection: 600V rms max Diode Check: To ensure a proper functioning diode, the meter will develop a voltage across the component from a test current. The diode test function allows for measurements of forward voltage drops across diode and transistor junctions.
  • Page 14 Capacitance Range Resolution Accuracy 60nF 10pF 600nF 100pF ±(1.9% rading 6µF + 8 digits) 60µF 10nF 600µF 100nF 1µF Overload Protection: 600V rms To Measure Capacitance: 1. Plug the black test lead into the COM port and the red test lead into the Hz V µA port.
  • Page 15 Continuity Check Circuit Connection: To Verify Continuity: A continuity test ensures that all circuit connections are intact. 1. Plug the black test lead into the COM port and the red test lead into the Hz V µA port. 2. Set the rotary switch to the position.
  • Page 16 Accessories For AC Current Clamp (61-451): 1. Plug the black test lead of the clamp adapter handle into the COM port and the red test lead into the Hz V µA port. ˜ 2. Set the rotary switch to the V position. 3.
  • Page 17 General Specifications LCD Display: 6000 count maximum reading Polarity Indication: Automatic, negative indicated, positive implied Overrange Indication: “OL” or “-OL” Low Battery Indication: “ ” when the battery voltage drops below operating voltage Size (WxHxD): 82mm x 164mm x 44mm (without holster) Sampling: 1 times/sec LCD Display,...

  • Page 18: Maintenance

    Maintenance Warning To avoid electrical shock, remove test lead before opening the cover. Repairs or servicing not covered in this manual should only be performed by qualified personnel. Battery Installation or Replacement: The #61-320 is powered by two 1.5V batteries. 1.

  • Page 19: Fuse Replacement

    Fuse Replacement 1. Remove the test leads from the front terminals and turn the meter off. 2. Remove the screw from the battery cover and lift to remove. 3. Remove the screws from the bottom case and the inside of the battery cover and lift the case bottom until it unsnaps from the case top.
  • Page 20 Any implied warranties arising out of the sale of an IDEAL product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above.

This manual is also suitable for:

320 series61-320
