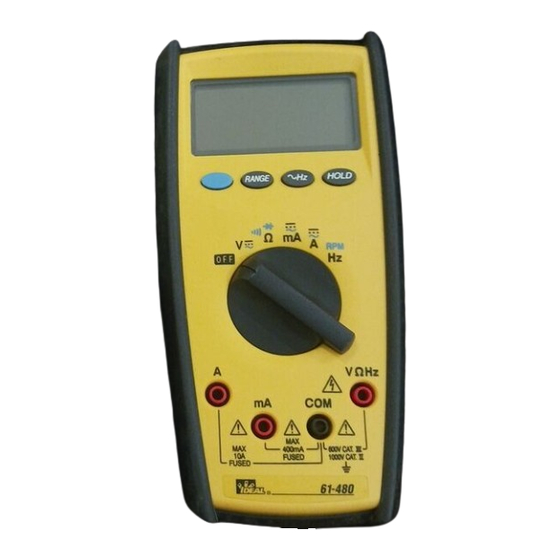

480 Platinum Pro Series
Commercial Contractor
Grade Multimeter
APO RPM
Hz
#61-480
Symbols in this Manual
This symbol indicates where cautionary or other
information is found in the manual.
Fuse
Battery

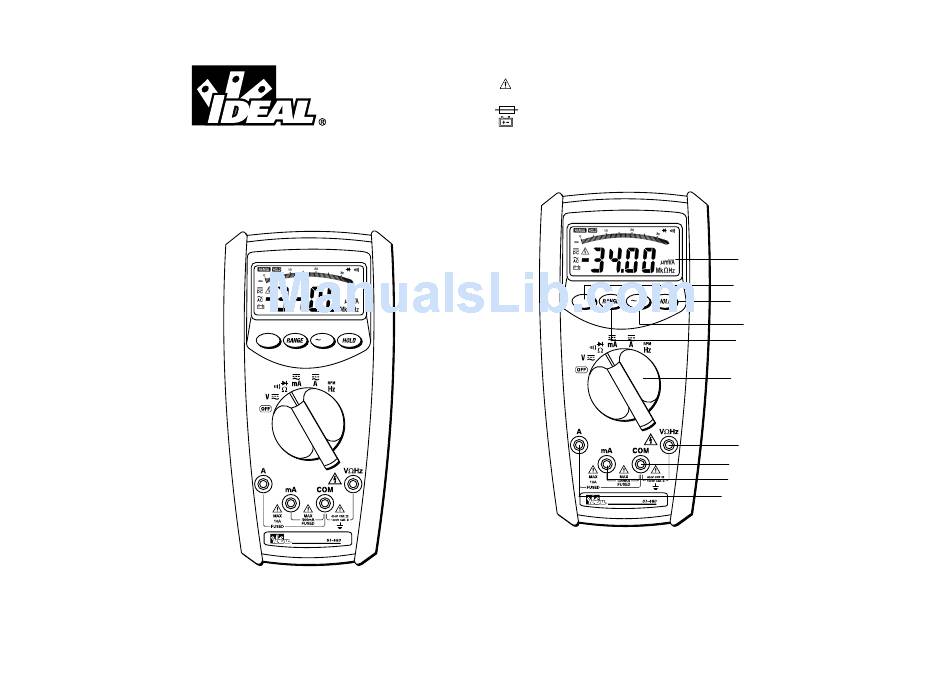

Refer to Figure 1 and to the following numbered steps to
familiarize yourself with the meter's front panel controls
and connectors.
APO RPM
1
8
Hz
9
10
7
2
4
3
5
6
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IDEAL ND 2350-1
Summary of Contents for IDEAL ND 2350-1
- Page 1 #61-480 Symbols in this Manual This symbol indicates where cautionary or other information is found in the manual. Fuse Battery Refer to Figure 1 and to the following numbered steps to 480 Platinum Pro Series familiarize yourself with the meter’s front panel controls and connectors.
- Page 2 1. Digital Display - The digital display has 3400 counts WARNING! LCD readout with 70 segments analog bar graph, auto 1. DO NOT UNDER ANY CIRCUMSTANCES EXCEED THESE polarity, decimal point, “ “ AC, DC RANGE, HOLD RATINGS: APO and unit annunciators. •...
- Page 3 Overload Protection AC Volt Circuit Connection: Function Overload Protection VAC & VDC 1000V AAC & ADC 1A/500V APO RPM 10A/500V Ohms ( ) 600VAC/600VDC Diode 600VAC/600VDC Continuity 600VAC/600VDC Unit of Measure Multipliers For your reference, the following symbols are often used to make measurement easier: Symbol Verbal...
- Page 4 DC Volts AC Current Circuit Connection: Circuit Connection: APO RPM APO RPM Range Resolution Accuracy Voltage Range Resolution Max Display Accuracy Display Burden 300mV 100µV 300.0 ±(0.25% +1)* 30mA 10µA 30.00 ±(2.0% +5)* 200V max 3.000 300mA 0.1mA 300.0 2Vmax 10mV 30.00 10mA...
- Page 5 DC Current Frequency/RPM Circuit Connection: Circuit Connection: APO RPM APO RPM Range Resolution Accuracy Voltage Range Resolution Sensitivity Accuracy Display Burden Display 30mA 10µA 30.00 ±(1.5% +2) 200Vmax 3kHz/30kRPM 1Hz/30RPM 3.000/30.00 100mV* Frequency: 300mA 0.1mA 300.0 ±(1.5% +2) 2Vmax 30kHz/300kRPM 10Hz/300RPM 30.00/300.0 0.01%±1...
- Page 6 Resistance (Ohms) Range Guide for Ohms ( ): 300 = Meter indicates actual resistance = Multiply meter display reading by 1,000 to Circuit Connection: acquire actual resistance. 30k = Multiply meter display reading by 1,000 to APO RPM acquire actual resistance. 300k = Multiply meter display reading by 1,000 to acquire actual resistance.
- Page 7 Resistor Color Code Table Diode Testing Circuit Connection: Tolerance Color Digit Digit Multiplier (Percentage) Black APO RPM Brown Orange 1,000 Yellow 10,000 Green 100,000 Blue 1,000,000 Violet 10,000,000 Gray 100,000,000 White 1,000,000,000 Gold +/- 5% Silver +/- 10% No Color +/- 20% Function Resolution Accuracy Max.Test Max.Open Example:...
-
Page 8: Continuity Check
Accessories Continuity Check Circuit Connection: APO RPM APO RPM For AC Current Clamp (61-450): To Verify Continuity: 1. Plug the black test lead into the COM port and the red test A continuity test ensures that all circuit connections are intact. lead into the V Hz port. -
Page 9: Maintenance
General Specifications Battery Installation or Replacement: The #61-480 is powered by two 1.5V batteries. LCD Display: 3400 count maximum reading 1. Remove the test leads from the front terminals and turn the Bar Graph Display: 70 segment analog bar graph meter off. -
Page 10: Lifetime Limited Warranty
Any implied warranties arising out of the sale of an IDEAL product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above.
