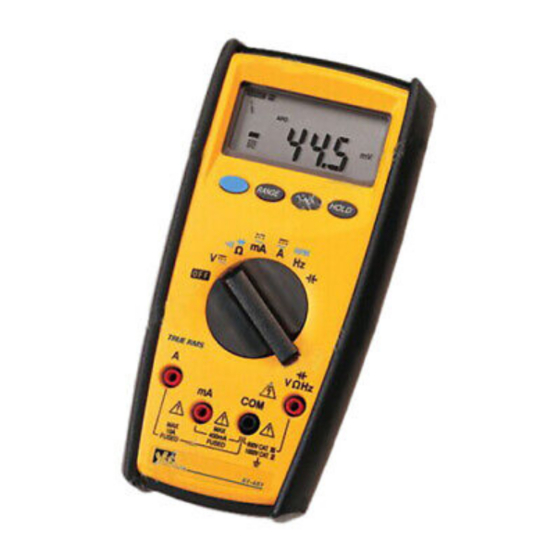

480 Platinum Pro Series
Commercial Contractor
Grade Multimeter
Hz
True RMS
#61-481
Symbols in this Manual
This symbol indicates where cautionary or other
information is found in the manual.
Fuse
Battery

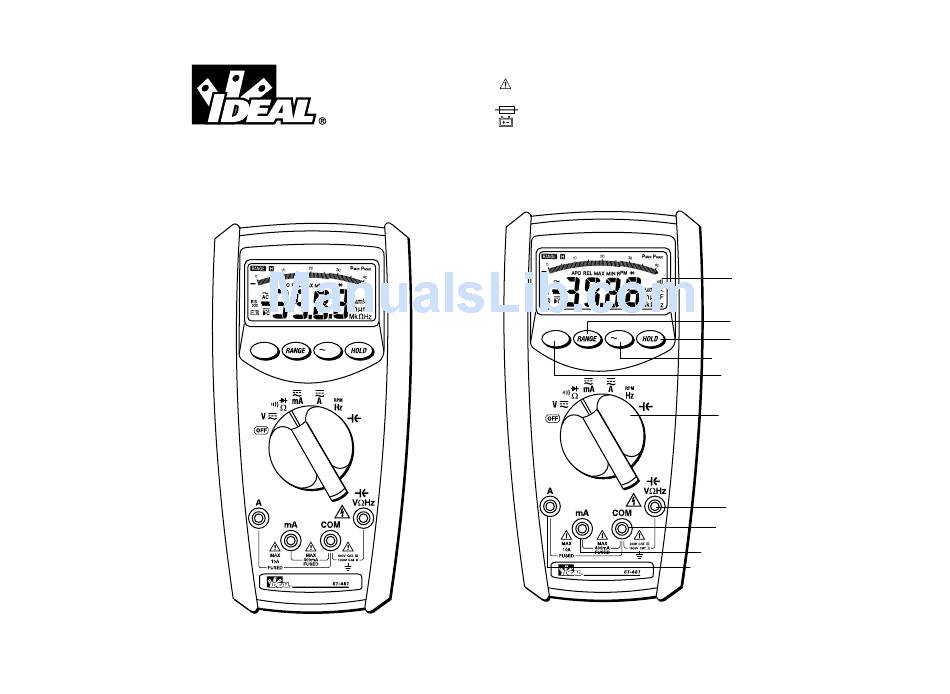

Refer to Figure 1 and to the following numbered steps to
familiarize yourself with the meter's front panel controls
and connectors.
True RMS
1
7
9
Hz
10
8
2
4
3
5
6
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IDEAL ND 2365-1
Summary of Contents for IDEAL ND 2365-1
- Page 1 #61-481 Symbols in this Manual This symbol indicates where cautionary or other information is found in the manual. Fuse Battery Refer to Figure 1 and to the following numbered steps to 480 Platinum Pro Series familiarize yourself with the meter’s front panel controls and connectors.
- Page 2 1. Digital Display – The digital display has 4000 counts WARNING! LCD readout with 82 segments analog bar graph, auto 1. DO NOT UNDER ANY CIRCUMSTANCES EXCEED THESE polarity, decimal point, “ ” AC, DC RANGE, RATINGS: APO and unit annunciators. •...
- Page 3 Overload Protection True RMS AC Volt Circuit Connection: Function Overload Protection VAC & VDC 1000V AAC & ADC 1A/500V 16A/500V Ohms ( ) 600VAC/600VDC Diode 600VAC/600VDC Continuity 600VAC/600VDC Unit of Measure Multipliers True RMS For your reference, the following symbols are often used to make measurement easier: Symbol Verbal...
- Page 4 DC Volts True RMS AC Current Circuit Connection: Circuit Connection: True RMS True RMS Range Resolution Accuracy Voltage Range Resolution Max Display Accuracy Display Burden 400mV 100µV 400.0 ±(0.25% +5) 40mA 10µA 40.00 ±(2.0% +5) 200mV max 4.000 ±(0.4% +1) 400mA 0.1mA 400.0...
- Page 5 DC Current Frequency/RPM Circuit Connection: Circuit Connection: True RMS True RMS Range Resolution Accuracy Voltage Range Resolution Sensitivity Accuracy Display Burden 40mA 10µA 40.00 ±(0.6% +2) 200mVmax 4.0KHz/40KRPM 1Hz/300RPM 100mV rms* Frequency: 40KHz/400KRPM 10Hz/300RPM 0.01% ±1 digit 400mA 0.1mA 400.0 ±(0.7% +2) 2Vmax 400KHz/4MRPM...
- Page 6 Frequency with Hz Switch Resistance (Ohms) ˜ Circuit Connection: True RMS True RMS Range Resolution MaxDisplay Accuracy 400.0 ±(0.7% +3) Function Range Sensitivity Accuracy 4.000 ±(0.4% +3) AC Voltage 400mV 40mV rms 0.01% 40.00 0.2V rms reading 400k 400.0 2V rms +5 digits 4.000 ±(0.6%+3)
- Page 7 Range Guide for Ohms ( ): Resistor Color Code Table 300 = Meter indicates actual resistance = Multiply meter display reading by 1,000 to Tolerance acquire actual resistance. Color Digit Digit Multiplier (Percentage) 30k = Multiply meter display reading by 1,000 to Black acquire actual resistance.
- Page 8 Diode Testing Capacitance Circuit Connection: True RMS True RMS Function Resolution Accuracy Max. Test Max. Open Current Circuit Range Resolution Max Display Accuracy Voltage 4.000 ±(3.% reading +(1.5% +5)* 1.5mA 40nF 10pF 40.00 +10 digits) * For 0.4V to 0.8V. 400nF 100pF 400.0...
- Page 9 Continuity Check General Specifications Circuit Connection: LCD Display: 4000 count maximum reading Bar Graph Display: 82 segment analog bar graph Polarity Indication: Automatic, negative indicated, positive implied Overrange Indication: “OL” or “-OL” Low Battery Indication: “ ” when the battery voltage drops below operating voltage Size (WxHxD):...
- Page 10 Any implied warranties arising out of the sale of an IDEAL product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above.
