Kramer PT-4iREX Quick Start Manual

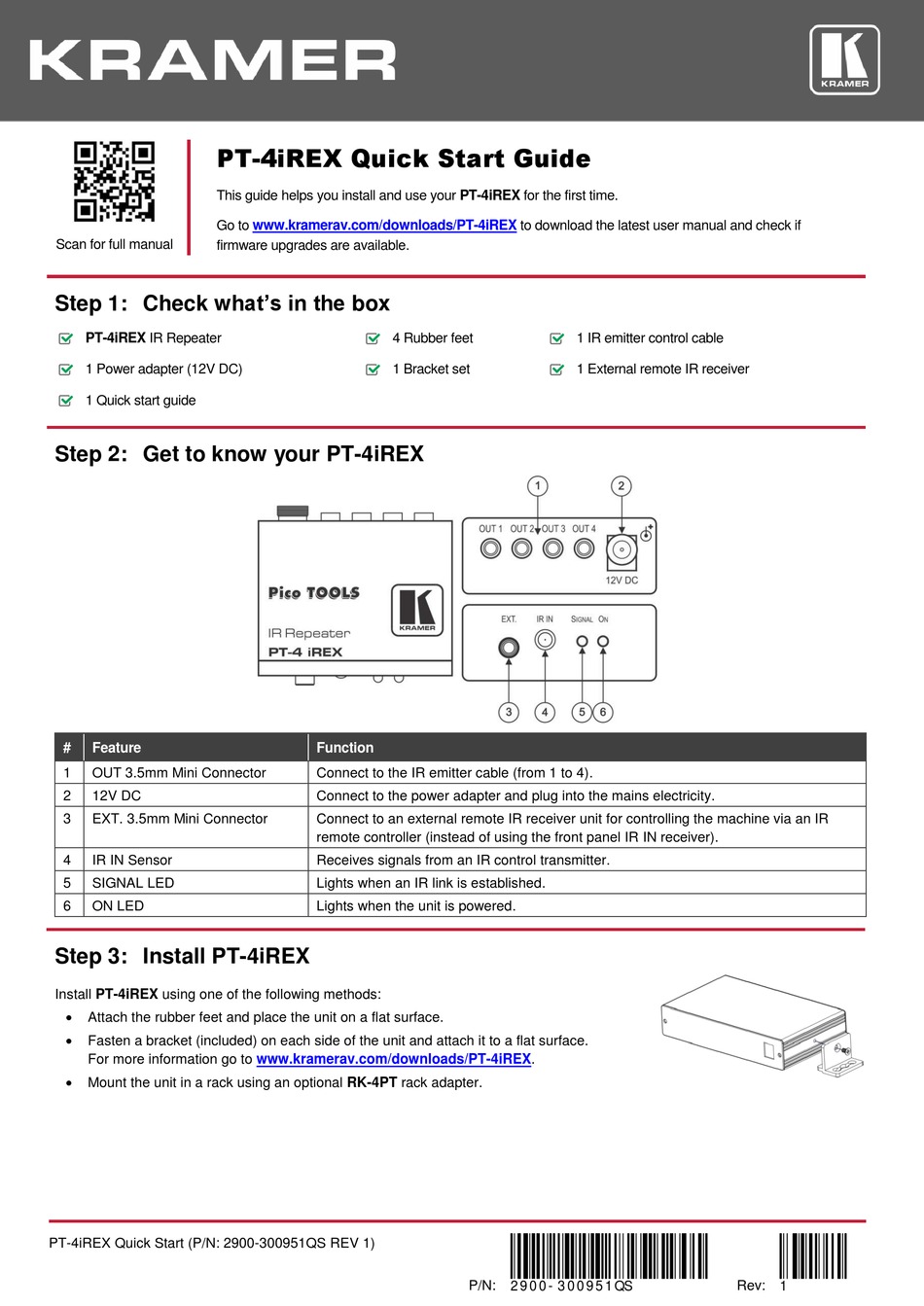

PT-4iREX Quick Start Guide
This guide helps you install and use your PT-4iREX for the first time.
Go to
Scan for full manual
firmware upgrades are available.
Step 1: Check what's in the box
PT-4iREX IR Repeater
1 Power adapter (12V DC)
1 Quick start guide

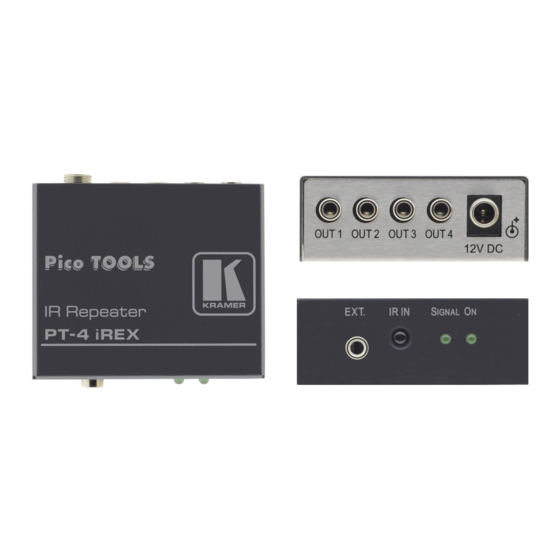

Step 2: Get to know your PT-4iREX

# Feature
1 OUT 3.5mm Mini Connector
2 12V DC
3 EXT. 3.5mm Mini Connector
4 IR IN Sensor
5 SIGNAL LED
6 ON LED

Step 3: Install PT-4iREX

Install PT-4iREX using one of the following methods:

Attach the rubber feet and place the unit on a flat surface.

Fasten a bracket (included) on each side of the unit and attach it to a flat surface.
For more information go to www.kramerav.com/downloads/PT-4iREX.

Mount the unit in a rack using an optional RK-4PT rack adapter.
PT-4iREX Quick Start (P/N: 2900-300951QS REV 1)
www.kramerav.com/downloads/PT-4iREX
4 Rubber feet
1 Bracket set
Function
Connect to the IR emitter cable (from 1 to 4).
Connect to the power adapter and plug into the mains electricity.
Connect to an external remote IR receiver unit for controlling the machine via an IR
remote controller (instead of using the front panel IR IN receiver).
Receives signals from an IR control transmitter.
Lights when an IR link is established.
Lights when the unit is powered.
to download the latest user manual and check if
1 IR emitter control cable
1 External remote IR receiver
P/N: 2 9 0 0 - 3 0 0 9 5 1 QS Rev: 1
