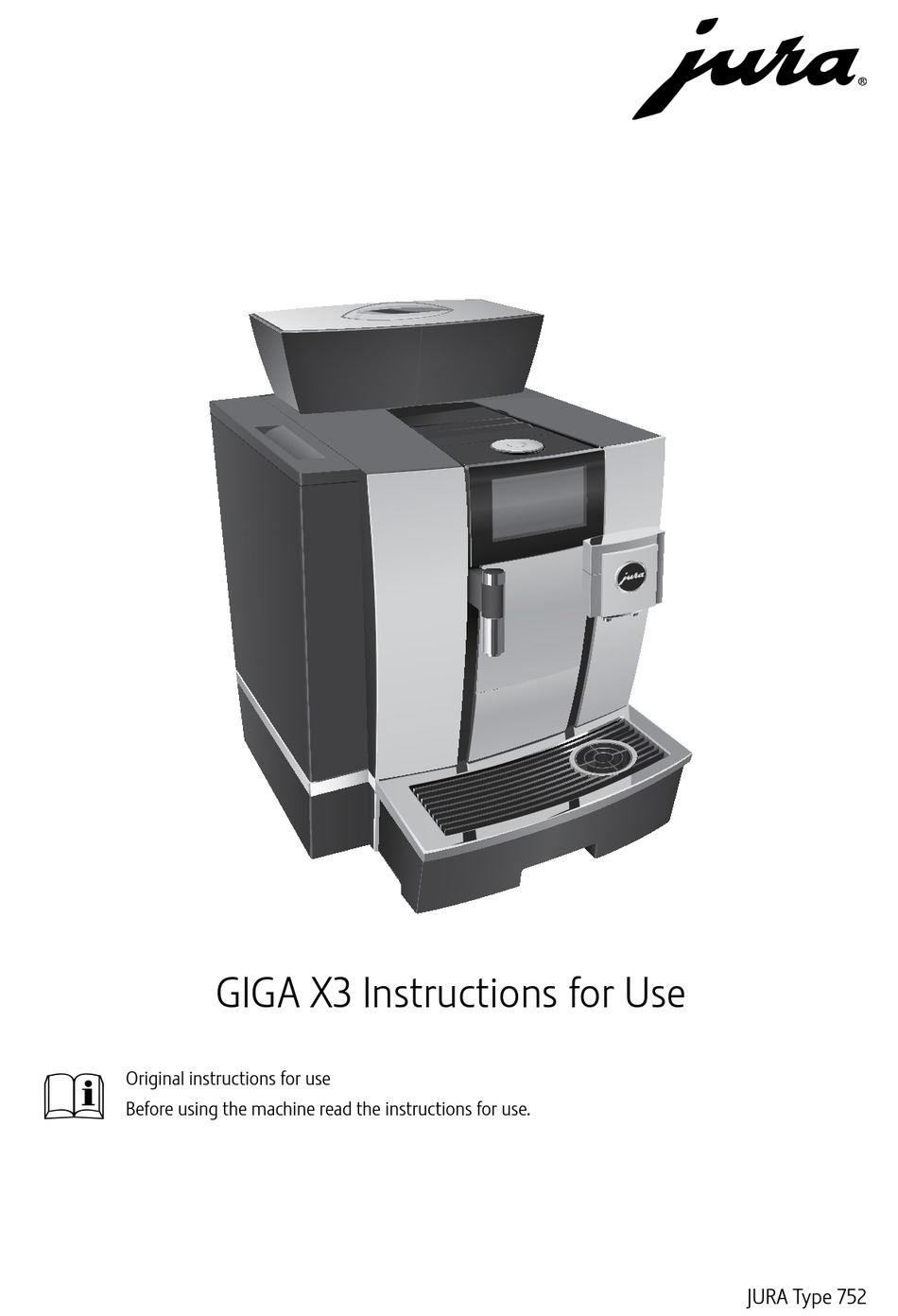

GIGA X3 Instructions for Use
Original instructions for use
K
E
Before using the machine read the instructions for use.
JURA Type 752

Advertisement

Table of Contents
loading

Related Manuals for Jura GIGA X3

Summary of Contents for Jura GIGA X3

  • Page 1 GIGA X3 Instructions for Use Original instructions for use Before using the machine read the instructions for use. JURA Type 752...

  • Page 2: Table Of Contents

    Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Operation with touchscreen display and Rotary Switch ...............10 Setting up the machine ..........................11 Filling the bean container ..........................11 Determining the water hardness .......................11...
  • Page 3 8 Transport and environmentally friendly disposal Transport / Emptying the system ......................49 Disposal .................................49 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings Always take note of any information marked with the words CAUTION or J WARNING WARNING and a warning sign.

  • Page 4: Control Elements

    Control elements Control elements Bean container with aroma preservation Filler funnel for ground coffee cover Ventilation slats (Venti Ports) Water tank cover Storage compartment cover Measuring spoon for ground coffee Water tank Power switch (back of the machine) Height-adjustable dual spout Plug-in mains cable (back of the machine) Height-adjustable hot-water spout Coffee grounds container...
  • Page 5 On/Off button Q (under cover) Touchscreen display Back of the machine Service cover (open by pressing with your Sliding catch finger) Service socket with JURA Smart Connect Locking device Accessories Container for milk system cleaning Spanner with hexagonal hole (for milk system)

  • Page 6: Important Information

    JURA service. If the mains cable of this machine is damaged it must be replaced with a special mains cable, which is available directly from JURA or from authorised JURA service centres.
  • Page 7 The machine contains live parts. If opened, there is a danger of potentially fatal injury. Repairs may only be carried out by authorised JURA service centres, using original spare parts and accessories. To completely and safely disconnect the...
  • Page 8 Please only use original JURA maintenance products. Use of products that are not explic- itly recommended by JURA could damage the machine. Do not use any coffee beans treated with addi- tives or caramelised coffee beans.
  • Page 9 Important information Children may not clean or service the machine unless supervised by a responsible person. Do not allow children to play with the machine. Keep children under the age of 8 away from the machine, or supervise them constantly. Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely.

  • Page 10: Preparing And Using For The First Time

    JURA on the Internet Visit us on the Internet. You can download short operating instruc- tions for your machine from the JURA website (jura.com). You will also find interesting and up-to-date information on your GIGA and on every aspect of coffee.

  • Page 11: Setting Up The Machine

    1 Preparing and using for the first time Setting up the machine When setting up your GIGA, please note the following: Place the GIGA on a horizontal surface that is not sensitive to water (minimum height of 80 cm). Choose a spot for your GIGA which protects the machine against overheating.

  • Page 12: First-Time Use

    1 Preparing and using for the first time First-time use WARNING If the machine is operated with a defective mains cable, there is a danger of potentially fatal electric shock. T  Never use a machine which is damaged or has a defective mains cable.
  • Page 13 1 Preparing and using for the first time T  Touch ‘Save’. ‘Saved’ ‘Water hardness’ E If you do not know the hardness of your water, you must find this out first (see Chapter 1 ‘Preparing and using for the first time –...

  • Page 14: Connecting Milk

    T  Connect the other end of the milk pipe to a milk cooler. E Your GIGA is equipped with the HP3 milk system. Settings by the service Your authorised JURA service technician can change various set- technician tings, e.g.: Codes: Four codes can be assigned. For each code, you can define which programme items are available or disabled.

  • Page 15: Connect Accessory (With Wireless Connection)

    1 Preparing and using for the first time Connect accessory (with Your GIGA is equipped with the JURA Smart Connect. This allows you wireless connection) to connect the machine wirelessly to a compatible JURA accessory (e.g. the Cool Control milk cooler).

  • Page 16: Preparation

    – and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –...
  • Page 17 2 Preparation Using the product selector view (Rotary Selection): Only some of the products you can prepare are shown on the start screen. As soon as you turn the Rotary Switch, more products are displayed in a product selector view. Turn the Rotary Switch or move your finger across the display to bring the desired product into focus.

  • Page 18: Preparing Speciality Coffees

    2 Preparation Preparing speciality Example: Proceed as follows to prepare one coffee. coffees Precondition: The start screen is displayed. T  Place a cup under the dual spout. T  Touch ‘Coffee’. Preparation starts. The preset amount of water for coffee flows into the cup. Preparation stops automatically.

  • Page 19: Caffè Barista And Lungo Barista

    Products with a bypass amount of water setting are marked with a red speedometer symbol in the start screen and in the product selector. E Your authorised JURA service technician can set the machine so that the red speedometer symbol is not displayed next to these ‘speed speciality coffees’.

  • Page 20: Hot Water

    2 Preparation The desired speciality coffee must be prepared within approx- imately one minute after filling with the ground coffee. Oth- erwise the GIGA stops the operation and is once more ready for use. All speciality coffees with ground coffee are always prepared following the same model.
  • Page 21 2 Preparation T  Place a cup under the hot-water spout. T  Turn the Rotary Switch to view the product selector. T  Move your finger across the display until ‘Hot water for black tea’ is in focus. T  Touch ‘Hot water for black tea’.

  • Page 22: Daily Operation

    T  Place a receptacle under the dual spout. T  Open the cover of the On/Off button. T  Press the On/Off button Q to switch the GIGA on. ‘Welcome to JURA’ ‘Machine is heating’ ‘Machine is rinsing’, the system is rinsed. The rinse stops...

  • Page 23: Daily Maintenance

    3 Daily operation Daily maintenance To ensure that you get many years of reliable service out of your GIGA and to guarantee the optimum coffee quality, the machine requires daily maintenance. T  Pull out the drip tray. T  Empty the coffee grounds container and the drip tray. Rinse them both with warm water.

  • Page 24: Switching Off The Machine

    3 Daily operation Clean the inside of the water tank, e.g. with a brush. Further information about the water tank is provided in these instruc- tions for use (see Chapter 5 ‘Maintenance – Descaling the water tank’). Traces of milk and coffee may stick to the top and bottom of the cup grille.

  • Page 25: Permanent Settings In Programming Mode

    T You can set the water hardness of the water used. ‘Choose language’ T Select your language. ‘Connect accessory’, T Connect the GIGA wirelessly to a JURA ‘Disconnect accessories’ accessory or disconnect the connection (Only displayed if the JURA again. Smart Connect is being used.)

  • Page 26: Product Settings

    4 Permanent settings in programming mode Programme item Sub-item Explanation ‘Empty system’ T Empty the system to protect it from frost during transport. ‘Version’ Software version ‘Product settings’ T Select your settings for speciality coffees (‘3/4’) and hot water. ‘Information’ ‘Product counter’, T Keep track of all products prepared and...
  • Page 27 4 Permanent settings in programming mode Product Coffee Amount More settings strength Pot of coffee 10 levels Water: 15 ml – 290 ml Number of strokes (1–5), temperature Bypass water: (low, normal, high), product name, 0 ml – 580 ml delete/replace/copy product Cappuccino 10 levels Water: 15 ml – 290 ml Milk temperature, temperature (low, Bypass water: normal, high), product name, delete/ 0 ml – 580 ml...

  • Page 28: Setting The Consistency Of Grind

    4 Permanent settings in programming mode T  Touch ‘Espresso’ for approximately 2 seconds until the list of possible settings is displayed. T  Touch ‘Product settings’. ‘Espresso’ T  Move your finger across the display until ‘Coffee strength’ displayed in the centre. T ...

  • Page 29: Time And Date

    4 Permanent settings in programming mode You can set the automatic switch-off to 15 minutes, 30  minutes, 1–15 hours, or inactive. Precondition: The start screen is displayed. T  Touch ‘ P ’. ‘Maintenance status’ T  Turn the Rotary Switch until ‘Machine settings’ is displayed. T ...

  • Page 30: Timer

    4 Permanent settings in programming mode T  Touch ‘Back’ the number of times needed to display the start screen again. Timer In the programme item ‘Machine settings’ / ‘Timer’ you can set a switch-on and switch-off time for every weekday. E For the time format, you can choose between ‘24  hrs’ and ‘AM / PM’...

  • Page 31: Unit For Amount Of Water / Time Format

    4 Permanent settings in programming mode T  Touch ‘ P ’. ‘Maintenance status’ T  Turn the Rotary Switch until ‘Machine settings’ is displayed. T  Press the Rotary Switch. ‘Switch off after’ T  Turn the Rotary Switch until ‘Water hardness’ is displayed. T  Press the Rotary Switch. ‘Water hardness’...

  • Page 32: Energy-Saving Mode

    4 Permanent settings in programming mode Energy-saving mode In the programme item ‘Machine settings’ ‘Save energy’ you can set an energy-saving mode: ‘1’ Soon after the last preparation, the GIGA stops heating up. After approximately 5 minutes, the ‘ESM’ symbol (Energy Save Mode, E.S.M.

  • Page 33: Language

    4 Permanent settings in programming mode Example:  Proceed as follows to prevent one-off settings being made during preparation. Precondition: The start screen is displayed. T  Touch ‘ P ’. ‘Maintenance status’ T  Turn the Rotary Switch until ‘Machine settings’ is displayed. T  Press the Rotary Switch. ‘Switch off after’...

  • Page 34: Display Brightness

    4 Permanent settings in programming mode T  Touch ‘Save’. ‘Gespeichert’ appears briefly on the display. ‘Sprachauswahl’ T  Touch ‘Zurück’ the number of times needed to display the start screen again. Display brightness In the programme item ‘Machine settings’ / ‘Display’ you can set the display brightness (as a percentage).

  • Page 35: Querying Information

    4 Permanent settings in programming mode T  Press the Rotary Switch. ‘Factory setting’ ‘Reset the machine to the factory set- tings?’ T  Touch ‘Yes’. ‘Saved’ appears briefly on the display. Your GIGA is switched off. Querying information In the programme item ‘Information’...

  • Page 36: Maintenance

    5 Maintenance 5 Maintenance Your GIGA has the following integrated maintenance programmes: Rinsing the machine (‘Rinse’) Rinsing the milk system in the dual spout Cleaning the milk system in the dual spout (‘Clean the milk system’) Changing the filter (‘Change the filter’) (only if filter is activated) Cleaning the machine (‘Clean’)

  • Page 37: Cleaning The Milk System

    T  Use only original JURA maintenance products. E JURA milk system cleaner is available from specialised dealers. E To clean the milk system, use the container supplied. Precondition: The start screen is displayed.

  • Page 38: Dismantling And Rinsing The Dual Spout

    5 Maintenance Dismantling and rinsing The dual spout must be dismantled and rinsed daily if milk has been the dual spout prepared to make sure it functions perfectly and also in the interests of hygiene. T  Remove the milk pipe and rinse it thoroughly under running water.

  • Page 39: Inserting/Changing The Filter

    5 Maintenance T  Fit the assembled individual parts back in the dual spout and press it firmly. T  Fit the cover of the dual spout. T  Connect the milk pipe to the dual spout. Inserting/changing the Your GIGA no longer has to be descaled if you are using the CLARIS filter Pro Smart filter cartridge.

  • Page 40: Cleaning The Machine

    E The cleaning programme lasts approximately 20 minutes. E Do not interrupt the cleaning programme. The quality of cleaning will be impaired if you do so. E JURA cleaning tablets are available from specialised dealers. Precondition: The start screen is displayed. ‘Clean machine’...

  • Page 41: Descaling The Machine

    ‘Add cleaning tablet’. T  Open the cover of the filler funnel for ground coffee. T  Insert a JURA cleaning tablet into the filler funnel. T  Close the cover of the filler funnel. ‘Press the Rotary Switch’ T  Press the Rotary Switch.
  • Page 42 If the descaling agent comes into contact with sensitive surfaces (e.g. marble), damage cannot be ruled out. T  Clean up any splashes immediately. E The descaling programme lasts approximately 45 minutes. E JURA descaling tablets are available from specialised dealers. Precondition: The start screen is displayed. ‘Decalcify machine’ displayed.

  • Page 43: Cleaning The Bean Container

    T  Switch the machine off at the power switch. T  Open the service cover on the back of the machine by press- ing above the JURA logo. T  Push the red sliding catch completely to the rear to close the...

  • Page 44: Descaling The Water Tank

    T  Turn the blue locking device inwards. T  Pull the red sliding catch completely forwards. T  Refit the service cover and fix it by pressing above the JURA logo. It will click into place audibly. T  Fill the bean container with coffee beans and close the aroma preservation cover.

  • Page 45: Display Messages

    6 Display messages 6 Display messages Message Cause/Result Action ‘Fill water tank’ The water tank is empty. You cannot T Fill the water tank (see Chapter 3 prepare any products. ‘Daily operation – Filling the water tank’). ‘Empty coffee The coffee grounds container is full. / T Empty the coffee grounds grounds The drip tray is full.
  • Page 46 6 Display messages Message Cause/Result Action ‘Not enough There is insufficient ground coffee in T The next time you prepare a ground coffee’ the machine; the GIGA stops the beverage, add more ground coffee operation. (see Chapter 2 ‘Preparation – Ground coffee’).

  • Page 47: Troubleshooting

    7 Troubleshooting 7 Troubleshooting Problem Cause/Result Action Insufficient foam is The dual spout is dirty. T Clean the milk system in the dual spout produced when the milk (see Chapter 5 ‘Maintenance – Cleaning is frothed or milk sprays the milk system’). from the dual spout.
  • Page 48 Q. Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).

  • Page 49: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your GIGA. It should be used to protect the system machine during transport. In order to protect the GIGA from frost during transport, the system must be emptied.

  • Page 50: Technical Data

    CLARIS Pro Smart filter cartridge Frequency band 13.56 MHz (RFID technology) Max. transmission power < 1 mW JURA Smart Connect (Bluetooth connection) Frequency band 2.4 GHz Max. transmission power < 1 mW Information for testers (repeat test in accordance with DIN VDE 0701-0702): The central grounding point (CGP) is located under the cover of the storage compartment.
  • Page 51 10 Index 10 Index Storage compartment 4 Water tank 4 Addresses 56 Cup grille 4 Adjusting the product settings 26 Customer support 56 Aroma preservation cover Bean container with aroma preservation cover 4 Daily maintenance 23 Automatic switch-off 28 Date 29 Timer 30 Declaration of Conformity 56 Automatic switch-on...
  • Page 52 Flat white 18 Ground coffee 19 Green tea 20 Internet 10 Ground coffee 19 Hot water 20 Latte macchiato 18 JURA Lungo Barista 19 Contact details 56 Pot of coffee 18 Internet 10 Ristretto 18 Two coffees 18 Language 33...
  • Page 53 10 Index Querying information 35 Restore factory settings 34 Technical data 50 Setting the consistency of grind 28 Tel 56 Setting the water hardness 30 Time 29 Time format Time and date 29 Programming mode 31 Timer 30 Timer 30 Unit for amount of water / time format 31 Touchscreen display 5, 10 Proper use 6...

  • Page 56: Jura Contact Details / Legal Information

    J74147/GIGA X3 /en/202106 11 JURA contact details / Legal information 11 JURA contact details / Legal information Your JURA service partner JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 jura.com Directives The machine complies with the following directives: 2006/42/EC –...
