PANEL DESCRIPTION

i DUALWATCH/TRI-WATCH INDICATORS (p. 15)

"DUAL" appears during dualwatch; "TRI" appears during

tri-watch.

o DUPLEX INDICATOR

Appears when a duplex channel is selected.

!0 SUB CHANNEL READOUT

• Indicates Channel 16 during priority scan, dualwatch or

tri-watch. (p. 15)

• Indicates the SET mode item while in SET mode.

!1 CHANNEL NUMBER READOUT

• Indicates the selected operating channel number.

• In SET mode, indicates the selected condition.

!2 CALL CHANNEL INDICATOR (p. 8)

Appears when the call channel is selected.

!3 CHANNEL GROUP INDICATOR (pgs. 9, 16)

"I" appears when International; "U" appears when U.S.A.

(U.K. version only); "

channel group is selected. "ATIS" appears when the chan-

nel group in which ATIS function is activated. (German ver-

sion only)

" appears when LAND (PMR)

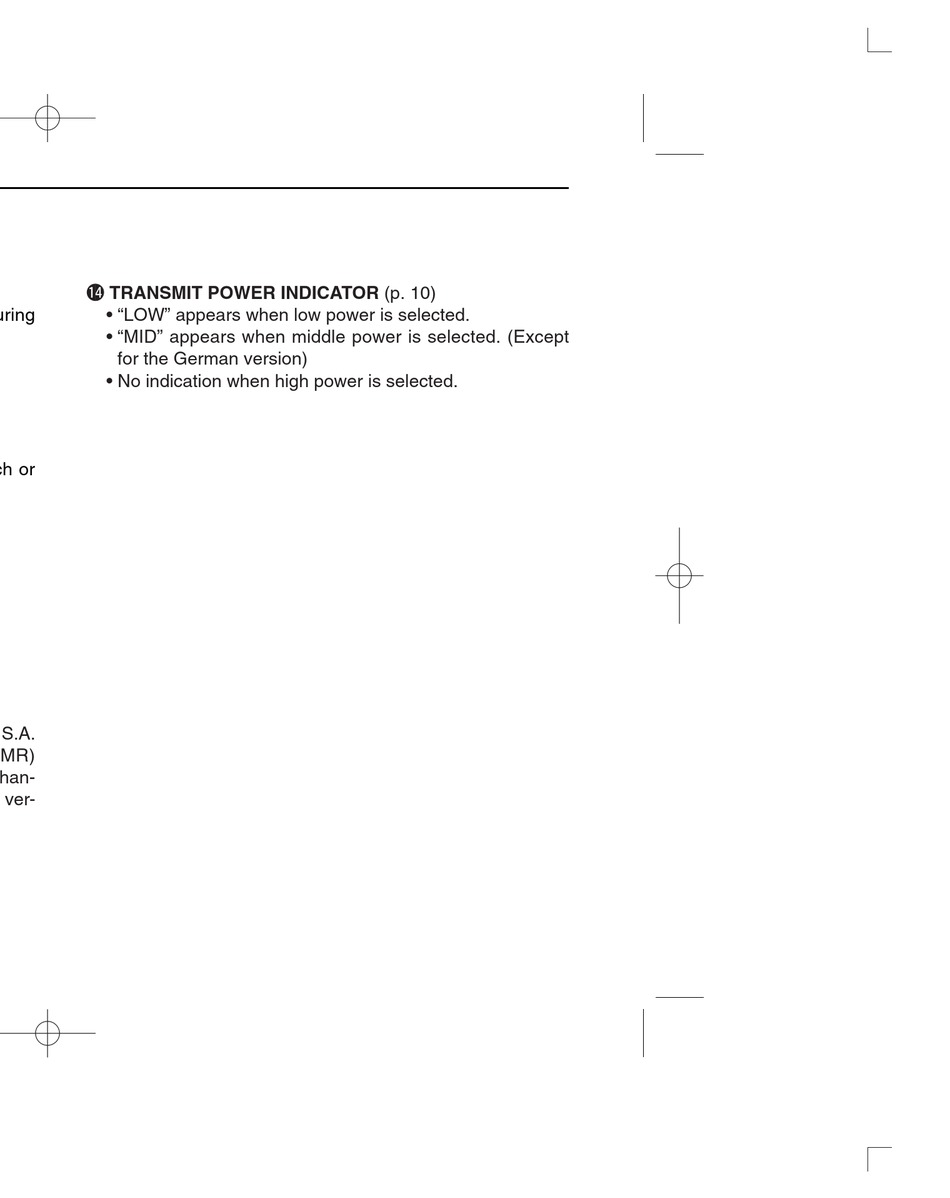

!4 TRANSMIT POWER INDICATOR (p. 10)

• "LOW" appears when low power is selected.

• "MID" appears when middle power is selected. (Except

for the German version)

• No indication when high power is selected.
