BASIC OPERATION

I Adjusting the squelch level

The IC-M87 has a squelch even though there is no control knob
for it. In order to receive signals properly, as well as for the scan
to function effectively, the squelch must be adjusted to the
proper level.
q Push [SQL], then adjust the squelch level with [Y]/[Z].
- "SL" indicator appears.
- There are 11 squelch levels to choose from: OP is completely
open; 10 is the tight squelch level.
- When no key is pushed for 5 sec., the transceiver returns to nor-
mal condition.
w Push [SQL] again to return to normal condition.

I Automatic backlighting

This function is convenient for nighttime operation. The auto-
matic backlighting can be activated in SET mode. (p. 19)
➥ Push any key except for [PTT] to turn the backlighting ON.
• The backlighting is automatically turned OFF after 5 sec. of in-
activity.
11

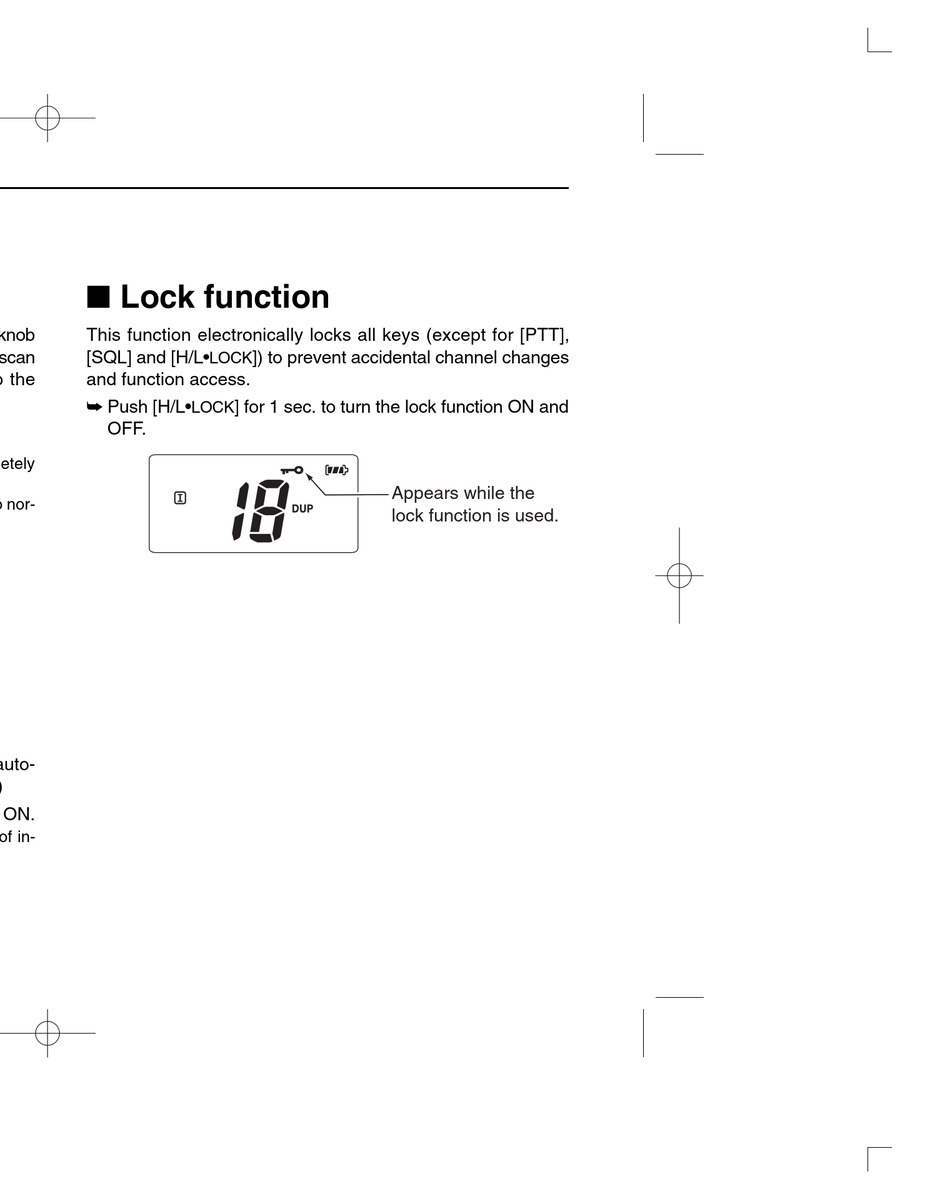

I Lock function

This function electronically locks all keys (except for [PTT],
[SQL] and [H/L• ]) to prevent accidental channel changes
LOCK
and function access.
➥ Push [H/L•
] for 1 sec. to turn the lock function ON and
LOCK
OFF.
Appears while the
lock function is used.
