Philco PRD-227W Instruction Manual

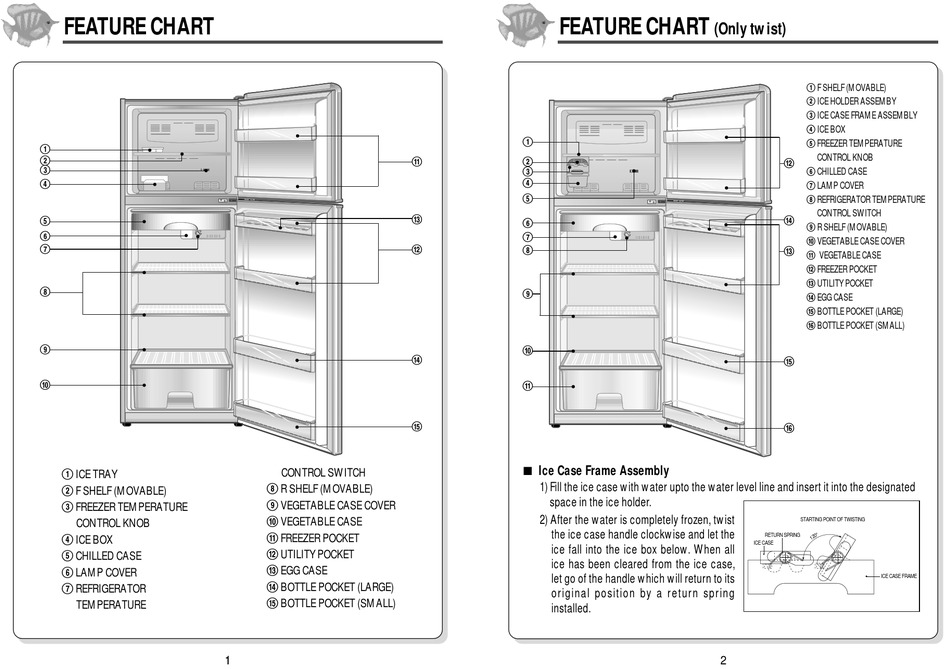

FEATURE CHART

!
@
#
$
%
^
&
*
(
)
! ICE TRAY
@ F SHELF (MOVABLE)
# FREEZER TEMPERATURE
CONTROL KNOB
$ ICE BOX
% CHILLED CASE
^ LAMP COVER
& REFRIGERATOR
TEMPERATURE
CONTROL SWITCH
* R SHELF (MOVABLE)
( VEGETABLE CASE COVER
) VEGETABLE CASE
1 FREEZER POCKET
2 UTILITY POCKET
3 EGG CASE
4 BOTTLE POCKET (LARGE)
5 BOTTLE POCKET (SMALL)
1 1
FEATURE CHART
!
1 @
#
$
%
3
^
&
2
*
(
)
4
1
5
Ice Case Frame Assembly
1) Fill the ice case with water upto the water level line and insert it into the designated
space in the ice holder.
2) After the water is completely frozen, twist
the ice case handle clockwise and let the
ice fall into the ice box below. When all
ice has been cleared from the ice case,
let go of the handle which will return to its
original position by a return spring
installed.
(Only twist)
! F SHELF (MOVABLE)
@ ICE HOLDER ASSEMBY
# ICE CASE FRAME ASSEMBLY
$ ICE BOX
% FREEZER TEMPERATURE
CONTROL KNOB
2
^ CHILLED CASE
& LAMP COVER
* REFRIGERATOR TEMPERATURE
CONTROL SWITCH
4
( R SHELF (MOVABLE)
) VEGETABLE CASE COVER
3
1 VEGETABLE CASE
2 FREEZER POCKET
3 UTILITY POCKET
4 EGG CASE
5 BOTTLE POCKET (LARGE)
6 BOTTLE POCKET (SMALL)
5
6
STARTING POINT OF TWISTING
RETURN SPRING
ICE CASE
ICE CASE FRAME
