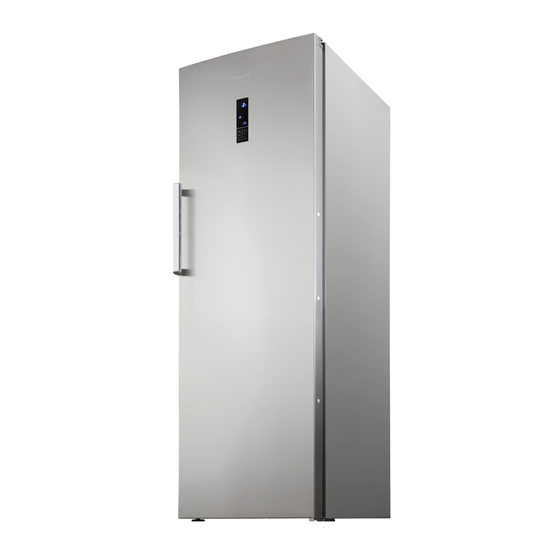

REFRIGERATOR
USER'S MANUAL
PTL 3602 NX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTL 3602 NX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philco PTL 3602 NX

Summary of Contents for Philco PTL 3602 NX

  • Page 1 REFRIGERATOR USER’S MANUAL PTL 3602 NX...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2020, Fast ČR, a. s. Revision 06/2020...

  • Page 3: Table Of Contents

    CONTENTS PART 1: SAFETY INFORMATION........................2 PART 2: DESCRIPTION OF DEVICE ........................10 PART 3: INSTALLATION ..........................11 Transport and unpacking ................................11 Operating conditions ..................................11 Installation location ..................................12 Cleaning before use ..................................13 Electrical wiring connection .................................13 Installing the handles ..................................14 Procedure for switching the door opening direction ......................15 Installation of appliances as a pair .............................21 PART 4: OPERATING THE APPLIANCE ......................22 Display and indicator lights on the display ..........................22...

  • Page 4: Part 1: Safety Information

    PART 1: SAFETY INFORMATION FOR YOUR SAFETY AND CORRECT USAGE, BEFORE INSTALLING AND FIRST USING THE APPLIANCE,READ THIS USER MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO AVOID UNNECESSARY MISTAKES AND ACCIDENTS,IT IS IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES.
  • Page 5 ● IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE THE APPLIANCE WHEN THE SUPPLY CABLE IS DAMAGED. ● CAUTION: IF YOUR MODEL IS EQUIPPED WITH AN ICE MAKER WITHOUT WATER SUPPLY CONNECTION, FILL IT WITH DRINKING WATER ONLY.
  • Page 6 THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS: – KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES; APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES; APPLIANCES USED IN BED-AND- BREAKFAST FACILITIES; APPLIANCES USED IN CATERING AND OTHER SIMILAR NON-VENDING ENVIRONMENTS.
  • Page 7 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS CONTAINS COOLING GAS ISOBUTANE R600A REFRIGERANT THE REFRIGERANT ISOBUTENE (R600A) IS CONTAINED WITHIN THE REFRIGERANT CIRCUIT OF THE APPLIANCE,A NATURAL GAS WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY,WHICH IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION AND INSTALLATION OF THE APPLIANCE,ENSURE THAT NONE OF THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES DAMAGED.
  • Page 8 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS IF THE REFRIGERANT CIRCUIT SHOULD BE DAMAGED: - AVOID OPENING FLAMES AND SOURCES OF IGNITION. - THOROUGHLY VENTILATE THE ROOM IN WHICH THE APPLIANCE IS SITUATED. IT IS DANGEROUS TO ALTER THE SPECIFICATIONS OR MODIFY THIS PRODUCT IN ANY WAY.
  • Page 9 5. IF THE POWER PLUG SOCKET IS LOOSE, DO NOT INSERT THE POWER PLUG. THERE IS A RISK OF ELECTRIC SHOCK OR FIRE. 6. YOU MUST NOT OPERATE THE APPLIANCE WITHOUT THE INTERIOR LIGHTING LAMP COVER. 7. THE FRIDGE IS ONLY APPLIED WITH POWER SUPPLY OF SINGLE PHASE ALTERNATING CURRENT OF 220~240V/50HZ.
  • Page 10 ● DO NOT PLACE CARBONATED OR FIZZY DRINKS IN THE FREEZER COMPARTMENT AS IT CREATES PRESSURE ON THE CONTAINER,WHICH MAY CAUSE IT TO EXPLODE,RESULTING IN DAMAGE TO THE APPLIANCE. ● FROZEN FOOD CAN CAUSE FROST BURNS IF CONSUMED STRAIGHT FROM THE FREEZER COMPARTMENT. ●...
  • Page 11 INSTALLATION IMPORTANT! ● FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE INSTRUCTIONS GIVEN IN THIS MANUAL. UNPACK THE APPLIANCE AND CHECK IF THERE ARE DAMAGES ON IT. ● DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT IT.

  • Page 12: Part 2: Description Of Device

    PART 2: DESCRIPTION OF DEVICE Outer case 11. Adjustable levelling feet LED light 12. Shelf for dairy products with a cover Flexible wine rack 13. Egg tray (inside) Glass shelf 14. Middle shelf Glass shelf 15. Suspended bottle shelf Small glass shelf 16.

  • Page 13: Part 3: Installation

    PART 3: INSTALLATION Transport and unpacking If the appliance is transported in a horizontal position the oil from the compressor may leak into the cooling circuit. For this reason, allow the appliance to rest in a vertical position for 12 hours before turning it on, so that the oil flows back into the compressor.

  • Page 14: Installation Location

    Installation location The installation location of the appliance must meet the requirements in the paragraph "Operating conditions" and must have a stable floor with a load bearing capacity corresponding to the weight of the appliance. Furthermore, you must maintain distances and dimensions of the appliance, so that correct operation is ensured: Top part at least 20 cm;...

  • Page 15: Cleaning Before Use

    Before turning on the appliance, allow it to stand in its final location for 12 hours, the coolant circuit will stabilise in this way and no operating problems will occur. Before connecting the appliance to the power grid check that it is perfectly dry inside – especially in the corners. Danger warning The coolant may be highly flammable, depending on its composition.

  • Page 16: Installing The Handles

    Do not connect the appliance to a voltage rectifier (e.g. solar power plant) or use an extension cord. The appliance must be connected to a working grounding lead. If the power socket of the home system is not grounded in accordance with the current legal regulations, connect the appliance after consulting a specialised technician to the grounding lead itself.

  • Page 17: Procedure For Switching The Door Opening Direction

    Procedure for switching the door opening direction You can change the door opening direction - from the right (as supplied by the manufacturer) to the left if the location of the refrigerator requires it. WARNING! When changing the door opening direction, the appliance must not be connected to the power supply.
  • Page 18 Open part 1 in the top part of the refrigerator from the right side and then remove part 3 and part 4 on the door in the same manner. Remove part 2 and put it back into the plastic bag. Top cover Top hinge cover (right) Top cover of the top door...
  • Page 19 Remove screws 1, release cables 2 and remove part 3. Special self-tapping screws Grounding wire Top hinge part NOTE: During step 4, hold the door with your hand so that it does not fall off . Remove the door and place it on a soft surface with the front part facing upwards. Lift up part 1 and part 4, then loosen screws 2 as shown in the picture.
  • Page 20 clip Install the handle covers as shown in the picture: first secure the clip, then close the cover from the inner side until you hear an audible click. clip Lay the refrigerator down flat, remove part 3 and release screw 4. Remove part 2 and part 1. Washer Bottom hinge (right) Fixed plate of the front foot...
  • Page 21 Bottom hinge (left) Screw out the top hinge, turn it over and secure it on the other side. Then put it aside for further use. 10. Exchange the wires on both sides of the refrigerator. 11. Place the top door in the correct position, set part 1 and the top door, move the connecting wire 2 into the holes in the top part of the door from left to right and then secure part 1 and wire 2 with screws 3.
  • Page 22 12. Connect the power supply connector 1 according to the connection in step 3 and then install part 2 (it is found in the plastic bag). Top hinge cover (left) Top hinge co 13. Turn part 1 by 180° and install it on the right corner of the top door, then install part 2, (you removed both in step 2).

  • Page 23: Installation Of Appliances As A Pair

    14. Disconnect the connecting cable from the connector (part 3 in step 3) and install it on to the second connector, which you will use (it is marked with the letter "R" and is located in the plastic bag). Place the removed connector into the plastic bag.

  • Page 24: Part 4: Operating The Appliance

    PART 4: OPERATING THE APPLIANCE Display and indicator lights on the display The appliance is controlled by means of the display and the indicator lights on the display; the appliance is equipped with corresponding functions and modes as shown on the displays on the pictures below. As soon as the appliance is turned on for the first time, a backlit icon on the display will remain in operation.
  • Page 25 1. Refrigerator Press the "Fridge" button to set the temperature in the refrigerator in the range from 2°C to 8°C as required; the respective setting will be shown on the control panel. 2. Super Cool The "Super Cool" function makes it possible to cool food down faster compared to the standard cooling process and keeps the stored food fresher for longer.
  • Page 26 7. Refrigerator accessories Door shelves They are suitable for storing eggs, beverages in can, beverages in bottles, packed foods, etc. Do not, however, store food that is too heavy. The middle door shelf can be variably located depending on your requirements. Remove food from the shelves.
  • Page 27 Wine rack Serves for storing bottles of wine or other beverages. It can also be slid to the side if necessary. If necessary, remove it also with its attachment part as required in order to gain more space inside the refrigerator. NOTE: Carefully press down on the right or left side of the bottle holder to slide it.
  • Page 28 Bottle holder The bottle holder serves to hold bottles. It can be located in the middle or lower part of the refrigerator and moved to the left or right as required. EN - 26 Copyright © 2020, Fast ČR, a. s. Revision 06/2020...

  • Page 29: Part 5: Arrangement Of Food

    PART 5: ARRANGEMENT OF FOOD • Food products, which are susceptible to the absorption of odours or that release odours must always be stored in closed boxes or in appropriate packaging. • Fruit, vegetables and salad products can be stored unpacked in the vegetable drawers. • Appropriate wrapping materials for food is plastic wrap, aluminium foil, glass jars, etc. • The products should not touch the back wall, otherwise they may freeze on. • Always allow hot dishes to cool down before placing them into the refrigerator. • Open the door only for a short time so that the inside area of the fridge is not heated. This saves energy. • Never store explosive materials or products with flammable compressed gasses (e.g. whipped cream sprayers with pressurised capsules/cartridges, spray cans) – DANGER OF EXPLOSION! • Do not place oils intended for meal preparation into the removable drawers in the refrigerator door. This may cause cracks caused by the pressure in the plastic on the door. •...

  • Page 30: Part 6: Regular Maintenance

    PART 6: REGULAR MAINTENANCE For hygiene reasons, it is necessary to regularly clean the appliance (including the outside and inside accessories) at least once every two months. WARNING The appliance must not be connected to the power socket during cleaning. Danger of injury by electric shock! Before cleaning the appliance, disconnect the power plug from the power socket.

  • Page 31: Replacing The Led Light

    Replacing the LED light WARNING! The LED light must be replaced by a service technician or qualified person! If the LED light is damaged, please contact an authorised service centre. To replace the LED light, proceed as follows: 1. Disconnect the appliance from the power socket. 2.

  • Page 32: Part 7: What Should I Do When

    PART 7: WHAT SHOULD I DO WHEN... If you notice problems with your appliance or if you find that the appliance is not working properly, you can remedy some of the most common faults yourself prior to contacting an authorised service centre. Check the appliance and proceed according to the instructions below before contacting an authorised service centre.

  • Page 33: Storage Instructions

    Problem Possible cause and solution. The door does not Check that the top part is bent by 10 - 15 mm so that the door closes on its own close properly. or whether there is something preventing the door from closing. Water is dripping on to The water tank (located in the bottom part of the appliance) is not correctly the floor.
  • Page 34 *-Freezer ≤-6 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month,the longer the storage time,the worse the taste and nutrition), are not suitable for frozen fresh food. 0-star -6~0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc.

  • Page 35: Part 8: Information Sheet

    PART 8: INFORMATION SHEET INFORMATION SHEET: Philco Philco brand: Brand Philco Product number PTL 3602 NX Type of appliance Energy efficiency class (A... low electricity consumption to G high electricity consumption) Electricity consumption per 365 days (kWh) Total available volume: l of which: refrigerator part l...

  • Page 36: Instructions And Information Regarding The Disposal Of Used Packaging Materials

    INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 37 Manufacturer/Importer: Fast ČR, a.s. Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC is a registered trademark used under license from Electrolux Home Products., Inc. Copyright © 2014, Fast ČR, a. s. Revision 06/2014...
