Clear ME Setting (JP8)

You may need to use this jumper is to clear the ME setting

if incorrect BIOS settings.

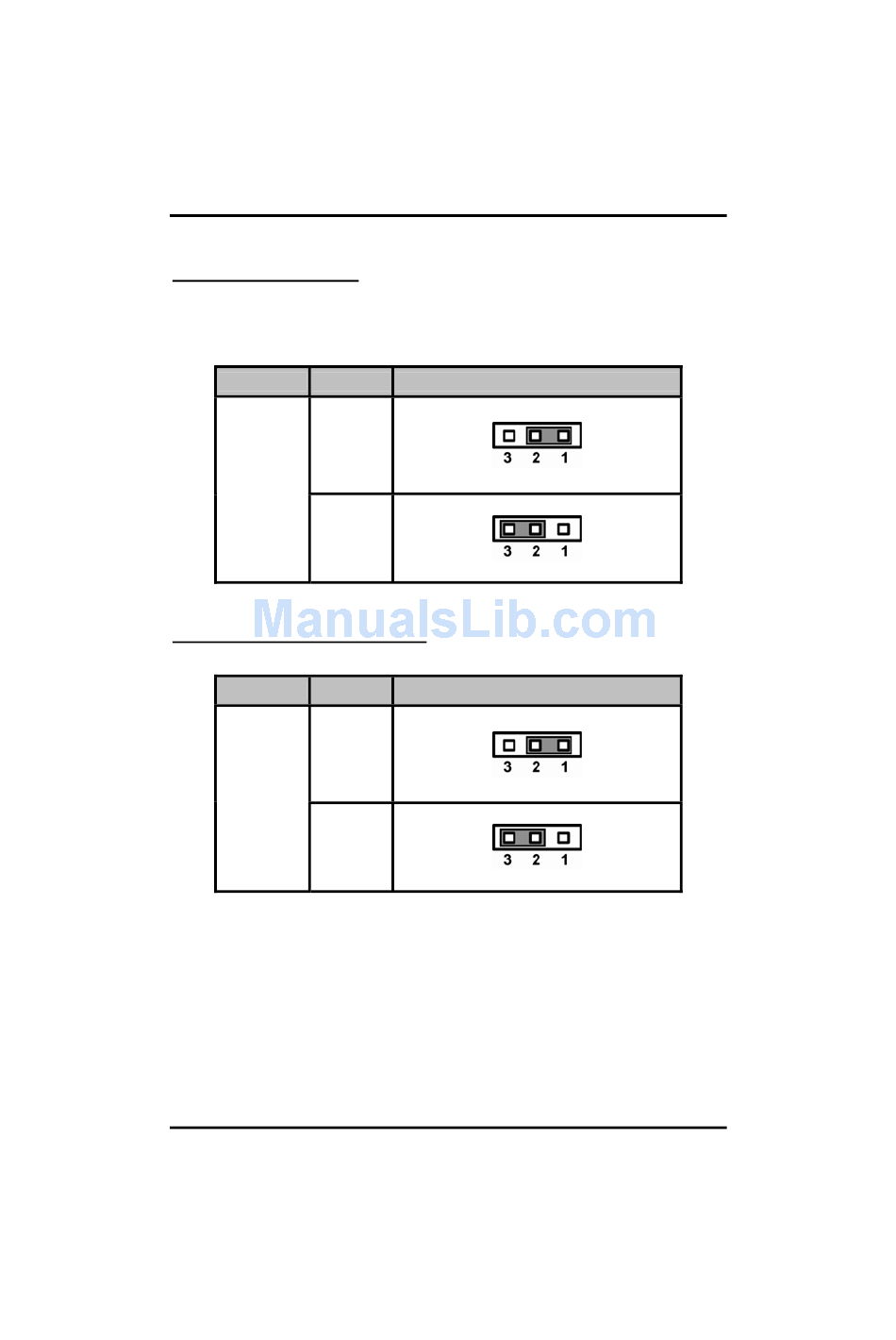

Description Function

Normal

ME Clear

(Default)

Clear ME

Description Function

3.3V

LVDS

(Default)

Voltage

Selection

Jumper Setting
