Generac Power Systems 004614-1 Installation And Owner's Manual page 55

ITEM PART NO. QTY.
1 070939-193 1
2 070939-194 1
3 070939-195 1
4 070939-196 1
5 070939-226 1
6 070939-197 1
7 070939-200 1
8 070939-664 1
9 070939-198 6
10 070939-199 6
11 070939-202 3
070939-203 AR
070939-204 AR
12 070939-205 3
070939-206 AR
070939-207 AR
13 070939-208 2
14 070939-204 2
15 070939-210 1
16 070939-214 3
070939-215 AR
070939-216 AR
Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 65D Recreational Vehicle Generator

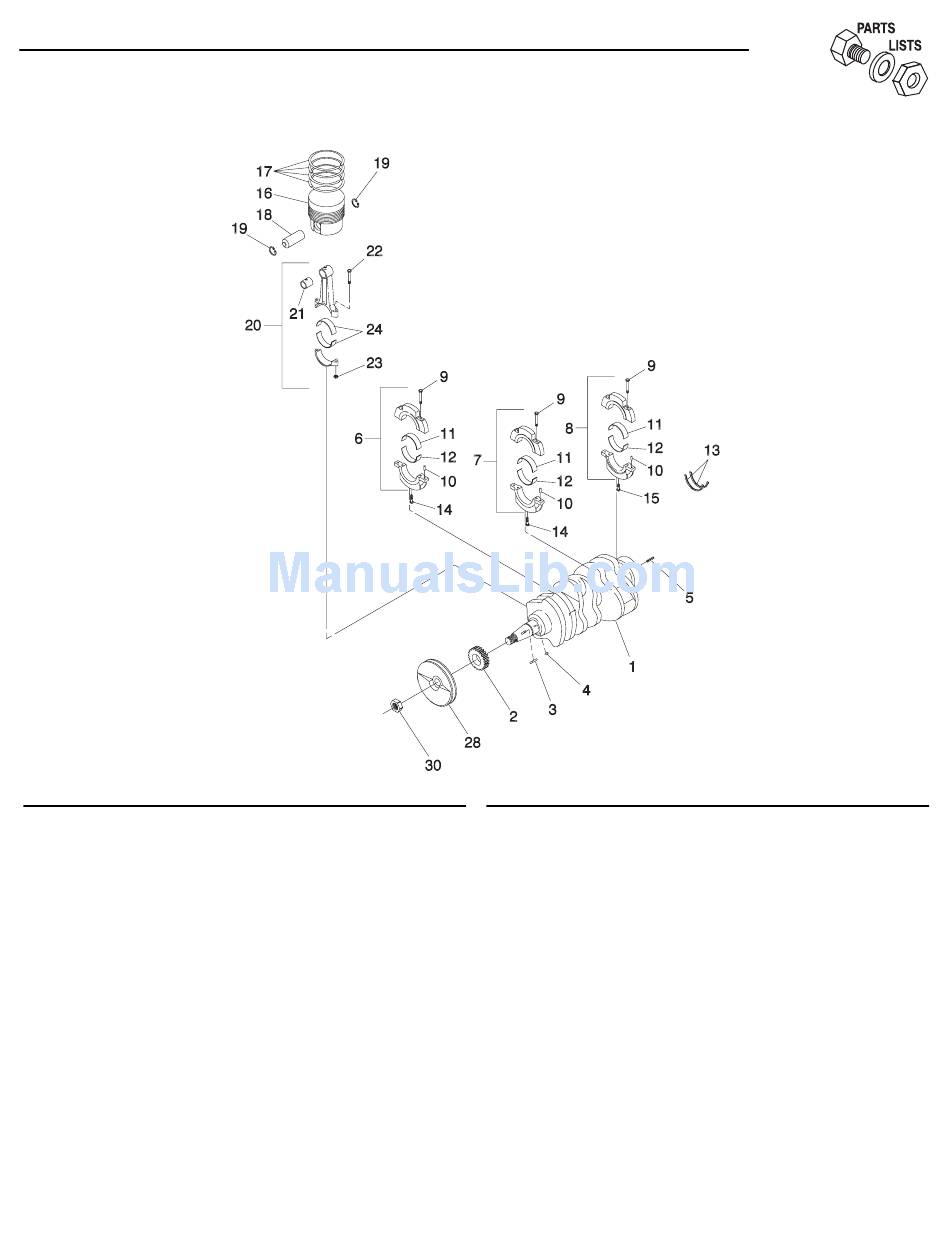

1.0 Liter Diesel Crankshaft, Piston and Flywheel – Drawing No. 075679-B
DESCRIPTION
CRANKSHAFT ASSEMBLY
CRANKSHAFT GEAR
KEY
DOWEL PIN
SPRING PIN
BEARING HOLDER ASSEMBLY
BEARING HOLDER ASSEMBLY
BEARING HOLDER ASSEMBLY
BOLT
DOWEL PIN
STANDARD BEARING
0.25MM U.S. BEARING
0.50MM U.S. BEARING
STANDARD BEARING
0.25MM U.S. BEARING
0.50MM U.S. BEARING
THRUST WASHER
BOLT
BOLT
STANDARD PISTON ASSEMBLY
PISTON ASSEMBLY-0.5MM O.S.
PISTON ASSEMBLY-1.0MM O.S.
ITEM PART NO. QTY.
17 070939-211 3
070939-212 AR
070939-213 AR
18 070939-217 3
19 070939-218 6
20 070939-219 3
21 070939-220 3
22 070939-221 6
23 070939-222 6
24 070939-223 6
070939-224 AR
070939-225 AR
28 070939-230 1
30 070939-231 1
U.S. - UNDERSIZE
O.S. - OVERSIZE
AR - AS REQUIRED
MM - MILLIMETER
Generac
DESCRIPTION
STANDARD PISTON RING SET
PISTON RING SET-0.5MM O.S.
PISTON RING SET-1.0MM O.S.
PISTON PIN
SNAP RING
CONNECTING ROD ASSEMBLY
BUSHING
CONNECTING ROD BOLT
NUT, CONNECTING ROD BOLT
STANDARD BEARING
BEARING-0.25MM U.S.
BEARING-0.50MM U.S.
PULLEY
NUT
Power Systems, Inc. 53
®
