Generac Power Systems 004614-1 Installation And Owner's Manual page 51

ITEM PART NO. QTY.
1 0D2398 1
2 0C4540 1
3 0C1457 1
4 081904 1
5 055920 1
6 043181 2
7 022159 2
8 055927 1
9 0C5127 1
10 0C7341 1
11 049226 4
12 0C7340 1
13 0D2021A 1
14 051714 2
15 0C4476 1
Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 65D Recreational Vehicle Generator

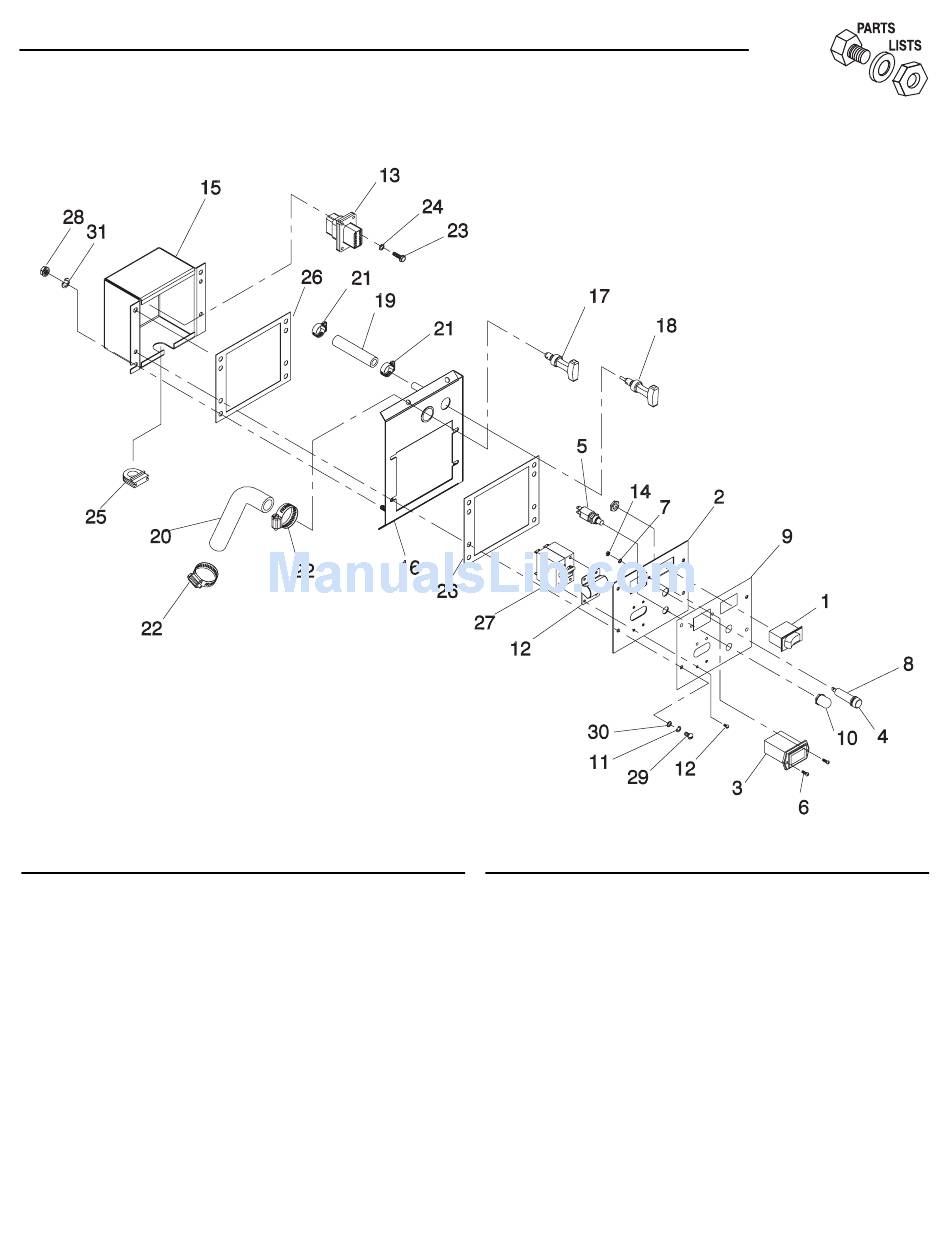

Customer Controls Assembly – Drawing No. 0D5055-A
DESCRIPTION
START / STOP SWITCH
COVER, ENGINE CONTROL BOX
HOUR METER
FUSE HOLDER, SFE-14
SWITCH, PUSHBUTTON SPST
PPHMS M3-0.5 X 10
LOCKWASHER M3
FUSE, SFE-14
DECAL
BOOT / NUT / PREHEAT SWITCH
LOCKWASHER, M5
BOOT, CIRCUIT BREAKER (WITH 4
SEALING SCREWS)
HARNESS
HEX NUT, M3
BOX, ENGINE CONTROL
ITEM PART NO. QTY.
16 0C5096 1
17 0D4372 1
18 0C3971B 1
19 0C4883 1
20 0C4884 1
21 0C7649 2
22 057824 2
23 0C3992 4
24 022985 4
25 084135 1
26 0C6440 2
27 082081 1
28 049813 2
29 052749 4
30 038150 4
31 022097 2
Generac
DESCRIPTION
FRAME, CONTROL PANEL
PLUG, OIL FILL
DIPSTICK ASSEMBLY
HOSE, DIPSTICK TUBE
HOSE, FILLER TUBE
HOSE CLAMP 7/8-3/8
HOSE CLAMP SIZE #16
M4-0.7 X 16 HHCS TAPTITE
WASHER, FLAT #6
GROMMET
GASKET, ENGINE CONTROL BOX
CIRCUIT BREAKER, 30A, 2 POLE
NUT, HEX M6-1.0
PHMS M5-0.8 X 12
FLATWASHER, #8
WASHER, SPLIT LOCK 1/4"-M6
Power Systems, Inc. 49
®
