Generac Power Systems 004614-1 Installation And Owner's Manual page 45

24
34
VIEW "A"
17
35
14
15
17
ITEM PART NO. QTY.
1 0D2315 1
2 0C4534 1
3 0C4532 1
4 0C4535 1
5 0C4536 1
6 0C5525 1
7 0C5527 1
8 0C5528 1
9 0C5529 1
10 0C5530 1
11 0C5531 1
12 0C4986 1
13 0C4987 1
14 0C5091 1
15 0C6362 1
16 0D7176 33
17 0A7215 58
18 0C5096 1

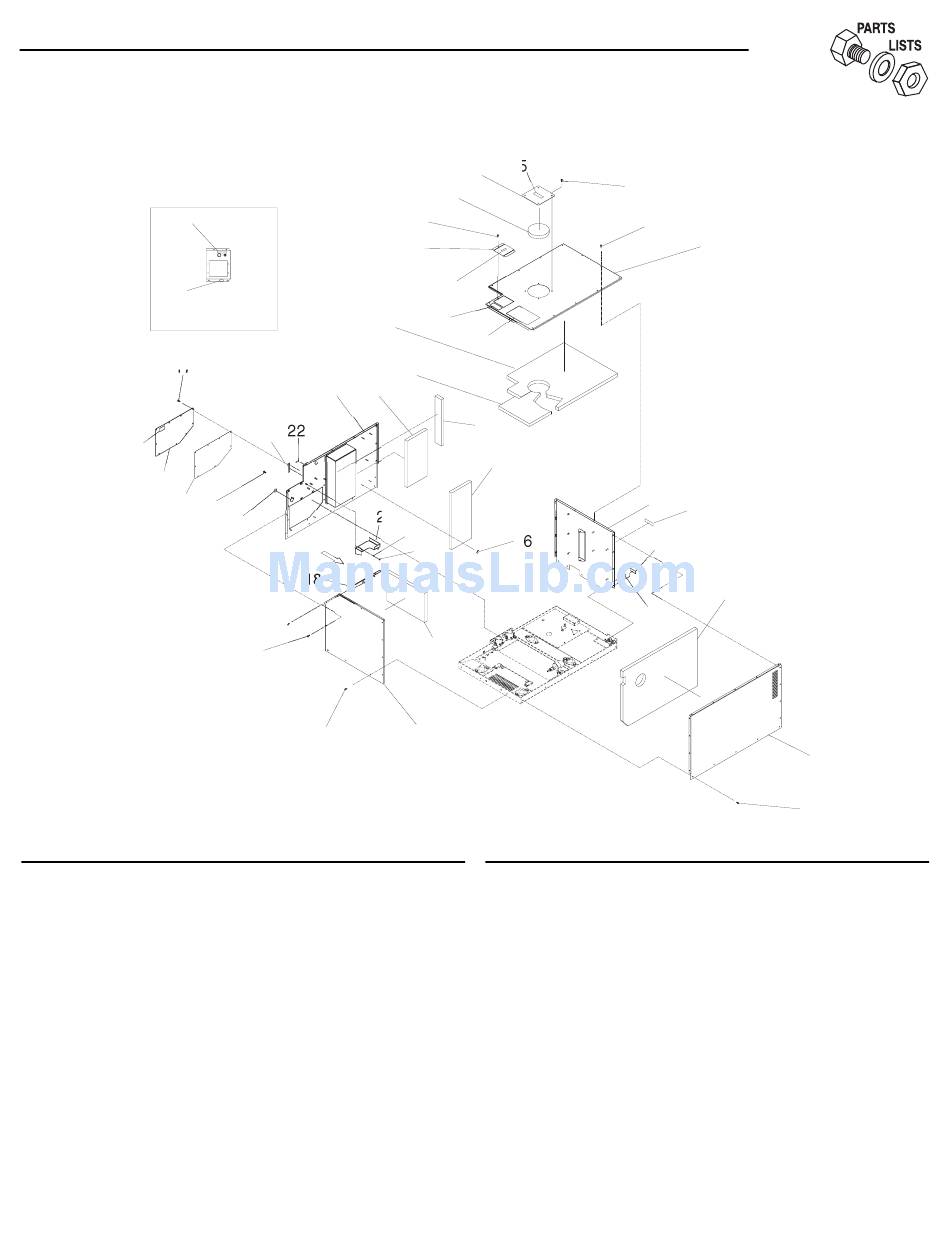

Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 65D Recreational Vehicle Generator
13
10
9
30
1
26
28
21
A
17
17
DESCRIPTION
ENCLOSURE PANEL RH
ENCLOSURE PANEL TOP
ENCLOSURE PANEL LH
ENCLOSURE PANEL FRONT
ENCLOSURE REAR PANEL
INSULATION, FRONT PANEL
INSULATION, LH SIDE PANEL
INSULATION, RH SIDE PANEL
INSULATION, TOP FRONT PANEL
INSULATION, TOP REAR PANEL
INSULATION, LIFTING LUG COVER
COVER, ACCESS LIFT
COVER, RADIATOR FILL
COVER, ACCESS ELECTRICAL
GASKET, ELECTRICAL ACCESS
WASHER, SELF LOCK
¼ -20 X 5/8 W/WASHER
FRAME CONTROL PANEL - REFER TO
DRAWING C8005
Enclosure – Drawing No. 0D5059-B
25
12
11
17
20
27
32
31
8
33
1
29
6
4
ITEM PART NO. QTY.
19 0C7023
20 0C7024
21 0C7025
22 0C7026
23 0C7027
24 0C7028
25 0C7029
26 0C7030
27 0C2340
28 0C6425
29 049813
30 0C7047A
31 0C7047B
32 0D7805
33 022097
34 098761
35 042755
17
17
2
5
19
23
7
17
DESCRIPTION
1 DECAL, BATTERY +/-
1 DECAL, RADIATOR CAP
1 DECAL, REMOTE
1 DECAL, COOLANT
1 DECAL, FUEL RETURN/SUPPLY
1 DECAL, OIL FILL / LEVEL
1 DECAL, LIFTING LUG
1 DECAL, MAX HOT / MIN COOLANT
1 DECAL, WARNING RV
1 SUPPORT, COOLANT TANK
3 NUT, HEX M6-1.0
1 FOAM, AIR DUCT FACE
1 FOAM, AIR DUCT SIDE
1 DECAL, UNIT
3 WASHER, SPLIT LOCK ¼" - M6
1 DECAL, ENGINE DATA
1 DECAL, CSA APPROVAL
Generac Power Systems, Inc. 43
®
