Generac Power Systems 004614-1 Installation And Owner's Manual page 53

ITEM PART NO. QTY.
1 0709390100 1
2 0709390447 1
3 0709390101 1
4 0709390102 2
5 0709390103 2
6 0709390104 1
7 0709390105 4
8 0709390106 4
9 0709390107 1
10 0709390108 1
11 0709390109 1
0709390110 1
0709390111 1
12 0709390112 1
13 0709390113 1
14 0709390114 1
15 0709390115 1
16 0709390116 1
Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 65D Recreational Vehicle Generator

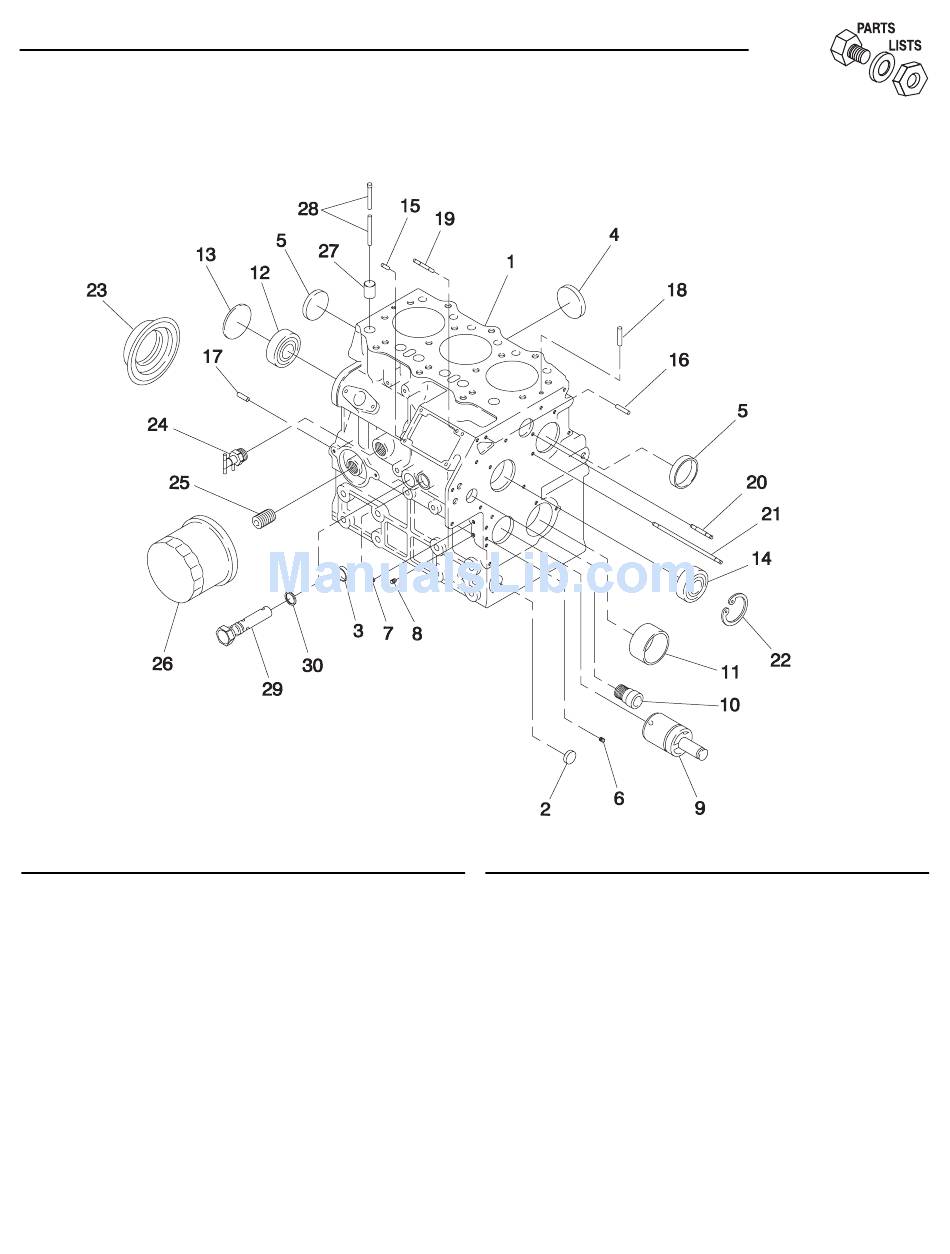

1.0 Liter Diesel Cylinder Block– Drawing No. 75676
DESCRIPTION
COMPLETE CYLINDER BLOCK
EXPANSION PLUG
EXPANSION PLUG
EXPANSION PLUG
EXPANSION PLUG
EXPANSION PLUG
PLUG
PLUG
IDLE GEAR SHAFT
BUSHING
BUSHING-STANDARD
0.25MM U.S. BUSHING
0.50MM U.S. BUSHING
BALL BEARING
EXPANSION PLUG
BALL BEARING
DOWEL PIN
DOWEL PIN
ITEM PART NO. QTY.
17 0709390117 2
18 0709390118 2
19 0709390119 2
20 0709390120 1
21 0709390121 1
22 0709390131 1
23 0709390123 1
24 0709390124 1
25 0709390125 1
26 0709390126 1
27 0709390127 6
28 0709390128 6
29 0709390129 1
30 0709390130 1
MM = MILLIMETER
U.S. = UNDERSIZE
Generac
DESCRIPTION
DOWEL PIN
SPRING PIN
STUD
STUD
STUD
SNAP RING
OIL SEAL
DRAIN COCK
CONNECTOR
OIL FILTER
TAPPET
PUSH ROD
RELIEF VALVE
O-RING
Power Systems, Inc. 51
®
