Figure 2.5 – Typical Noise Abatement

QUIETPACT™ 65D Recreational Vehicle Generator

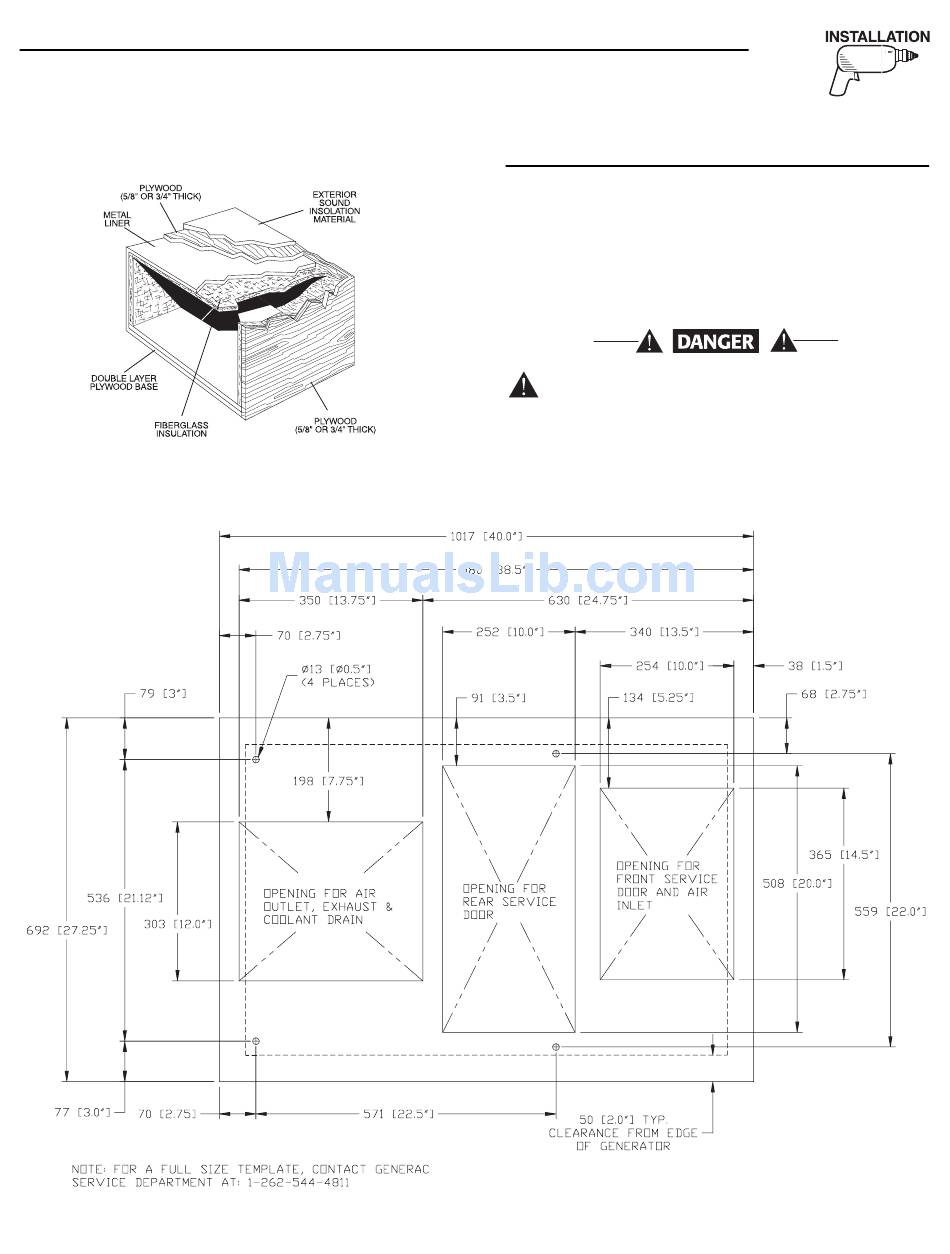

Figure 2.6 – Compartment Floor Cutout

Section 2 – Installation

2.2.4 COMPARTMENT FLOOR CUTOUTS

You must provide openings in the generator compart-

ment for the following items (Figure 2.6):

• Engine exhaust and cooling air outlets

• Generator cooling air inlet and front service door

• Four holes for passage of generator mounting

bolts. See Section 2.1.4 (Page 23)

• Rear service door.

Fuel lines and exhaust piping must not pene-

trate into the vehicle living area.
