- Page 1 8x1 HDMI Switcher U S E R M A N U A L www.gefen.com...
-
Page 2: Asking For Assistance
Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 8x1 HDMI Switcher is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved... -
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 8x1 HDMI Switcher RMT-8IR Installation RS-232 Interface Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction

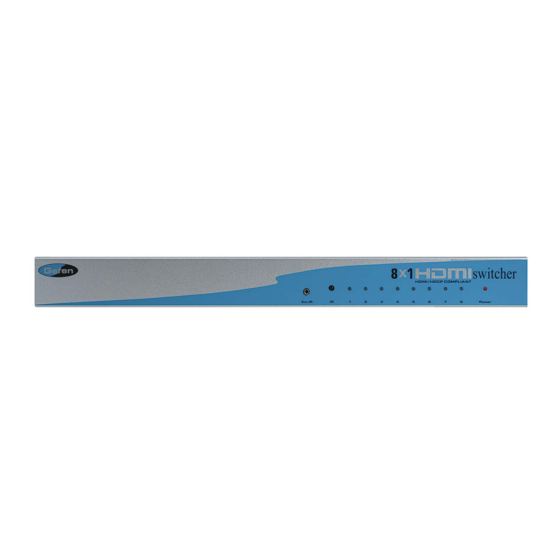

Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. The 8x1 HDMI Switcher allows eight HDMI devices to be switched easily through one HDMI compatible monitor or projector. -
Page 5: Features
• Serial RS-232 remote port • HDCP pass-through • HDMI pass-through • Installs in minutes • Rackmountable Includes: (1) 8x1 HDMI Switcher (1) RMT-8IR Remote control (8) 6-foot HDMI cables (M-M) (1) 5VDC Power Supply (1) User’s Manual (1) Set of Rack Ears... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 8X1 Hdmi Switcher
CONNECTING AND OPERATING THE 8x1 HDMI SWITCHER How to Connect the 8x1 HDMI Switcher to your devices 1. Connect the supplied HDMI cables from the HDMI sources into the HDMI Switcher Inputs. 2. Connect the cable from your display (HDTV or projector) into the HDMI Out of the 8x1 HDMI Switcher. -
Page 8: Rmt-8Ir Installation
1. Remove battery cover from the back of the RMT8-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 9: Rs-232 Interface
Binary Table ASCII Input RS232 Settings Bits per second ...19200 Data bits ... 8 Parity ... None Stop bits ...1 Flow Control ... None RS-232 INTERFACE Receive Transmit Ground Binary 0011 0001 0011 0010 0011 0011 0011 0100 0011 0101 0011 0110 0011 0111 0011 1000... -
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 1.65 Gbps Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Single Link Range...1080p/1920 x 1200 HDMI Connector...Type A 19 pin female Remote Control Port...RS232 female, mini-stereo Power Consumption ... 20 watts (max) Power Supply ... -
Page 11: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
