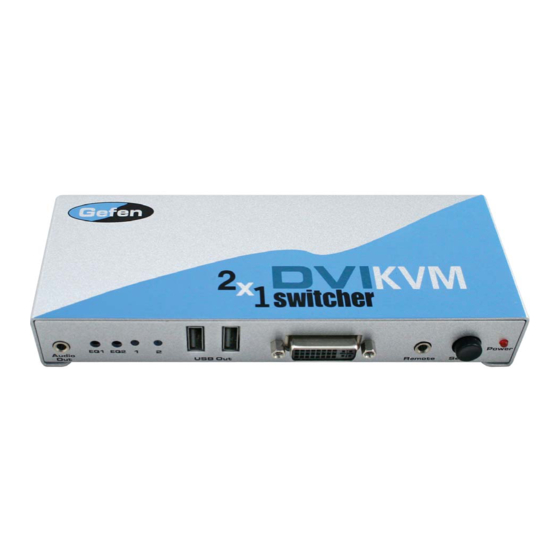

Gefen 2x1 DVI KVM Switcher User Manual
Gefen 2x1 dvi/kvm switcher user manual
Hide thumbs
Also See for 2x1 DVI KVM Switcher:
- User manual (13 pages) ,
- Specifications (4 pages) ,
- User manual (12 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gefen 2x1 DVI KVM Switcher
Summary of Contents for Gefen 2x1 DVI KVM Switcher
- Page 1 2x1 DVI/KVM Switcher U S E R M A N U A L www.gefen.com...
-
Page 2: Asking For Assistance
6265 Variel Ave. Woodland Hills, CA 91367-9897 Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 2x1 DVI KVM Switcher is a trademark of Gefen Inc. -
Page 3: Table Of Contents
Introduction Features Panel Desciptions Connecting and Operating the 2x1 DVI KVM Switcher Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of free support from a team of outstanding engineers. Now you can switch easily and reliably between any combination of two DVI & USB 2.0 equipped computers (PC or Mac) - using only one keyboard, display and mouse. -
Page 5: Features
• Supports VESA standard and HDTV resolutions • Supports DDWG standsrds for DVI monitors • Contact closure remote control option (RMT-2) Includes: 2x1 DVI KVM Switcher 5V DC Power Supply Two 6ft DVI cables Two 6ft USB cables Two Audio cables... -
Page 6: Panel Desciptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 2X1 Dvi Kvm Switcher
1- Connect the supplied cables from your fi rst computer into the DVI In 1, USB In 1, and Audio In 1 connection in the back of the 2x1 DVI KVM Switcher. 2- Connect the supplied cables from your second computer into the DVI In 2, USB In 2, and Audio In 2 connection in the back of the 2x1 DVI KVM Switcher. -
Page 8: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ...1.65 Gbps Input Video Signal... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Single Link Range ... 1920 x 1200 x 60hz DVI Input/Output Connector Type ... DVI-I (29 pin) female (digital only) USB 2.0 Input Connection ... -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 10 6265 Variel Avenue Woodland Hills, CA 91367 1-800-545-6900 818-884-6294 fax: 818-884-3108 www.gefen.com gsinfo@gefen.com...
