Summary of Contents for Gefen 3x1 HDMI Switcher
- Page 1 3x1 HDMI Switcher U S E R M A N U A L www.gefen.com...
-
Page 2: Asking For Assistance
6265 Variel Ave. Woodland Hills, CA 91367-9897 Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 3x1 HDMI Switcher is a trademark of Gefen Inc. -
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 3x1 HDMI Switcher RMT4-IR Installation IR Code Confl icts IR Extender Installation Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction

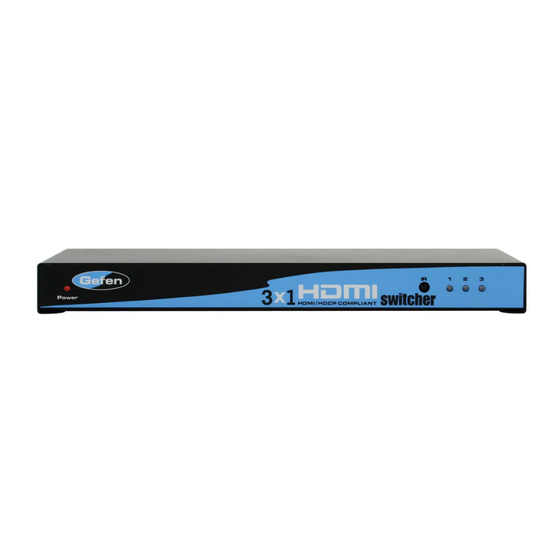

The 3x1 HDMI Switcher allows three HDTV HDMI devices to be switched easily in to one HDTV HDMI compatible monitor or projector. Simply connect your HDTV display to the Switcher’s display output. The 3x1 HDMI Switcher can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. -
Page 5: Features
• HDMI or DVI to HDMI cables are used to connect the inputs and switcher output • Inputs can be switched with the IR remote control • Installs in seconds Includes: Three - 6’ HDMI cables (m-m) 5V DC Power Supply RMT4-IR 3x1 HDMI Switcher Users Manual FEATURES... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 3X1 Hdmi Switcher
Connecting and Operating the 3x1 HDMI Switcher How to Connect the 3x1 HDMI Switcher to your devices 1 Connect the supplied cables from the HDTV HDMI sources into the 3x1 HDMI Switcher inputs. 2 Connect the cables from your display (monitor or projector) into the HDMI out of the 3x1 HDMI Switcher. -
Page 8: Rmt4-Ir Installation
1. Remove battery cover from the back of the RMT4-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 9: Ir Code Confl Icts
There are matching pairs of dip switches underneath the Switcher unit and under the remote battery cover. Switch 1 & 2 on the Remote and Switch 1 & 2 underneath the unit are the matching switches. These switches need to be matched for the remote to communicate with the switcher. -
Page 10: Ir Extender Installation
IR Extender Installation How to Connect the IR Extender 1 Plug the IR extender into the Remote port on the front of the Switcher Unit 2 Flip the Dip Switch 1 underneath the unit to the ON position... -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 1.65 Gbps Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Single Link Range ...1080p / 1920 x 1200 Input Connector Type ... HDMI type A 19 pin female Output Connector Type ... -
Page 12: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 13 6265 Variel Avenue Woodland Hills, CA 91367 1-800-545-6900 818-884-6294 fax: 818-884-3108 www.gefen.com gsinfo@gefen.com...
