- Page 1 8x1 DVI Switcher U S E R M A N U A L www.gefen.com...
- Page 2 6265 Variel Ave. Woodland Hills, CA 91367-9897 Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 8x1 DVI Switcher is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Features Panel Desciptions Connecting and Operating the 8x1 DVI Switcher RMT-8IR Installation RS-232 Interface Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction

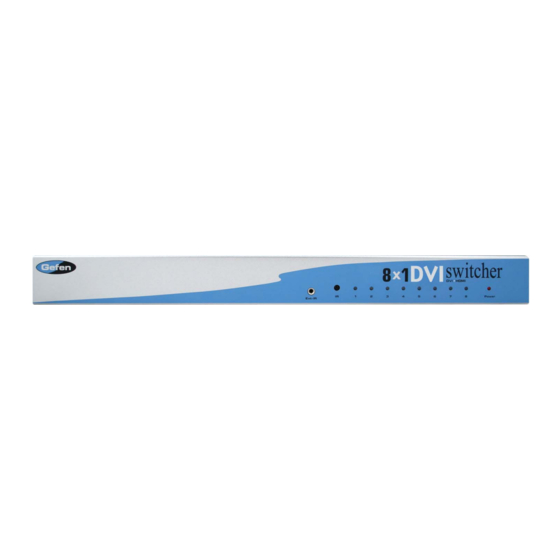

The 8x1 DVI Switcher allows eight DVI devices to be switched easily in to one DVI compatible monitor or projector. The 8x1 DVI Switcher can also be placed at the end of... -
Page 5: Features
• Discrete IR remote (included); RS-232 controllable • Supports VESA standard and HDTV Resolutions • Supports DDWG standards for DVI monitors • Installs in minutes • Rackmountable Includes: 8x1 DVI Switcher 8x 6’ DVI-D cables (m-m) 5VDC Power Supply RMT8-IR Users Manual FEATURES... -
Page 6: Panel Desciptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 8X1 Dvi Switcher
1 Use the RMT4-IR remote control port to remotely switch between sources. 2 Alternatively, use an RS-232 control system to switch between sources. Operation Notes The 8x1 DVI Switcher can also be powered from input 1, as long as the device is on and supplying 5V to the DVI connector. -
Page 8: Rmt-8Ir Installation
RMT8-IR Installation 1. Remove battery cover from the back of the RMT8-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 9: Rs-232 Interface
Binary Table Input Binary 0011 0001 0011 0010 0011 0011 0011 0100 0011 0101 0011 0110 0011 0111 0011 1000 RS232 Settings Bits per second ... 19200 Data bits ... 8 Parity ... None Stop bits ...1 Flow Control ... None RS-232 Interface... -
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 1.65 Gbps Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Single Link Range ... 1920 x 1200 DVI Input/Output Connector Type ... DVI-I (29 pin) female (digital only) Power Consumption ... -
Page 11: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 12 6265 Variel Avenue Woodland Hills, CA 91367 1-800-545-6900 818-884-6294 fax: 818-884-3108 www.gefen.com gsinfo@gefen.com...
