- Page 1 Vertrieb von CAMBOARD Electronics HDMI 1.3 4x1 Switcher U S E R M A N U A L www.camboard.de Tel. 07131 911201 ce-info@camboard.de www.gefen.com Fax 07131 911203...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. HDMI 1.3 4x1 Switcher is a trademark of Gefen Inc. HDMI is a trademark of HDMI.org ©...
-
Page 3: Table Of Contents
Vertrieb von CAMBOARD Electronics TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the HDMI 1.3 4x1 Switcher / Device Buttons RMT4-IR Installation IR Code Confl icts RS-232 Interface Specifi cations Warranty www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 4: Introduction

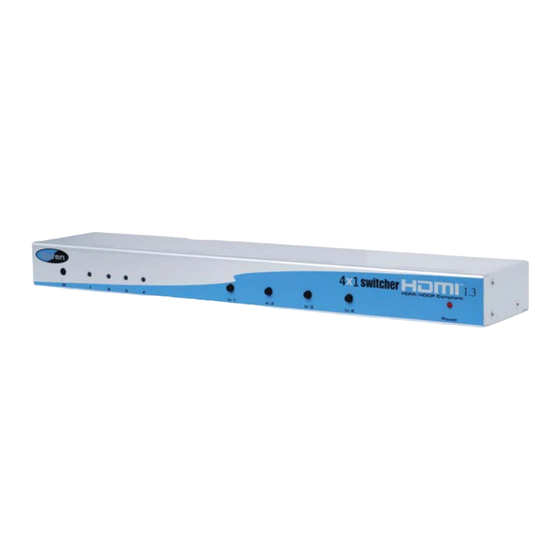

Congratulations on your purchase of the HDMI 1.3 4x1 Switcher. Your complete satisfaction is very important to us. The HDMI 1.3 4x1 Switcher allows four HDTV HDMI devices to be switched easily into one HDTV HDMI compatible monitor or projector. Simply connect your HDTV display to the Switcher’s display output. -
Page 5: Features
• Inputs can be switched automatically with the IR remote control or switched using the front panel buttons • Installs in seconds • Fully HDMI 1.3 compliant Includes (1) HDMI 1.3 4x1 Switcher (4) 6' HDMI cables (M-M) (1) 5VDC Power Supply (1) RMT4-IR Remote Control (1) User's Manual www.camboard.de Tel. -
Page 6: Panel Descriptions
im Vertrieb von CAMBOARD Electronics PANEL DESCRIPTIONS FRONT IR Eye Input Indicator Input 1 Input 3 Power Indicator LED’s Selector Selector Input 2 Input 4 Selector Selector BACK Input 1 Input 2 Input 3 Input 4 HDMI RS-232 Output Control Port 5VDC Power Supply Input IR Eye... -
Page 7: Connecting And Operating The Hdmi 1.3 4X1 Switcher / Device Buttons
2. Connect the cable from your display (monitor or projector) into the HDMI out of the HDMI 1.3 4x1. 3. Plug the 5VDC power supply into the HDMI 1.3 4x1 Switcher. How to Control the HDMI 1.3 4x1 Switcher Use the RMT4-IR remote control to toggle between sources or press the input buttons located on the front of the HDMI 1.3 4x1. -
Page 8: Rmt4-Ir Installation
im Vertrieb von CAMBOARD Electronics RMT4-IR INSTALLATION 1. Remove battery cover from the back of the RMT4-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 9: Ir Code Confl Icts
im Vertrieb von CAMBOARD Electronics IR CODE CONFLICTS How to Resolve IR Code Confl icts There are matching pairs of dip switches underneath the Switcher unit and under the remote battery cover. Switch 1 & 2 on the Remote and Switch 7 & 8 underneath the unit are the matching switches. -
Page 10: Rs-232 Interface
im Vertrieb von CAMBOARD Electronics RS-232 INTERFACE Binary Table ASCII Input Binary 0011 0001 0011 0010 0011 0011 0011 0100 Terminal Settings Bits per second ....................19200 Data bits ........................8 Parity ........................None Stop bits ........................1 Flow Control ....................... None www.camboard.de Tel. -
Page 11: Specifi Cations
im Vertrieb von CAMBOARD Electronics SPECIFICATIONS Video Amplifi er Bandwidth ................340 MHz Input Video Signal ..................1.2 volts p-p Input DDC Signal ................5 volts p-p (TTL) Single Link Range .........1080p/60 16 bit color depth, 1920x1200 HDMI Connector ................type A 19 pin female Remote Control Port ............RS232 female, mini-stereo Power Supply ....................5V DC Power Consumption ................10 watts (max)
