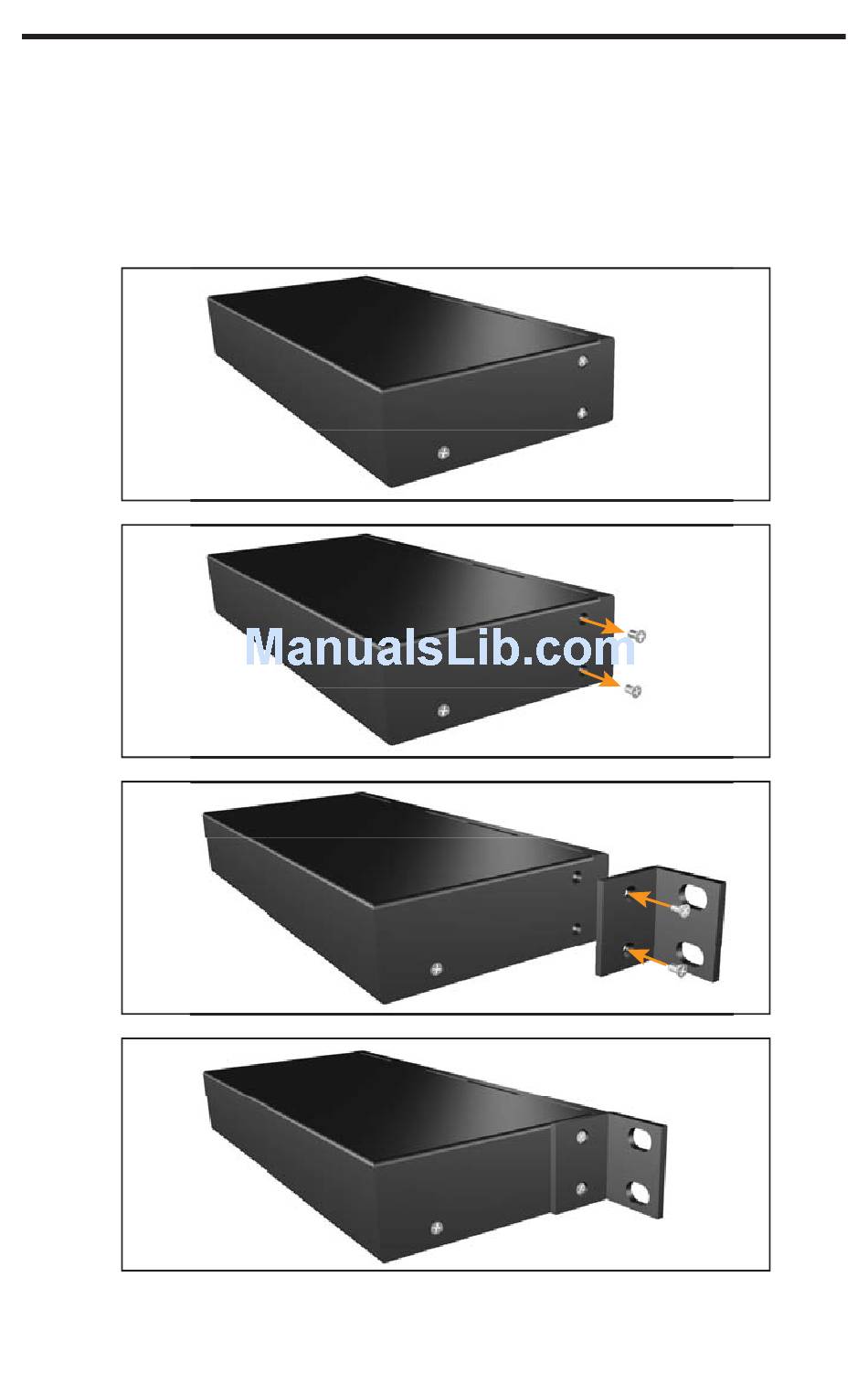

Rack mount ears are provided for installation of this unit into a 1U rack mount
space.
1.
Locate the side screws on the unit.
2.
Remove the front 2 screws that are located closest to the front of the unit.
3.
Using the removed screws, screw the rack mounting bracket into the unit.
4.
Repeat the procedure on the opposite side of the unit.
1
Rear of unit
2
3
4
RACK MOUNT INSTALLATION
16
Front of unit
