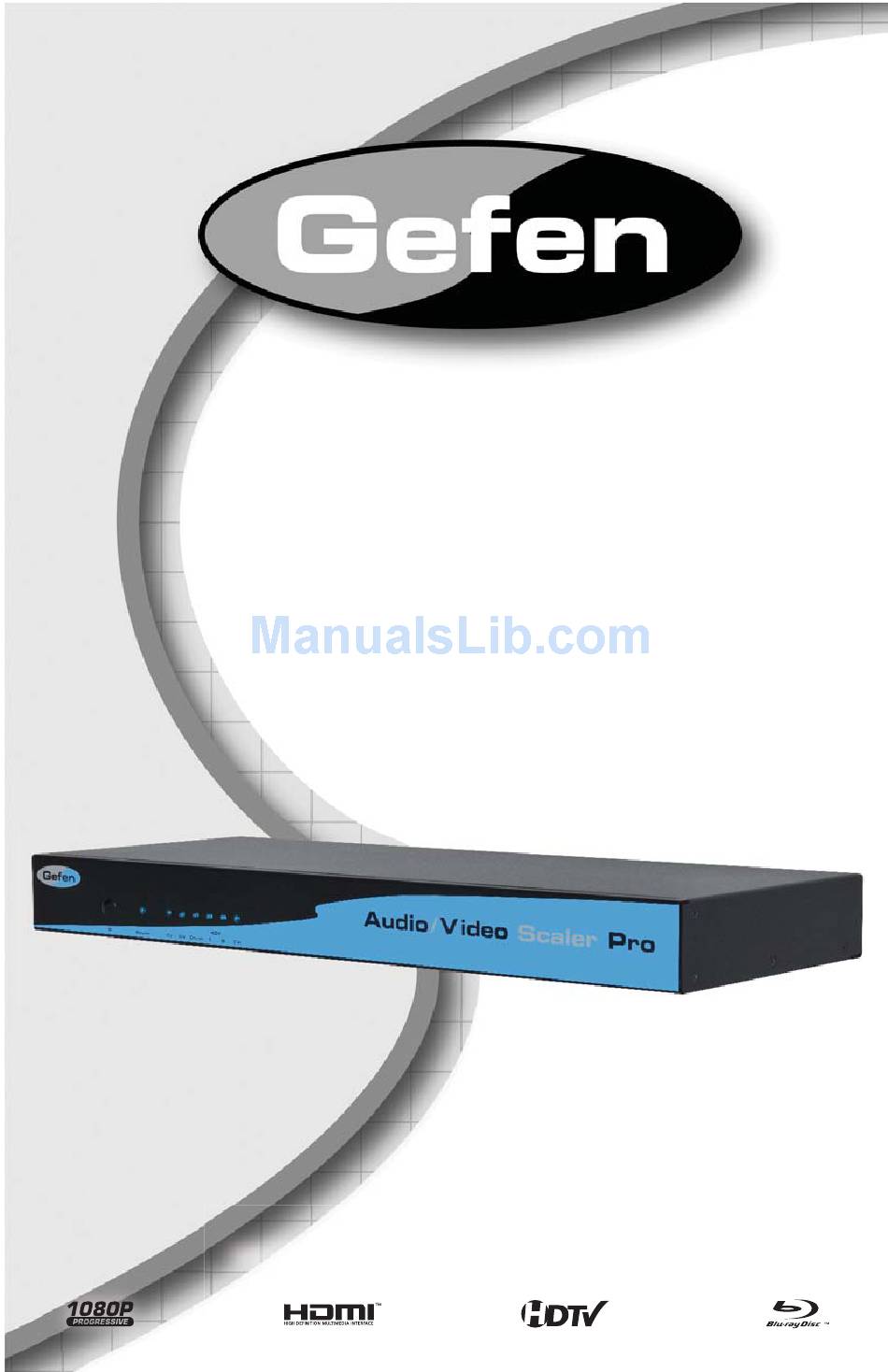

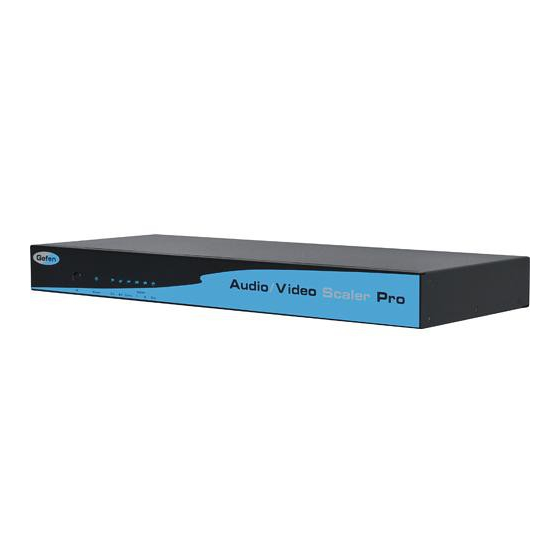

  • Page 1 ® Audio / Video Scaler Pro EXT-GSCALER-PRO User Manual www.gefen.com...
  • Page 2: Asking For Assistance

    Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. A/V Scaler Pro is a trademark of Gefen Inc. © 2009 Gefen Inc., All Rights Reserved...
  • Page 3: Table Of Contents

    Introduction Operation Notes Features Panel Layout Connecting The A/V Scaler Pro A/V Scaler Pro Remote Description Operating The A/V Scaler Pro 13 RS-232 Serial Communications Control 14 RS-232 Commands 16 Rack Mount Installation 17 Specifi cations 18 Warranty CONTENTS...
  • Page 4: Introduction

    Congratulations on your purchase of the A/V Scaler Pro. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate.
  • Page 5: Operation Notes

    Compatible with all HDMI and DVI* displays • Discrete input switching is available through the RS-232 port or by using a remote that will accept hex commands. These hex commands are available at www.gefen.com • HDMI/HDCP compliant • NOTE: *When used with a DVI to HDMI adapter...
  • Page 6: Features

    Features • Both digital and analog inputs are format converted and pixel re-scaled through the A/V Scaler Pro. It outputs a large range of formats and resolutions that will easily match the native resolution/format of your display to ensure highest picture quality. •...
  • Page 7: Panel Layout

    PANEL LAYOUT...
  • Page 8: Connecting The A/V Scaler Pro

    CONNECTING THE A/V SCALER PRO Connect the HDMI output on the A/V Scaler Pro to the display using the supplied HDMI cable. Connect either the digital SPDIF or digital Optical audio output to the display or an external audio processor using user supplied digital audio cables. Connect the sources to the A/V Scaler Pro using user supplied cables.
  • Page 9: A/V Scaler Pro Remote Description

    A/V SCALER PRO REMOTE DESCRIPTION Output - Cycles through the available output resolutions. Please see the section A/V Scaler Pro CONFIGURATION / Output on page 8 for the output resolution table. Input - Cycles though all of input sources. The selectable inputs are Composite, S-Video, Component, HDMI 1, and HDMI 2.
  • Page 10: Operating The A/V Scaler Pro

    OPERATING THE A/V SCALER PRO Entering the Menu System Pressing the Menu button on the included RMT-SR-IR remote control will display the GUI (graphical user interface) for adjustment options. The GUI is overlaid onto the outgoing video to the display. Therefore, the selected source must be outputting a compatible resolution for viewing on the display.
  • Page 11 OPERATING THE A/V SCALER PRO Press OK to begin adjusting settings. Use the LEFT and RIGHT buttons to change settings. Press the OK button once the desired settings are made. Contrast Adjusts the contrast in increments of 1 on a scale of 1 to 100 (default 50). Brightness Adjusts the brightness in increments of 1 on a scale of to 100 (default 50).
  • Page 12 OPERATING THE A/V SCALER PRO H-Pos (Horizontal Position) Adjusts the image’s horizontal position on the screen. • Adjusts in increments of 1 on a scale of 1 to 100 (default is 50) V-Pos (Vertical Position) Adjusts the image’s vertical position on the screen. •...
  • Page 13 OPERATING THE A/V SCALER PRO COLOR Press OK to begin adjusting settings. Use the LEFT and RIGHT buttons to change settings. Press the OK button once the desired settings are made. Color Tone Sets the color for the appearance of white. Only the USER option will allow customized settings.
  • Page 14 OPERATING THE A/V SCALER PRO OSD (ON SCREEN DISPLAY) CONTINUED Remote Channel Sets the remote channel for use with the RMT-SR-IR remote control. If the selected channel in this menu and does not match the channel set in the RMT-SR-IR remote, the unit will cease to respond to IR commands from the remote.
  • Page 15 OPERATING THE A/V SCALER PRO This menu will allow the user to view general information. There are no confi gurable options in this menu. • Source - Displays current source • Input - Displays current input source resolution • Output - Displays current output resolution •...
  • Page 16: Rs-232 Serial Communications Control

    RS-232 SERIAL COMMUNICATIONS CONTROL 1 2 3 4 5 6 7 8 9 Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface RS232 Settings Bits per second ... 19200 Data bits ... 8 Parity ...
  • Page 17: Rs-232 Commands

    Command Code Response S OUTPUT 9 > OUTPUT 1080I S OUTPUT 10 > OUTPUT 1080P S OUTPUT 11 > OUTPUT 576I S OUTPUT 12 > OUTPUT 576P S OUTPUT 13 > OUTPUT 720P S OUTPUT 14 > OUTPUT 1080I50 S OUTPUT 15 >...
  • Page 18 Status Commands These commands are sent in ASCII format. Command Code Response R POWER > POWER ON R SOURCE > SOURCE CV~HDMI > OUTPUT R OUTPUT NATIVE~WUXGA R SIZE > SIZE FULL~PANSCAN > PICTUREMODE R PICTUREMODE STANDARD~USER R CONTRAST > CONTRAST 0~100 R BRIGHTNESS >...
  • Page 19: Rack Mount Installation

    RACK MOUNT INSTALLATION Rack mount ears are provided for installation of this unit into a 1U rack mount space. Locate the side screws on the unit. Remove the front 2 screws that are located closest to the front of the unit. Using the removed screws, screw the rack mounting bracket into the unit.
  • Page 20: Specifi Cations

    SPECIFICATIONS Digital Video Amplifi er Bandwidth ... 165 MHz Component Video Bandwidth ... 350 MHz Input DDC Signal ... 5 Volts p-p (TTL) Input Video Signal ... 1.2 Volts p-p Single Link Range ... 1080p/1920 x 1200 Analog Video In Connector 1 ... 3 RCA Component Analog Video In Connector 2 ...
  • Page 21 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
