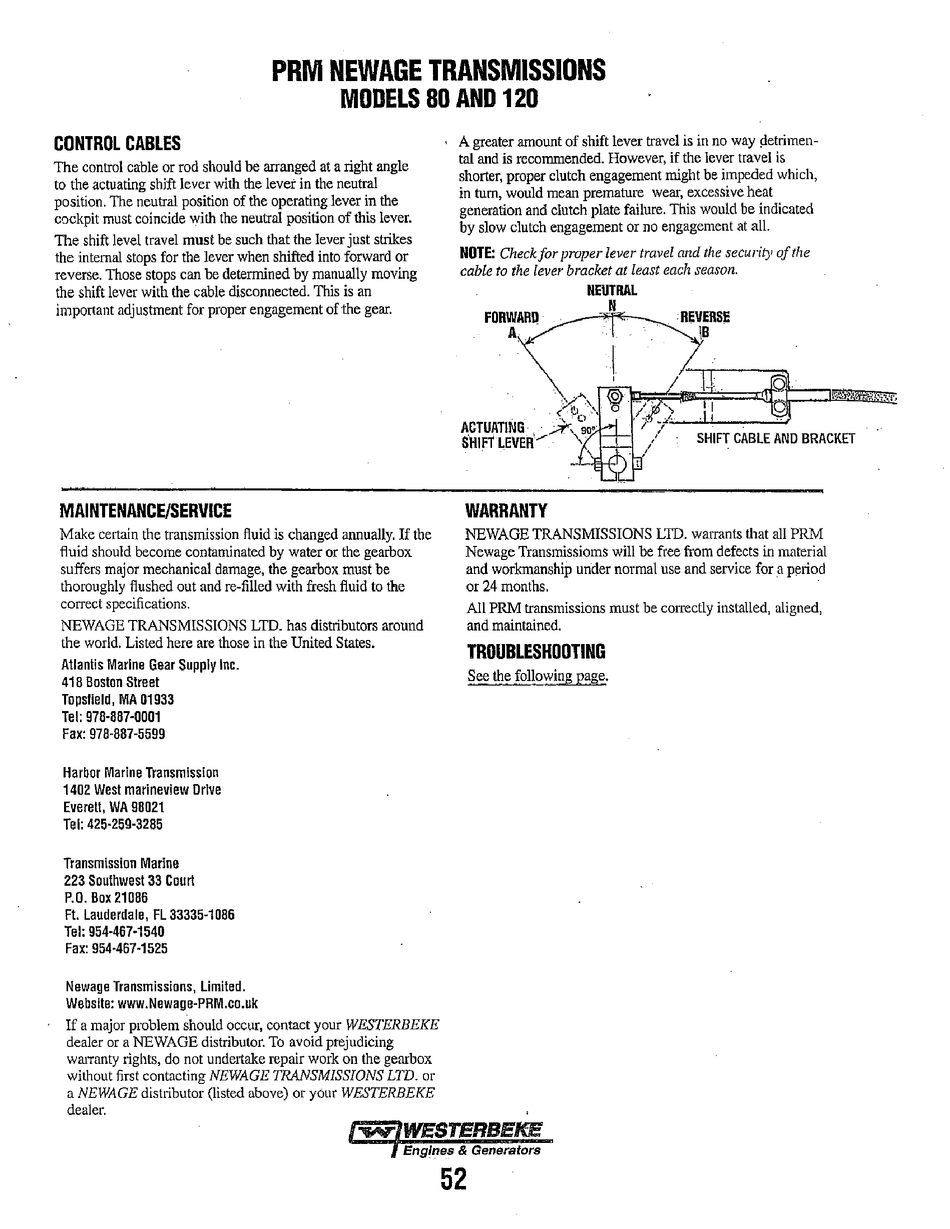

Westerbeke 12C- TWO Operator's Manual page 59

PRM NEWAGE TRANSMISSIONS
MODELS 80 AND 120
CONTROL CABLES
The control cable or rod should be arranged at a right angle
to the actuating shift lever with the lever in the neutral
position. The neutral position of the operating lever in the
cockpit must coincide with the neutral position of this lever.
The shift level travel must be such that the lever just strikes
the internal stops for the lever when shifted into forward or
reverse. Those stops can be determined by manually moving
the shift lever with the cable disconnected. This is an
important adjustment for proper engagement of the gear.
MAINTENANCE/SERVICE
Make celtain the transmission fluid is changed annually. If the
fluid should become contaminated by water or the gearbox
suffers major mechanical damage, the gearbox must be
thoroughly flushed out and re-filled with fresh fluid to the
correct specifications.
NEWAGE TRANSMISSIONS LTD. has distributors around
the world. Listed here are those in the United States.
Atlantis Marine Gear Supply Inc.
418 Boston Street
TopSfield, MA 01933
Tel: 978-887-0001
Fax: 978-887-5599
Harbor Marine Transmission
1402 West marineview Drive
Everett, WA 98021
Tel: 425-259-3285
Transmission Marine
223 Southwest 33 Court
P.O. Box 21086
Ft. Lauderdale, FL 33335-1086
Tel: 954-467-1540
Fax: 954-467-1525
Newage Transmissions, Limited.
Website: www.Newage-PRM.co.uk
If a major problem should occur, contact your
WESTERBEKE
dealer or a NEWAGE distributor. To avoid prejudicing
walTanty rights, do not undeltake repair work on the gearbox
without first contacting
NEWAGE TRANSMISSIONS LTD.
or
a
NEWAGE
distributor (listed above) or your
WESTERBEKE
dealer.
A greater amount of shift lever travel is in no way detrimen-
tal and is recommended. However, if the lever travel is
shorter, proper clutch engagement might be impeded which,
in turn, would mean premature wear, excessive heat
generation and clutch plate failure. This would be indicated
by slow clutch engagement or no engagement at all.
NOTE:
Checkfor proper lever travel and the security of the
cable to the lever bracket at least each season.
WARRANTY
NEWAGE TRANSMISSIONS LTD. walTants that all PRM
Newage Transmissioms will be free fTOm defects in material
and workmanship urider normal use and service for a
p~dod
or 24 months.
All PRM transmissions must be correctly installed, aligned,
and maintained.
TROUBLESHOOTING
See the following page.
'WY'
WESTERBEKE
Engines & Generators
52
