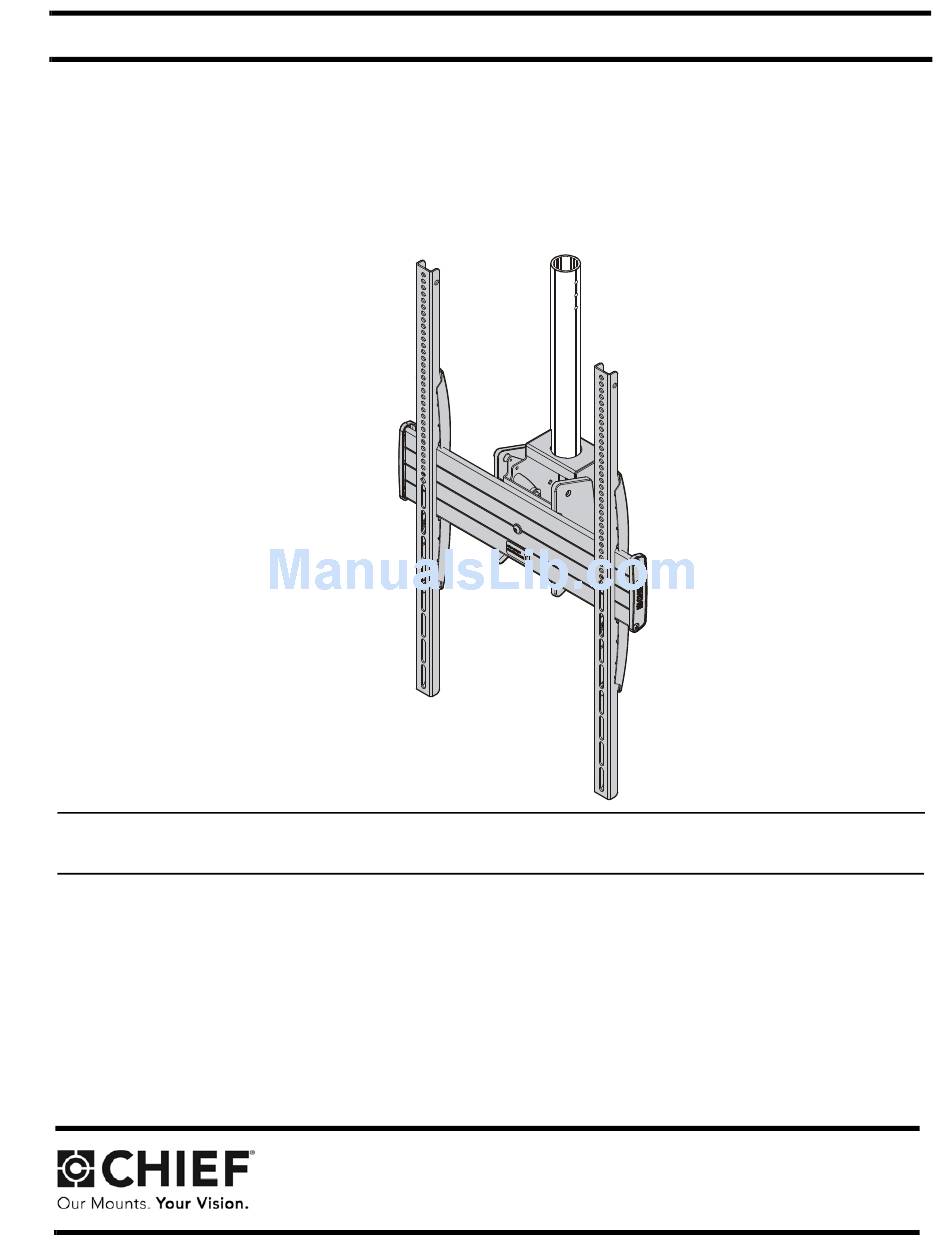

I N S T A L L A T I O N I N S T R U C T I O N S LCM1UP (Shown installed to CPA Series extension column as example only) Single Portrait Flat Panel Ceiling Mounts...
The information contained in this document is subject to change without notice or obligation of any kind. Milestone NOTE: The LCM1UP mounts are designed to be mounted to a makes no representation of warranty, expressed or implied, 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 regarding the information contained herein.
Installation Instructions LCM1UP TOOLS REQUIRED FOR INSTALLATION 3/32" (included) 1/8" (included) 5/32" (included) (included) 1/2" or 13mm PARTS [Interface Bracket Hardware Kit] Q (1) R (1) S (1) A (8) C (6) B (6) D (6) 3/32" 1/8" 5/32" M4x16mm...
Page 6
NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum-ASTM B221) threaded extension column with a minimum of four threads engaged (not included); or a UL Listed Chief Figure 2 CPA Series extension column (not included) -- has been properly installed and is in place.
Page 7
Installation Instructions LCM1UP Install and tighten two 5/16" x 3/4" set screws (X) through back of mount (CC) and against column. (See Figure 4) (L or M) (FF) (X) x 2 Figure 4 Attaching Interface Brackets to Display Lower the latch mechanism on each interface bracket (FF).
Page 8
LCM1UP Installation Instructions Attaching Display to Ceiling Mount Ensure that the latch mechanisms on interface brackets (Ceiling mount not shown for clarity) (FF) are already lowered. (See Figure 5) While supporting both sides of display, lower display onto ceiling mount, hooking top of interface brackets onto front of ceiling mount.
Page 9
Installation Instructions LCM1UP Tilt OPTIONAL: Security OPTIONAL: Add padlock (not included) to each interface The ceiling mounts allow -5° to 20° tilt. The ceiling mount can bracket to lock display to ceiling mount. (See Figure 12) be locked at 0°, 5°, 10° and 15° tilt.
Page 10
LCM1UP Installation Instructions Install back cover (DD) into four holes on back of ceiling mount. (See Figure 14) (DD) Figure 14 Install one side cover (EE) onto side of ceiling mount using two 10-24 x 1/2" flat head screws (W). (See Figure 15) Repeat for other side of ceiling mount.
Page 12
