Page 1

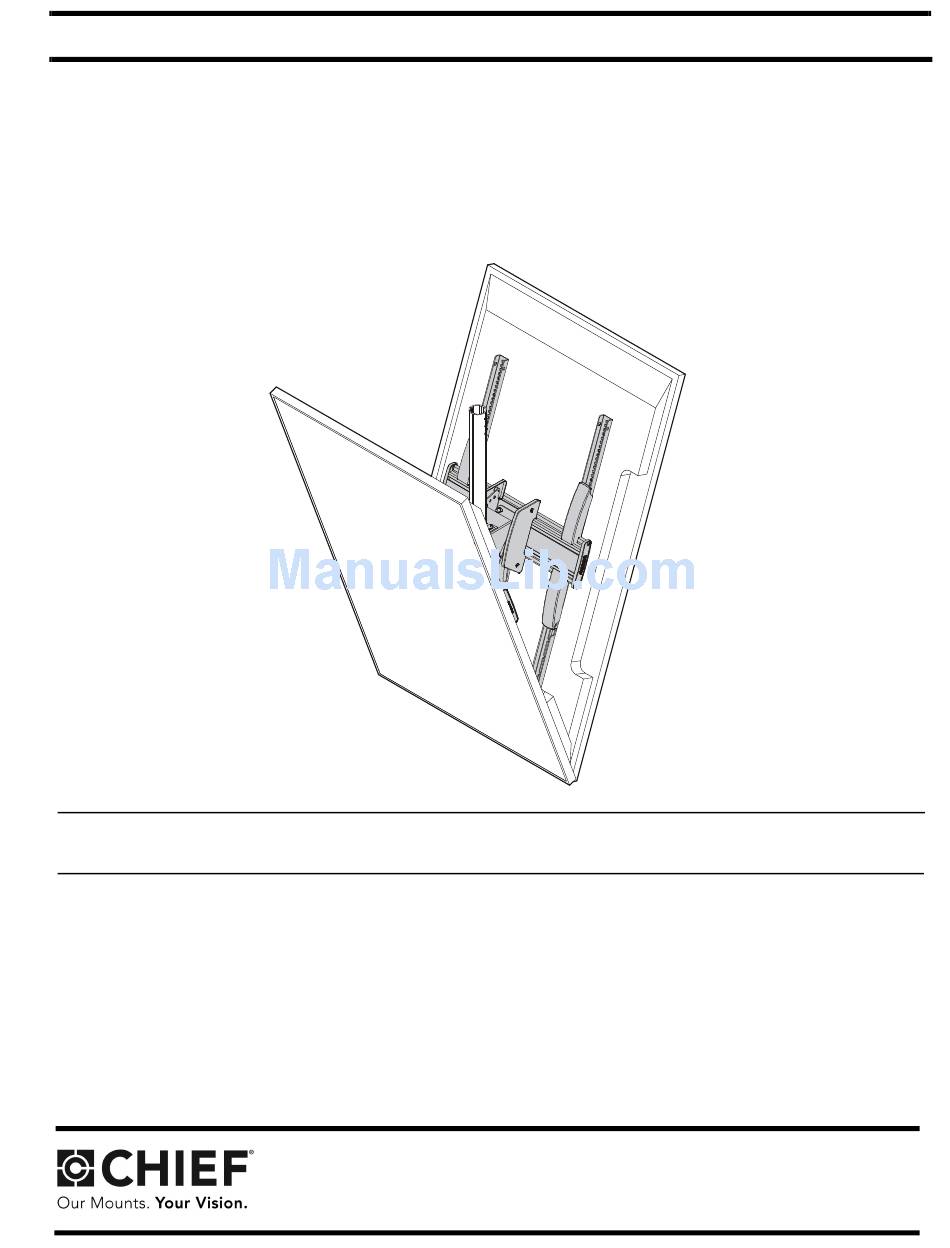

I N S T A L L A T I O N I N S T R U C T I O N S LCB1UP (Shown installed to CPA Series extension column as example only) Back-to-Back Flat Panel Portrait Ceiling Mount...
The information contained in this document is subject to change without notice or obligation of any kind. Milestone IMPORTANT ! : The LCB1UP mounts are designed to be makes no representation of warranty, expressed or implied, mounted to a 1-1/2" NPT or NPSM following ANSI/ASME regarding the information contained herein.
Installation Instructions LCB1UP TOOLS REQUIRED FOR INSTALLATION 3/32" (included) 1/8" (included) 5/32" (included) (included) 1/2" or 13mm PARTS [Interface Bracket Hardware Kit] (2 bags total - quantities listed per bag) A (8) D (6) C (6) B (6) R (1)
Page 6
NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum-ASTM B221) threaded extension column (not included); or a UL Listed Chief CPA Series extension column (not included) - - has been properly installed and is in place. NOTE:...
Page 7
Installation Instructions LCB1UP Install two 5/16" x 1" self-tapping screws (U) through two 5/16" flat washers (V), bottom stop collar (BB), and into installed column. Install and tighten 5/16" x 3/4" set screw (X) into bottom stop collar (BB). (See Figure 3) (L or M) Install and tighten two 5/16"...
Page 8
LCB1UP Installation Instructions Attaching Displays to Ceiling Mount (Ceiling mount not shown for clarity) Ensure that the latch mechanisms on interface brackets (FF) are already lowered. (See Figure 5) While supporting both sides of display, lower display onto ceiling mount, hooking top of interface brackets onto front of ceiling mount.
Page 9
Installation Instructions LCB1UP Tilt The ceiling mounts allow -5° to 20° tilt. The ceiling mount can (Z) x 2 be locked at 0°, 5°, 10° and 15° tilt. Loosen two tilt friction screws (located each side). (See Figure 10) (AA) x 2 Adjust tilt as required.
Page 10
LCB1UP Installation Instructions Installing Covers Install two interface bracket covers (GG) over the top and bottom of each interface bracket. (See Figure 13) (W) x 4 NOTE: Be sure to line up tabs inside the bracket covers with holes on sides of interface brackets. (See Figure 13)
Page 12
Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
