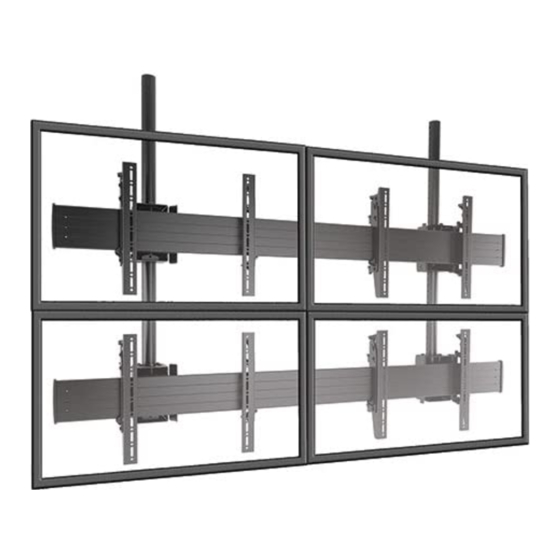

Summary of Contents for CHIEF LCM2X2

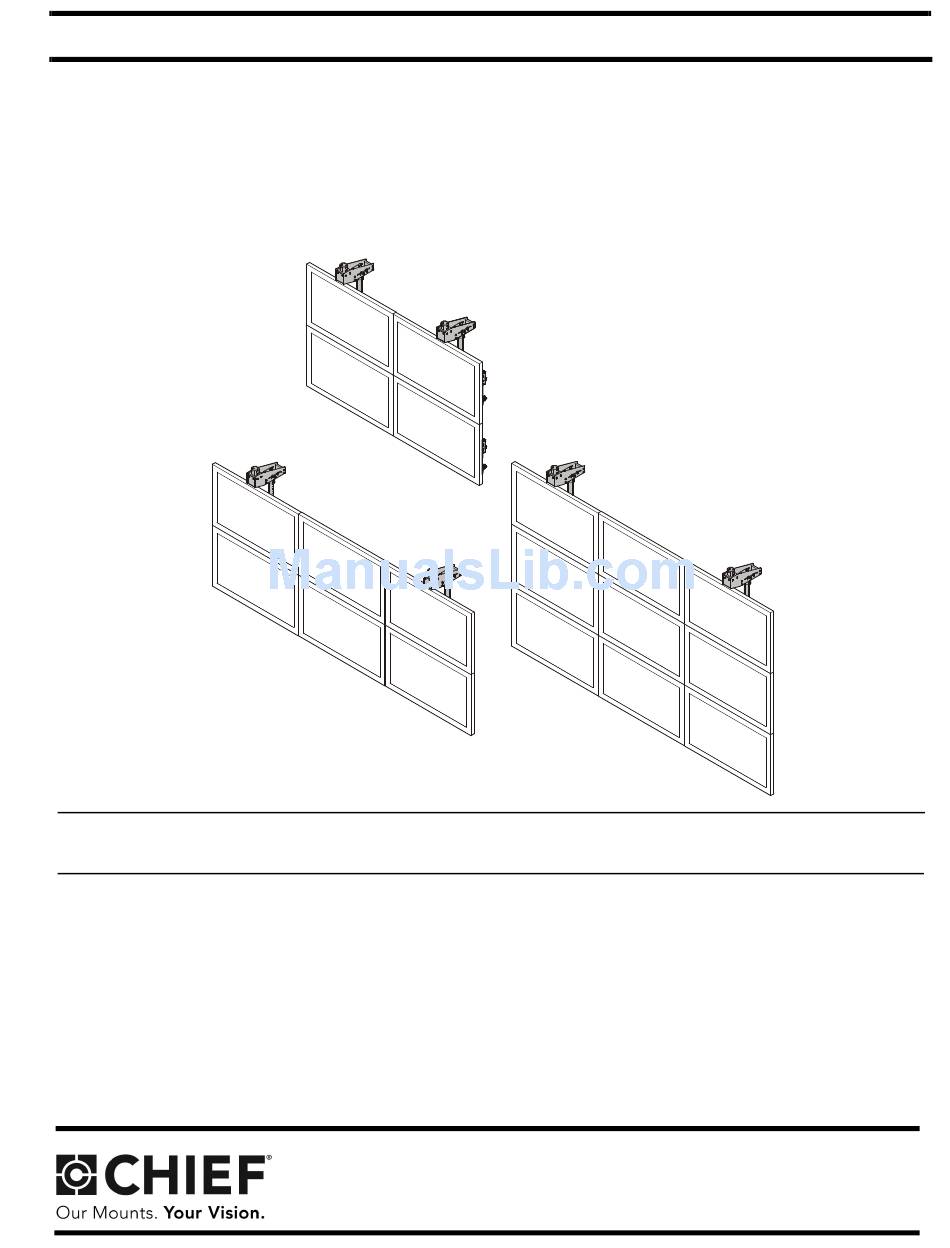

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S LCM2X2 LCM3X3 LCM3X2 Ceiling Mounted Video Walls Spanish Product Description German Product Description Portuguese Product Description...
-
Page 2: Important Safety Instructions
LCM2X2U 125 lbs 500 lbs (56.7 kg) (226.8 kg) Chief® is a registered trademark of Milestone AV Technologies. LCM3X2U 125 lbs 750 lbs All rights reserved. (56.7 kg) (340.2 kg) -
Page 3: Installation Instructions
Installation Instructions LCM Video Wall Series LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación... -
Page 4: Tools Required For Installation
TOOLS REQUIRED FOR INSTALLATION 1/2" 5/32" 1/2" 7/32" 1/2" (included) nut driver (included) PARTS [Quantities of parts noted as: LCM2X2/LCM3X2/LCM3X3] L (4/6/9) [Interface bracket-right] A (16/24/36) B (16/24/36) D (16/24/36) C (16/24/36) M6 x 12mm M6 x 16mm E (16/24/36) 1/4"... -
Page 5: Installation
Installation Instructions LCM Video Wall Series INSTALLATION Repeat for remaining array offset (N). IMPORTANT ! : Attaching Array Offset to Installed Column Refer to Dimensions section at end of instructions to find specific LCM video wall dimension NOTE: If the column attached to the ceiling plate is a 1-1/2" requirements BEFORE proceeding with installation. - Page 6 LCM Video Wall Series Installation Instructions Installing Interface Brackets to Displays Place displays face down on a soft, non-abrasive surface. CAUTION: Using screws of improper length may damage your display! Proper screws will have adequate thread engagement without contacting bottom of display mounting IMPORTANT ! : Screen width information is contained in holes.
- Page 7 Installation Instructions LCM Video Wall Series Adding Array Heads to Columns 2.44 2X2 / 3X2 Screen Arrangement 61.9 DISTANCE FROM BOTTOM OF COUPLING TO TOP OF COLUMN 48.00 APPROXIMATE C/L OF BOTTOM SCREEN 1219.2 COLUMN LENGTH APPROXIMATE ONE SCREEN HEIGHT 3.84 97.6 DIMENSIONS: INCHES...
- Page 8 LCM Video Wall Series Installation Instructions Lay columns (GG or JJ) on floor and carefully place display NOTE: Installation of hex head self-tapping screws will be next to columns. (See Figure 4) and (See Figure 5) easier when screws are carefully aligned with holes in extension column, and a drill and nut driver is used.
- Page 9 Installation Instructions LCM Video Wall Series Attaching Column Assembly to Array Offset Slide top T-slot nuts (AA) with attached lock nuts (DD) down into top openings on array head (X). (See Figure 11) Arrange column assembly so that the open side of the array head (X) is facing the back of the video wall.
- Page 10 LCM Video Wall Series Installation Instructions Adding Displays to Mounting Rails WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components located within the mounting system of the LCM Series model does not exceed maximum weights listed in table below.
- Page 11 Installation Instructions LCM Video Wall Series Adding Back Cover Add back cover (Y) to array head (X) by inserting four corner CAUTION: ALWAYS keep a small distance between tabs into four holes on back of array head. (See Figure 17) screens when making adjustments! Damage to screens possible if placed too close together.
- Page 12 LCM Video Wall Series Installation Instructions DIMENSIONS - LCM2X2 LCM2X2 72.83 1850.0 8.50 215.9 1.41 35.7 TO FRONT FACE OF ALUMINUM EXTRUSION...
- Page 13 Installation Instructions LCM Video Wall Series DIMENSIONS - LCM2X2 (continued) 14.50 LCM2X2 368.3 9.05 229.8 C/L OF SCREENS CENTER OF GRAVITY OF SCREENS SHOULD BE AS CLOSE IN LINE WITH THE UPPER COLUMN AS POSSIBLE COLUMNS SHOULD BE SPACED AT CENTER OR SLIGHTLY TO THE...
- Page 14 LCM Video Wall Series Installation Instructions DIMENSIONS - LCM3X2 LCM3X2 108.83 2764.4 6.80 172.7...
- Page 15 Installation Instructions LCM Video Wall Series DIMENSIONS - LCM3X2 (continued) LCM3X2 14.50 368.3 9.05 229.8 C/L OF SCREENS CENTER OF GRAVITY OF SCREENS SHOULD BE AS CLOSE IN LINE WITH THE UPPER COLUMN AS POSSIBLE COLUMNS SHOULD BE APPROXIMATELY SPACED AT CENTER OF OUTSIDE SCREENS (AS SHOWN) MAINTAIN SLIGHT GAP...
- Page 16 LCM Video Wall Series Installation Instructions DIMENSIONS - LCM3X2 (continued) LCM3X2 0.13 DIMENSIONS - LCM3X3 LCM3X3 108.83 2764.4...
- Page 17 Installation Instructions LCM Video Wall Series DIMENSIONS - LCM3X3 (continued) 14.50 LCM3X3 368.3 9.05 229.8 C/L OF SCREENS CENTER OF GRAVITY OF SCREENS SHOULD BE AS CLOSE IN LINE COLUMNS SHOULD BE APPROXIMATELY SPACED WITH THE UPPER COLUMN AS POSSIBLE AT CENTER OF OUTSIDE SCREENS (AS SHOWN) MAINTAIN SLIGHT GAP...
- Page 18 LCM Video Wall Series Installation Instructions DIMENSIONS - LCM3X3 (continued) LCM3X3 6.80 172.7 0.13...
- Page 19 Installation Instructions LCM Video Wall Series...
- Page 20 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
