Moxa Technologies Media Converter User Manual

Media Converter User's Guide
Second Edition, June 2008
1. Overview
MOXA Media Converter is a standalone physical layer device that
converts between 10/100BaseT(X) and 100BaseFX segments of the
same network. The converter supports Link Fault Pass-through for
easily tracing network link failures, and the LFP function enhances the
integrity and conformity of TP-Fiber linking to make the network
easier to maintain. ME51 is powered by an external power adaptor or
USB port on the hosting device (e.g., PC or NB). The option of using
USB port power, which is unique to ME51 for products of this type,
offers greater flexibility when deploying ME51 in the field.
2. Package Checklist
MOXA ME51 products are shipped with the following items:
• 1 ME51-M-SC, 1 ME51-M-ST or 1 ME-S-SC
• AC-DC Power Adapter
• ME51 User's Manual
Please notify your sales representative immediately if any of the above
items is missing or damaged
3. Model Description
ME51-M-SC: 10/100BaseT(X) to 100BaseFX media converter;
multi mode, SC type fiber connection
ME51-M-ST: 10/100BaseT(X) to 100BaseFX media converter;
multi mode, ST type fiber connection
ME51-S-SC: 10/100BaseT(X) to 100BaseFX media converter;
single mode, SC type fiber connection

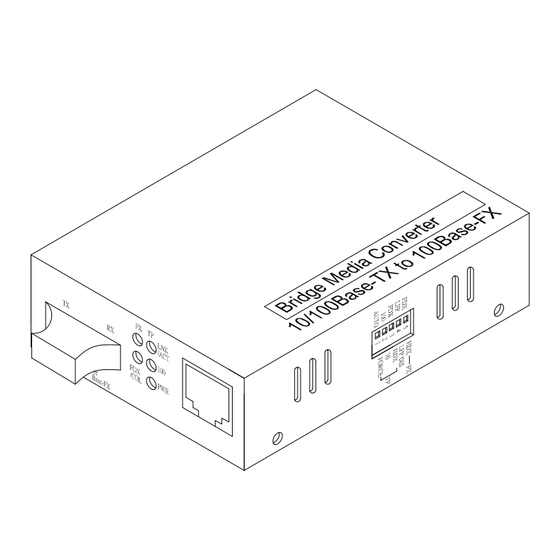

Panel Layout of ME51 series
• Front Panel View
FX TP
TX RX
LNK
/ACT
100
FDX
PWR
/COL
Bridge Media Converter
10/100Base-TX to 100Base-FX
—1—

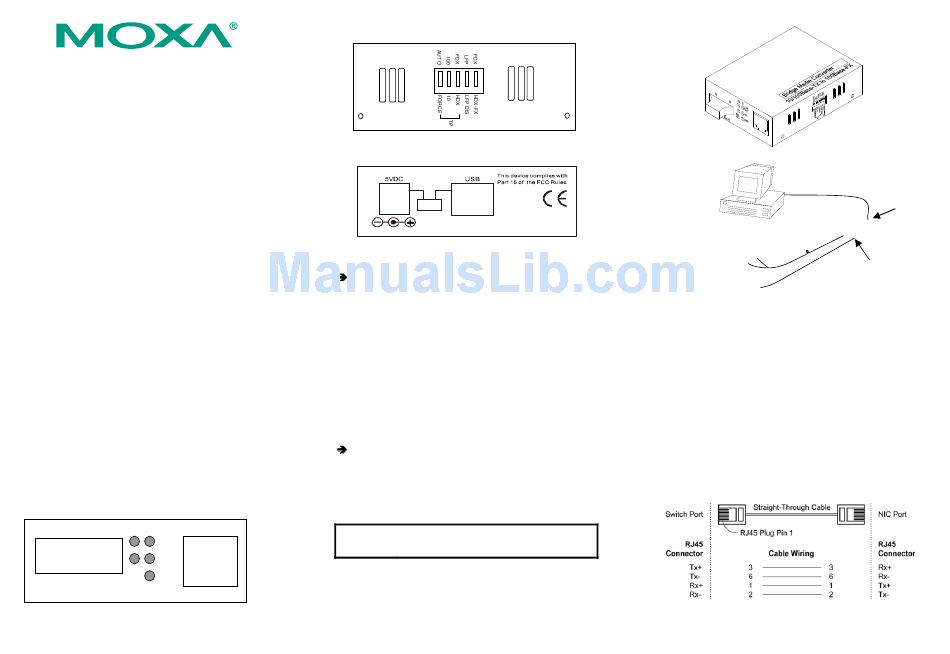

• Side Panel View
S1
1 2 3 4 5
• Rear Panel View
4. Wiring the Power Inputs
Note: The Media Converter is hot-swappable.
Wear a grounding device for electrostatic discharge
ME51 with AC-DC Power Adapter
1. Enabled power source from AC-DC Power Adapter by dip switch
setting(Refer to Chapter 6 dip switch setting)
2. Verify that the AC-DC adapter conforms to your country
AC power requirement and then insert the power plug
3. Connect ME51 for network connection.
ME51 with Self Powering Cable (USB)
Enable power source from USB by dip switch setting (Refer to Chapter
6 dip switch setting)
Note:
Please ensure that the dip switch is on the right side of
slide switch
Install USB cable. Plug type A connector in PC(NB)'s USB
and type B connector in the ME51's USB port (See Fig. 1)
Install the media cable for network connection
Warning: Please make sure that the power of PC/NB is
turned on, or else the ME51 will not work.
—2—
100FX Fiber
Network
10/100 Ethernet
Switch/NIC
ME51 with USB power source(Type B-to-Type A Plug) and
FX/TP connection
5. Communication Connection
ME51 models have one 10/100BaseT(X) Ethernet port, and one 100
BaseFX (SC or ST type connector) fiber port.
5.1 10/100BaseT(X) Ethernet Port Connection
ME51 supports auto MDI/MDI-X. Below we show pinouts for both MDI
(NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show
cable wiring diagrams for straight-through and cross-over Ethernet cables.
port(jack)
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring
USB A Type Jack
USB B Type Jack
USB Cable
Fiber Optic
RJ-45 Jack
Cat. 5 Cable
—3—
