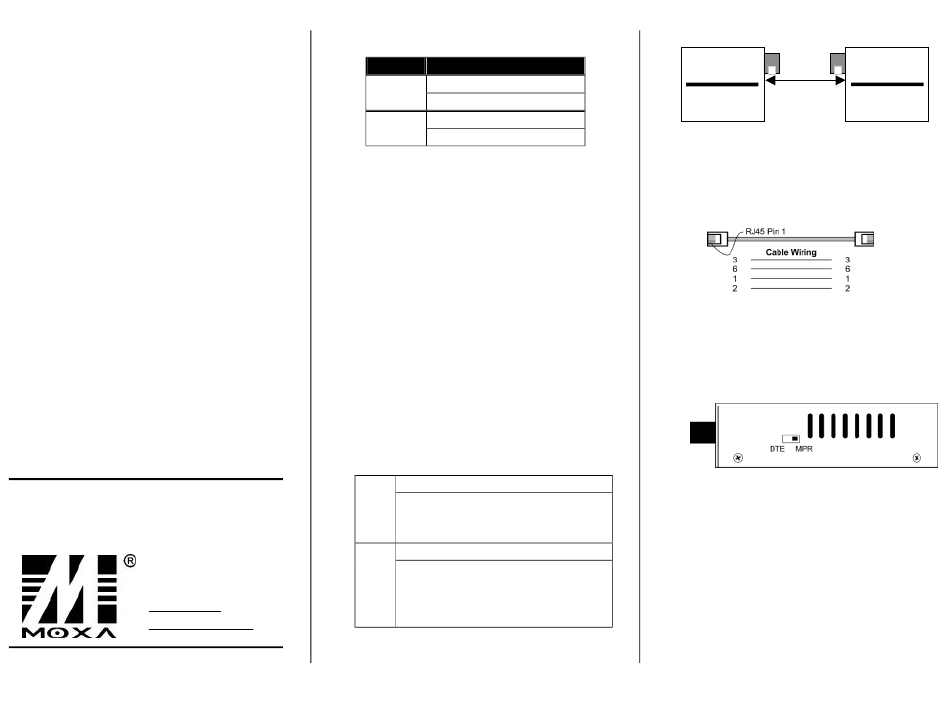

Moxa Technologies ME60A Hardware Installation Manual

Moxa Single-Strand Fiber Converter
Hardware Installation Guide
1. Introduction
IEEE802.3u 100 Mbps Fast Ethernet supports
two types of media for network connection:
10/100BaseT(X) and 100BaseFX. The
Single-Strand Fiber Converter (ME60) is designed
with an optic Wavelength Division Multiplexing
(WDM) technology that transports bi-directional
full duplex signals over a single- strand fiber cable
simultaneously.
100Base-X network allows 512-bit time delay
between any two node-stations in a collision
domain. This switch-based converter breaks up
the TP as well as Fiber segments' collision
domain and extends the cabling distance.
Copyright © 2003
Moxa Technologies Co., Ltd.
All rights reserved.
Reproduction without permission is prohibited.
Tel: +866-2-8919-1230
Fax: +886-2-8919-1231
www.moxa.com
support@moxa.com.tw
2. Model Descriptions
Model TX, RX Wavelength
TX (Transmit) 1310 nm
ME60A
RX (Receive) 1550 nm
TX (Transmit) 1550 nm
ME60B
RX (Receive) 1310 nm
Note:
ME60A/ME60B products must be installed in
pairs. I.e., install an ME60A at one end, and an
ME60B at the other end.
ME60A and ME60B can be identified by looking
at the labels on the products' side or back
3. Installing MOXA Single-Strand Fiber
Converter
Note:
The Single-Strand Fiber Converter Series is
hot-swappable.
Wear a grounding device to protect against
l
electrostatic discharge.
Verify that the AC-DC adapter conforms to your
l
country's AC power requirement and then
insert the power plug.
Install the media cable for network connection.
l
Attach the single-strand fiber cable
Fiber
Install ME60A and ME60B models at the
Port
ends of the single-strand fiber cable.
"100FDX" is only for WDM
Attach a Cat. 5 UTP cable to the TP port.
MPR: (Default): To a switch or hub
TP
DTE: To a workstation or NIC
Port
Note: The "DTE"/"MPR" slide switch is on
the side panel.
ME60A
WDM Single Fiber
TX-1310/RX-1550
Note for TP port cable connection:
Use a straight-through cable.
l
Cable pin-outs for RJ45 jack 1, 2, 3, 6 to 1, 2, 3,
6 are shown below:
panel.
Configure the MPR-DTE slide switch on the side
panel for connecting to a hub or NIC (Network
Interface Card).
MPR (Default): To a switch or hub
l
DTE: To a workstation or NIC (Network
l
Interface Card). (DTE pin-outs are set up as
crossover on the board)
ME60B
WDM Single Fiber
Single-Strand
TX-1550/RX-1310
Fiber
