I/O Port and Control Panel Connections

The I/O ports are color coded to make setting up your system easier. See Figure
5-1 below for the colors and locations of the various I/O ports.

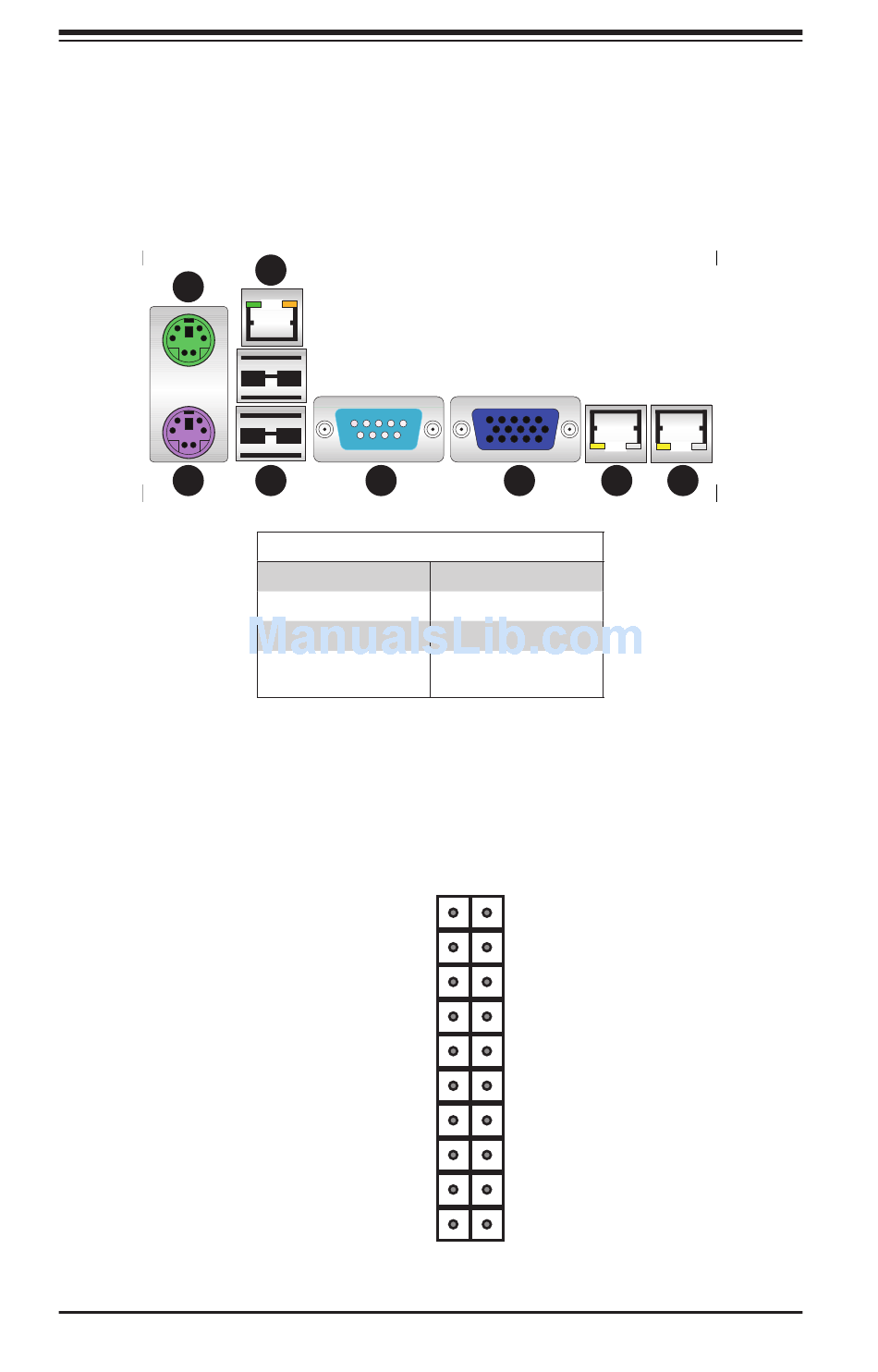

Figure 5-1. I/O Port Locations and Definitions
2
1

Front Control Panel

JF1 contains header pins for various front control panel connectors. See Figure 5-2
for the pin definitions of the various connectors. Refer to Section 5-7 for details.
Figure 5-2. JF1: Front Control Panel Header (JF1)
4
3 5
Rear I/O Ports
1. Keyboard
2. PS/2 Mouse
3. USB0/1
4. IPMI LAN
(H8SCM-F Only)
Ground
x (key)
Power LED
HDD LED
NIC1 (Link) LED
NIC2 (Link) LED
OH/Fan Fail LED
Power Fail LED
Ground
Ground
5-2
6
5. COM1
6. VGA Port
7. LAN1
8. LAN2
20 19
NMI
x (key)
3.3V
Vcc
NIC1 (Activity) LED
NIC2 (Activity) LED
Vcc
3.3V
Reset
Power
2 1
7 8
