Graphics Controller

The H8SCM-F features an integrated Matrox G200eW graphics chip, which includes
16 MB of DDR2 memory.

Other Features

Other onboard features that promote system health include voltage monitors, auto-
switching voltage regulators, chassis and CPU overheat sensors, Watch Dog/NMI,
Wake-On-LAN (WOL), virus protection and BIOS rescue.

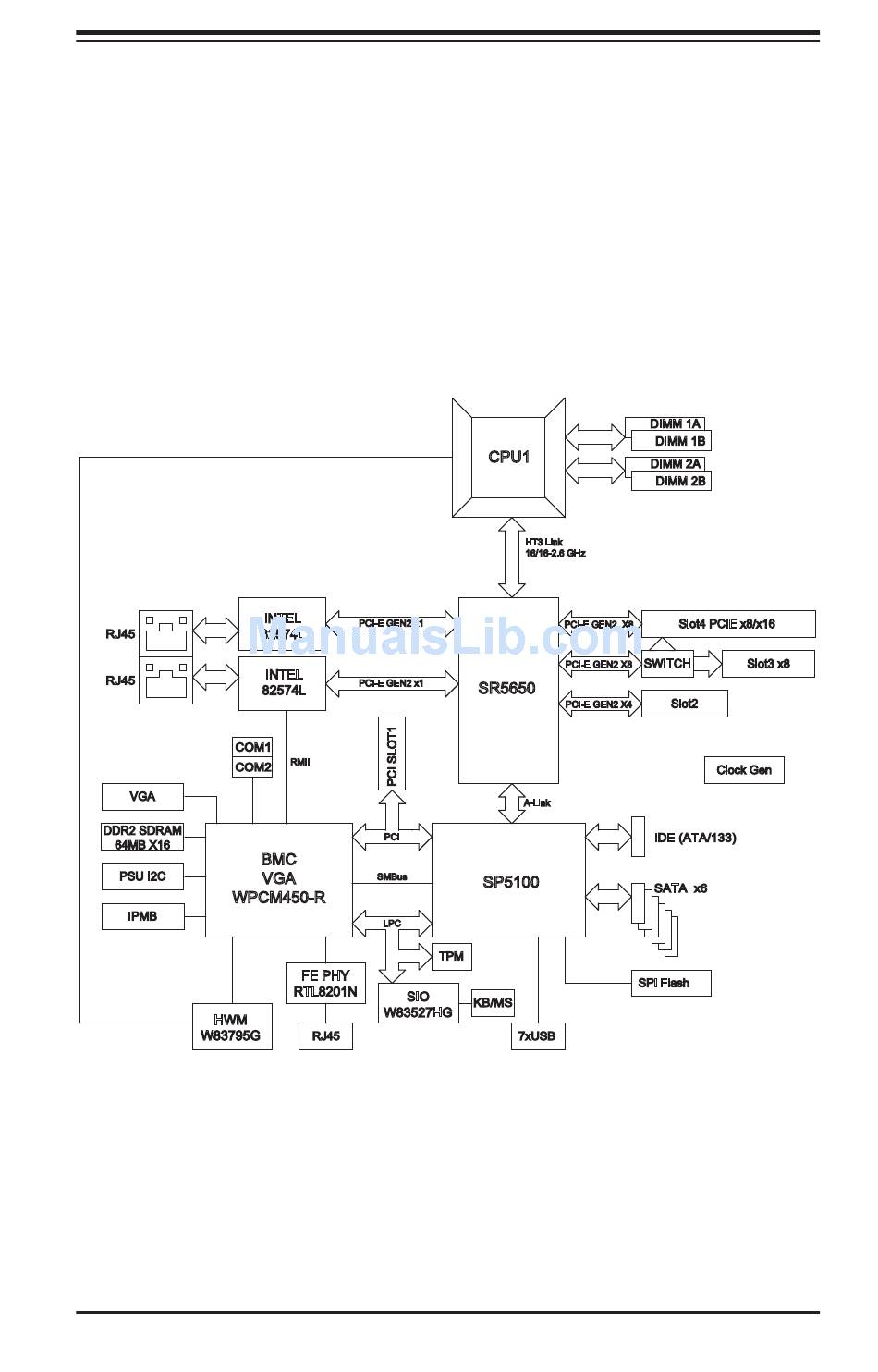

Figure 1-1. AMD SR5650/SP5100 Chipset: System Block Diagram
INTEL
82574L
RJ45
INTEL
RJ45
82574L
COM1
COM2
VGA
DDR2 SDRAM
64MB X16
BMC
VGA
PSU I2C
WPCM450-R
IPMB
HWM
W83795G
Note: This is a general block diagram. Please see Chapter 5 for details.
PCI-E GEN2 x1
PCI-E GEN2 x1
RMII
PCI
SMBus
LPC
TPM
FE PHY
RTL8201N
SIO
W83527HG
RJ45
1-3
Chapter 1: Introduction
CPU1
HT3 Link
16/16-2.6 GHz
PCI-E GEN2 X8
PCI-E GEN2 X8
SR5650
PCI-E GEN2 X4
A-Link
SP5100
SPI Flash
KB/MS
7xUSB
DIMM 1A
DIMM 1B
DIMM 2A
DIMM 2B
Slot4 PCIE x8/x16
SWITCH
Slot3 x8
Slot2
Clock Gen
IDE (ATA/133)
SATA x6
