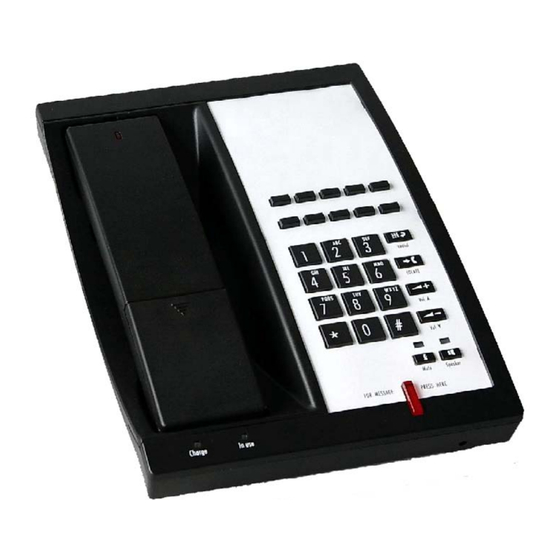

Telematrix 9600IP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

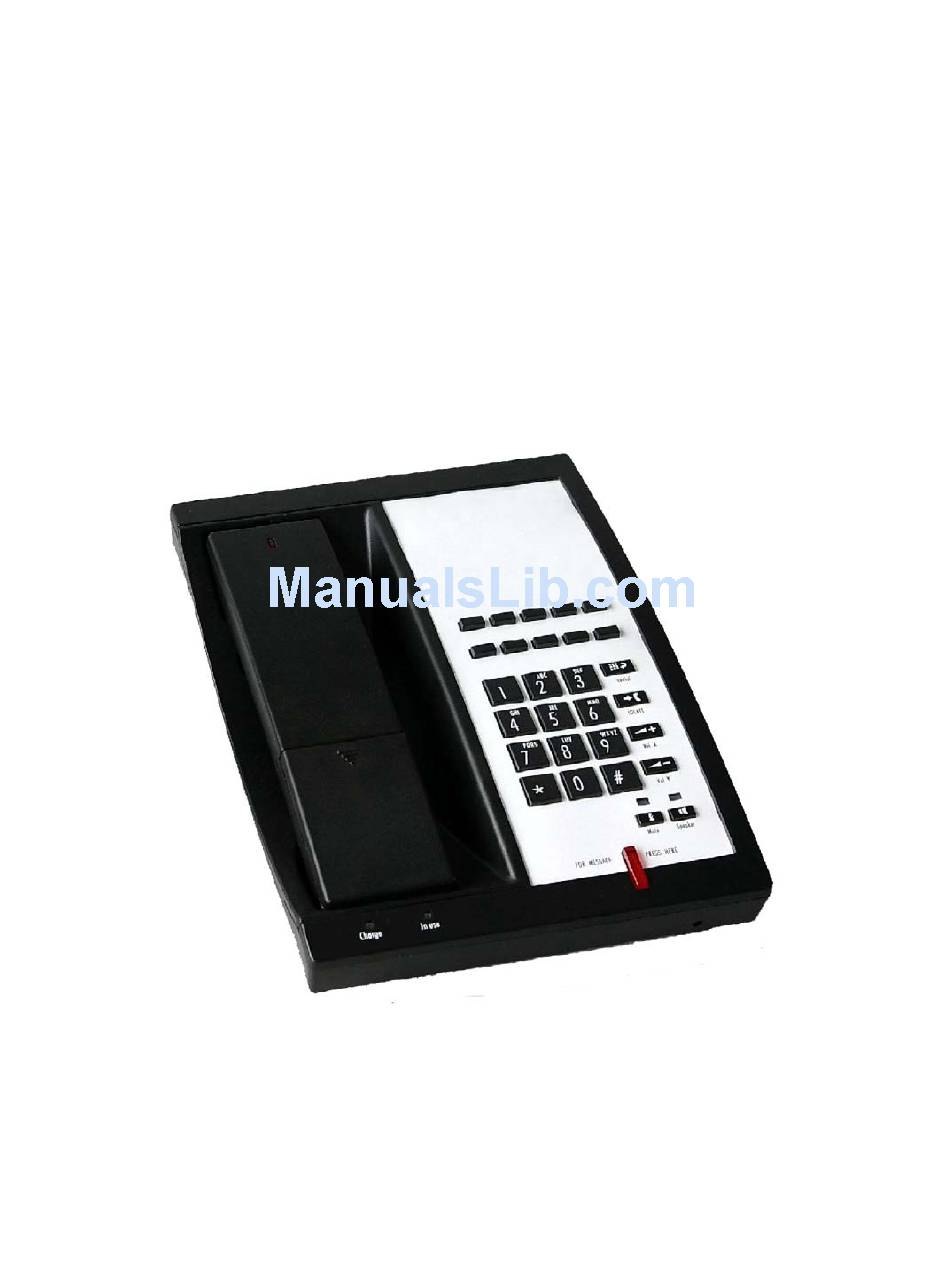

9600IP VOIP Phone
User Manual
TeleMatrix, Inc
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9600IP and is the answer not in the manual?

Questions and answers

Related Manuals for Telematrix 9600IP

Summary of Contents for Telematrix 9600IP

  • Page 1 9600IP VOIP Phone User Manual TeleMatrix, Inc...

  • Page 2: Table Of Contents

    Introduction…………………………………………………………………………5 1.1 Overview of Hardware…………………………………………………………..5 1.2 Overview of Software……………………………………………………………5 Keypad of 9600IP…………………………………………………….……………...6 2.1 Function Table of Keyboard …………………………………………………..6 2.2 Keyboard function and designed catalog………………………………………...7 3 Set the Phone Through WebBrowser……………………………………………….8 3.1 Login..…………………………………………………………………………..8 3.2 Current state……………………………………………………………………...8 3.3 Network…………………………………………………………………….……..9 3.3.1 Wan Config......................9 3.3.2 Lan Config…………………………………………………………………...11...
  • Page 3 4.2.1 Set WAN Interface…………………………………………………………31 4.2.2 SIP Setting………………………………………………………………….33 4.2.3 IAX Setting………………………………………………………………...34 4.3How to Use Dialing Rules……………………………………………………….34 4.4 Voice mail……………………………………………………………………….36 Under off-hook status: Dial “**47”, the phone broadcasts the IP address of Wan Dial “**85”, the phone broadcasts Vlan ID After the broadcast, please hang-up.
  • Page 4 Function Support two SIP server working at the same time Provide a Backup SIP Server Support NAT, Firewall Support DHCP assign IP address, etc automatically Support PPPoE（used while connecting ADSL，cable modem） It can update the program through HTTP ,FTP and TFTP Check the dynamic voice;...

  • Page 5: Introduction

    Introduction This is the user manual of 9600IP. Some configuration should be done before use the 9600IP phone, then it can work normally. This manual will illustrate how to set the phone through keyboard and web service. 1.1 Overview of Hardware 1.1.1...

  • Page 6: Keypad Of 9600Ip

    DTMF RFC 2833 HTTP DTMF SIP Info SIP Server Support two SIP server working at the same time Provide a Backup SIP Server 9600IP phone keyboard 2.1 Function Table of Keyboard 2.1.1 Function Table of Base Keyboard Name Status Function Store...

  • Page 7: Keyboard Function And Designed Catalog

    Dialing It can be regarded as the first number being dialed out or the end mark for ending number. 2.1.2 Function table of handset keyboard Name Status Function ON/OFF Switch for ON and OFF Hold Call Call waiting Mute Call Mute Dialing Re-dial the last called number...

  • Page 8: Set The Phone Through Webbrowser

    handset register mode, then the ON/OFF indicator light starts to flash, if then the base unit and handset have found each other, the Charge indicator light will stop flashing as well as the ON/OFF indicator light on the handset, and will give the prompt tone for successful registration.

  • Page 9: Network

    3.3 Network 3.3.1 Wan Config WAN port network setting page. Support static IP, dynamic obtain IP and PPPoE. Configure Static IP: ----Enable Static;...
  • Page 10 ----Set local DNS server in the Preferred DNS and the Alternate DNS。 Configure to dynamic obtain IP ----Enable DHCP; If there is DHCP server in your local network, 9600IP will automatically obtain WAN port network information from your DHCP server. Configure PPPoE: ----Enable PPPoE ----PPPoE server: Enter “ANY”...

  • Page 11: Lan Config

    3.3.2 LAN Config LAN IP Netmask: Set the IP and Netmask for the LAN DHCP Server: Enable DHCP service in LAN port; after user changed LAN IP, phone will automatically modify DHCP Lease Table and save the configure according to IP and netmask, DHCP server configure won’t take effect unless you reboot the device.
  • Page 12 Proxy Password: proxy server password Domain Realm: SIP domain, enter the sip domain if any, otherwise 9600IP will use the proxy server address as sip domain. Local SIP port: Local SIP register port, default 5060 Phone Number:...

  • Page 13: Iax2 Config

    Forward Photo Number：call the forwarded phone number. Detect Interval Time: Co-work with the Auto Detect Server, if Auto Detect Server is enable, 9600IP will periodically detect if the SIP server is available according this setting. User Agent: Encrypt Key: The particular service system decrypts of the key, matching with the...

  • Page 14: Advance

    Lease Table Name: Lease table name. Start IP: Start IP of lease table. End IP: End IP of lease table. Network device connecting to the 9600IP LAN port can dynamic obtain the IP in the range between start IP and end IP.

  • Page 15: Nat

    3.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. DHCP Lease Table：Show IP—MAC corresponding table assigned by DHCP server. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping.

  • Page 16: Stun

    DMZ Config ： 3.5.3 STUN This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: SIP STUN is used to realize SIP penetrates through NAT, when the phone configures IP and port of STUN server (default is 3478) and select Enable SIP Stun, common SIP server can be used to realize the phone to penetrate through NAT.

  • Page 17: Net Service

    Local SIP Port：The SIP port of this phone. Load：Load the choices of SIP line. Use Stun：Stun. Set the Stun that allows/forbids use user setting. 3.5.4 Net Service HTTP Port: configure HTTP transfer port; default is 80. User may change this port enhance system’s security.

  • Page 18: Firewall Settings

    Access list support two type limits: input_access limit or output_access limit. Each type support 10 items maximum. 9600IP firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:...

  • Page 19: Vlan Configuration

    3.5.6 VLAN Configuration 9600IP phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. 9600IP will sort the packets using the QoS and sends it to the destination. VLAN Enable: If enable the VLAN service, the second layer will realize separate voice, signal and data transmission.
  • Page 20 Digital Map is based on some rules to judge when user end their dialing and send the number to the server. 9600IP support following digital map: ----End With “#”: Use # as the end of dialing. ----Fixed Length: When the length of the dialing match, the call will be sent.

  • Page 21: Call Service Settings

    Enable Call Waiting: Enable/disable Call Waiting Enable Three Way Call: Please refer to Value_add_service for detail. Accept Any Call: If this option is disable, 9600IP refuse the incoming call when the called number is different from 9600IP’s phone number. No Answer Time: no answer call forward time setting.

  • Page 22: Memory Key

    This page layout shows the number setting of Voice mail and speed-dial key. 3.5.10 MMI Filter MMI filter is used to make access limit to 9600IP phone. When MMI filter is enable. Only IP address within the start IP and end IP can access 9600IP phone.

  • Page 23: Audio Settings

    3.5.11 Audio Settings CODEC: select the prefer CODEC; support ulaw, alaw, G729 and G7231 5.3/6.3 Signal Standard: Signal standard for different area. Handdown Time: hand down detect time. Input Volume: Handset in volume. Output Volume: Handset out volume. Handfree Volume: Hand free volume G729 Payload Length: G729 payload length VAD:...

  • Page 24: Dial-Peer Dial Rule Setting

    L2TP VPN Server Addr： register to the address of VPN server VPN User Name： L2TP VPN username VPN Password： L2TP VPN password UDPTunnel: use the UDP to visit VPN L2TP: use the L2TP to visit VPN Enable VPN: Enable the VPN server, you must choose UDP or L2TP type in advance Notice: At the present, L2TP only support L2TP VPN server under Linux, UDP only support a private UDP VPN server.

  • Page 25: Config Manage

    Config Manage Save Config: save current settings. Clear Config: restore to default settings. Backup Config: Backup the config file, via point the right key of mouse- save target as….- will pop a save window, then type the config file name in the File name (the file type is text file) Update Configuration: Update the current configuration through configuration files.

  • Page 26: Update Firmware

    Config file export: export the config file Config file import: import the config file 9600IP phone support FTP and TFTP auto update, the gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe above.

  • Page 27: Auto Update

    3.8.2 Auto Update Current Version: the system will display the current version number Server Address: FTP/TFTP server address Username: FTP server user name Password: FTP server password Config File Name: The name of configuration file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file.

  • Page 28: System Manage

    <<VOIP CONFIG FILE>>Version:1.0007 <GLOBLE CONFIG MODULE> ConfFile Version：7 3.9 System Manage 3.9.1 Account Manage Set web access account or keypad password of 9600IP.

  • Page 29: Syslog Config

    3.9.2 Syslog config Set the system log Server IP: set the syslog server address Server Port: set the syslog server port MGR Log Level: set the MGR log level SIP Log Level: set the SIP log level IAX2 Log Level: set the IAX2 log level Please click “apply”...

  • Page 30: Mmi Set

    Server: type the IP address of time server Timezone: select correct time zone in list box Timeout: longest response time for SNTP Daylight: Daylight saving time SNTP: select SNTP server 12 Hours Format: select 12 hours format Manual Config: The time setting 3.9.5 MMI SET Set the greeting information on LCD.

  • Page 31: Operating Method For Dialing

    Set the phone being connected to server 4.2.1 Set the WAN interface The connection ways of entering the Network WAN Config layout phone of the net port: 9600IP could be connected to Internet by using the static IP, DHCP IP, or PPPoE dialing.
  • Page 32 Use the configure to dynamic obtain IP to get IP address: ----choose DHCP option. Now, if the network has DHCP server, then 9600IP will get IP address, Netmask, Gateway, Primary DNS and Alter DNS from this DHCP server automatically. Use PPPoE dialing to connect the Internet:...

  • Page 33: Sip Setting

    ----please fill in the account and password which PPPoE have dialed in the PPPoE Username and Password. So 9600IP could connect the Internet through PPPoE dialing, and automatically get IP address, Netmask, Gateway, Primary DNS and Alter DNS and so on .

  • Page 34: Iax Setting

    Note: please choose Save Config in the Config Manage after setting the information, or the existing setting information will be failed after rebooting.. How to use the dial rule? 9600IP provide flexible dial rule, with different dial-rule configure, user can easily...
  • Page 35 implement the following function: ----Replace, delete or add prefix of the dial number. ----Make direct IP to IP call ----Place the call to different servers according the prefix. You can click “Add” to add a new dial rule. Below is the detail setting of the dial-rule: Phone Number: The Number suit for this dial rule, can be set as full match or prefix match.

  • Page 36: Voice Mail

    2T rule: If the call starts with 2, the first 2 will be deleted, and the rest number will be sent to private SIP server. 3T rule: If the call starts with 3, the first 3 will be deleted, and the rest number with be sent to public SIP server.
  • Page 37 Addendum 4 December 2008 This is the process to auto-upgrade firmware on the 9600IP: • Plug a phone in to one or multiple ports of the 24-port POE switch connected to the PC running DHCP/TFTP (tftpd32.exe) • Wait for the warble tone (doodle doodle) •...
  • Page 38 Config File without comments. Cut Paste and Substitute your values <<VOIP CONFIG FILE>>Version:2.0003 <AUTOUPDATE CONFIG MODULE> Auto Image Server :192.168.10.25 Auto Image Name :21b4V1_7_235_235T20081203121150.z Auto Image User Auto Image Password: Auto Image Protocol:2 <AUTOUPDATE CONFIG MODULE> Download Username :user Download password :pass Download Server IP :0.0.0.0 Config File Name Config File Key...
