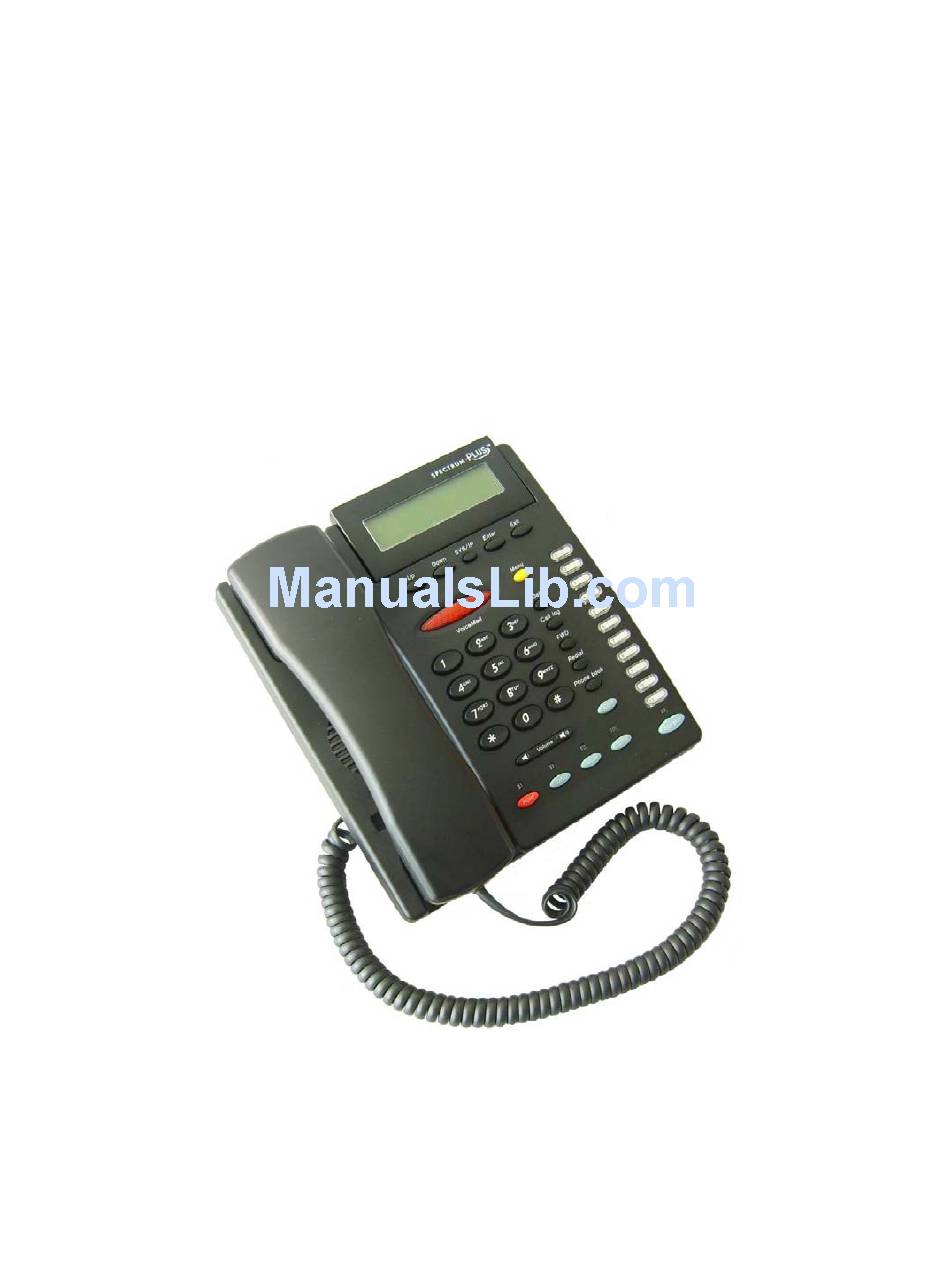

IP550 VoIP Phone
User Manual
TeleMatrix, Inc
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP550 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telematrix IP550

Summary of Contents for Telematrix IP550

  • Page 1 IP550 VoIP Phone User Manual TeleMatrix, Inc...

  • Page 2: Table Of Contents

    1 Introduction ......................5 1.1 Overview of Hardware ..................5 1.2 Overview of Software ..................5 2 Keypad of IP550 .....................6 2.1 Function Table of Keyboard ................6 2.2 Keyboard function and designed catalog ............9 3 Set the Phone Through WebBrowser ...............12 3.1 Login ........................13 3.2 Current state ....................13...
  • Page 3 3.8 Update Firmware ....................31 3.8.1 Update .......................31 3.8.2 Auto Update ....................32 3.9 System Manage ....................33 3.9.1 Account Manage ..................33 3.9.2 Syslog Config ....................33 3.9.3 Phone Book ....................34 3.9.4 Time Set ....................34 3.9.5 MMI SET ....................35 3.9.6 Logout & Reboot ..................35 4 Operating Method for Dialing ................36 4.1 How to dial IP Phone ..................36 4.2 Set the Phone to Server .................36...
  • Page 4 Function Support two SIP server working at the same time Provide a Backup SIP Server Support NAT, Firewall Support DHCP assign IP address, etc automatically Support PPPoE（used while connecting ADSL，cable modem） It can update the program through HTTP ,FTP and TFTP Check the dynamic voice;...

  • Page 5: Introduction

    Introduction This is the user manual of IP550. Some configuration should be done before use the IP550 phone, then it can work normally. This manual will illustrate how to set the phone through keyboard and web service. 1.1 Overview of Hardware 1.1.1...

  • Page 6: Keypad Of Ip550

    DTMF RFC 2833 HTTP DTMF SIP Info SIP Server Support two SIP server working at the same time Provide a Backup SIP Server Handset key of IP550 2.1 Function table of keystroke Name Status Function/Display config Choose the Config Page（Roll up）...
  • Page 7 Static/DHCP/PPPoE：display IP address of WAN port SIP：display whether to register SIP account or not SIP SERVER：display SIP server address Gateway：display subnet mask NetMask：display gateway 2.1.5 Three-way conference call Suppose the user of the IP550 phone is A, and if user B through VoIP...
  • Page 8 The “Call Transfer”in the “Call ServerEnable”should be in chosen mode(the default one is chosen mode). Suppose the user of IP550 is user A, and user B called user A，during the communication, user B want to make a call to user C, then user A should press FWD, after that user A can call user C through dialing numbers.

  • Page 9: Keyboard Function And Designed Catalog

    prompt, and you will add the new contacts into the menu. 3. Search Searching for contact Press key “ENTER” to enter, and then input the name of contact and be confirmed, that is contact searched and contact information displayed. 2.1.10 The use of Memory key 1、Method for Storing a) Press "memory"...
  • Page 10 3、Menu catalog： 1) Network 2) Call Feature 3) SIP 4) DSP 5) System 6) Other Setting 2.2.1 Network： 2.2.1.1 Bridge Mode Netmask DHCP Server Switch DNS Relay Switch FTPalg PPPTPalg 2.2.1.2 WAN Status Static Net NetMask Gateway DNS2 PPPoE User name Password 2.2.2 Call Feature 2.2.2.1 Phone-number...
  • Page 11 2.2.2.5 Three Talk 2.2.2.6 Call-Transfer 2.2.2.7 Call-Waiting 2.2.2.8 Call-Forward 1) Condition 2) SIP Transfer Num Transfer IP Port 2.2.2.9 Dial-Rule 1) End With # 2) Fixed Length Switch Length 2.2.3 SIP 2.2.3.1 Reg Status 1) Public Reg 2) Private Reg 2.2.3.2 Reg Switch 1) Public 2) Private...

  • Page 12: Set The Phone Through Webbrowser

    LAN interface of the phone, and set the computer IP on the same net with the phone IP or make it gets IP automatically . Then open the IE, input the phone IP address in the address field, t you will enter web setting page of phone IP550. 3.1 Login：...

  • Page 13: Current State

    3.2 Current state This page layout shows the work state of VoIP phone. The network part shows the connection state of WAN interface and LAN interface and the network setting; the work state of Public SIP service of VoIP part, and here you can see the registration and whether registered to the server or not.
  • Page 14 ----Set local DNS server in the Preferred DNS and the Alternate DNS。 Configure to dynamic obtain IP ----Enable DHCP; If there is DHCP server in your local network, IP550 will automatically obtain WAN port network information from your DHCP server. Configure PPPoE:...
  • Page 15 ----PPPoE server: Enter “ANY” if no specified from your ITSP. ----Enter PPPoE username and pin in the username and password. IP550 will automatically obtain WAN port network information from your ITSP if PPPoE setting and the setup are correct. Notice: If user accesses the IP phone through WAN port. He/She should use the new...

  • Page 16: Lan Config

    3.3.2 LAN Config LAN IP Netmask: Set the IP and Netmask for the LAN DHCP Server: Enable DHCP service in LAN port; after user changed LAN IP, phone will automatically modify DHCP Lease Table and save the configure according to IP and netmask, DHCP server configure won’t take effect unless you reboot the device.
  • Page 17 Proxy Password: proxy server password Domain Realm: SIP domain, enter the sip domain if any, otherwise IP550 will use the proxy server address as sip domain. Local SIP port: Local SIP register port, default 5060 Phone Number:...

  • Page 18: Iax2 Config

    DTMF Mode: DTMF signal sending mode: support RFC2833, DTMF_RELAY (inband audio) and SIP info RFC Protocol Edition: Current IP550 SIP version. Set to RFC 2543 if the gate need to communicate to devices (such as CISCO5300) using the SIP 1.0. Default is RFC 3261.

  • Page 19: Advance

    Lease Table Name: Lease table name. Start IP: Start IP of lease table. End IP: End IP of lease table. Network device connecting to the IP550 LAN port can dynamic obtain the IP in the range between start IP and end IP.

  • Page 20: Nat

    3.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. DHCP Lease Table：Show IP—MAC corresponding table assigned by DHCP server. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping.

  • Page 21: Stun

    DMZ Config ： 3.5.3 STUN This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: SIP STUN is used to realize SIP penetrates through NAT, when the phone configures IP and port of STUN server (default is 3478) and select Enable SIP Stun, common SIP server can be used to realize the phone to penetrate through NAT.

  • Page 22: Net Service

    Local SIP Port：The SIP port of this phone. Load：Load the choices of SIP line. Use Stun：Stun. Set the Stun that allows/forbids use user setting. 3.5.4 Net Service HTTP Port: configure HTTP transfer port; default is 80. User may change this port enhance system’s security.

  • Page 23: Firewall Settings

    Access list support two type limits: input_access limit or output_access limit. Each type support 10 items maximum. IP550 firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:...

  • Page 24: Vlan Configuration

    3.5.6 VLAN Configuration IP550 phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. IP550 will sort the packets using the QoS and sends it to the destination. VLAN Enable: If enable the VLAN service, the second layer will realize separate voice, signal and data transmission.
  • Page 25 Digital Map is based on some rules to judge when user end their dialing and send the number to the server. IP550 support following digital map: ----End With “#”: Use # as the end of dialing. ----Fixed Length: When the length of the dialing match, the call will be sent.

  • Page 26: Call Service Settings

    Enable Call Waiting: Enable/disable Call Waiting Enable Three Way Call: Please refer to Value_add_service for detail. Accept Any Call: If this option is disable, IP550 refuse the incoming call when the called number is different from IP550’s phone number. No Answer Time: no answer call forward time setting.

  • Page 27: Memory Key

    This page layout shows the number setting of Voice mail and speed-dial key. 3.5.10 MMI Filter MMI filter is used to make access limit to IP550 phone. When MMI filter is enable. Only IP address within the start IP and end IP can access IP550 phone.

  • Page 28: Vpn

    CODEC: select the prefer CODEC; support ulaw, alaw, G729 and G7231 5.3/6.3 Signal Standard: Signal standard for different area. Handdown Time: hand down detect time. Input Volume: Handset in volume. Output Volume: Handset out volume. Handfree Volume: Hand free volume G729 Payload Length: G729 payload length VAD: Enable/disable Voice Activity Detection...

  • Page 29: Dial-Peer Dial Rule Setting

    VPN User Name： L2TP VPN username VPN Password： L2TP VPN password UDPTunnel: use the UDP to visit VPN L2TP: use the L2TP to visit VPN Enable VPN: Enable the VPN server, you must choose UDP or L2TP type in advance Notice: At the present, L2TP only support L2TP VPN server under Linux, UDP only support a private UDP VPN server.

  • Page 30: Config Manage

    Config Manage Save Config: save current settings. Clear Config: restore to default settings. Backup Config: Backup the config file, via point the right key of mouse- save target as….- will pop a save window, then type the config file name in the File name (the file type is text file) Update Configuration: Update the current configuration through configuration files.

  • Page 31: Update Firmware

    Config file export: export the config file Config file import: import the config file IP550 phone support FTP and TFTP auto update, the gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe above.

  • Page 32: Auto Update

    3.8.2 Auto Update Current Version: the system will display the current version number Server Address: FTP/TFTP server address Username: FTP server user name Password: FTP server password Config File Name: The name of configuration file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file.

  • Page 33: System Manage

    <<VOIP CONFIG FILE>>Version:1.0007 <GLOBLE CONFIG MODULE> ConfFile Version：7 3.9 System Manage 3.9.1 Account Manage Set web access account or keypad password of IP550.

  • Page 34: Syslog Config

    3.9.2 Syslog config Set the system log Server IP: set the syslog server address Server Port: set the syslog server port MGR Log Level: set the MGR log level SIP Log Level: set the SIP log level IAX2 Log Level: set the IAX2 log level Please click “apply”...

  • Page 35: Mmi Set

    Server: type the IP address of time server Timezone: select correct time zone in list box Timeout: longest response time for SNTP Daylight: Daylight saving time SNTP: select SNTP server 12 Hours Format: select 12 hours format Manual Config: The time setting 3.9.5 MMI SET Set the greeting information on LCD.

  • Page 36: Operating Method For Dialing

    Set the phone being connected to server 4.2.1 Set the WAN interface The connection ways of entering the Network WAN Config layout phone of the net port: IP550 could be connected to Internet by using the static IP, DHCP IP, or PPPoE dialing.
  • Page 37 Use the configure to dynamic obtain IP to get IP address: ----choose DHCP option. Now, if the network has DHCP server, then IP550 will get IP address, Netmask, Gateway, Primary DNS and Alter DNS from this DHCP server automatically. Use PPPoE dialing to connect the Internet:...

  • Page 38: Sip Setting

    ----please fill in the account and password which PPPoE have dialed in the PPPoE Username and Password. So IP550 could connect the Internet through PPPoE dialing, and automatically get IP address, Netmask, Gateway, Primary DNS and Alter DNS and so on .

  • Page 39: Iax Setting

    Note: please choose Save Config in the Config Manage after setting the information, or the existing setting information will be failed after rebooting.. How to use the dial rule? IP550 provide flexible dial rule, with different dial-rule configure, user can easily...
  • Page 40 implement the following function: ----Replace, delete or add prefix of the dial number. ----Make direct IP to IP call ----Place the call to different servers according the prefix. You can click “Add” to add a new dial rule. Below is the detail setting of the dial-rule: Phone Number: The Number suit for this dial rule, can be set as full match or prefix match.

  • Page 41: Voice Mail

    2T rule: If the call starts with 2, the first 2 will be deleted, and the rest number will be sent to private SIP server. 3T rule: If the call starts with 3, the first 3 will be deleted, and the rest number with be sent to public SIP server.
