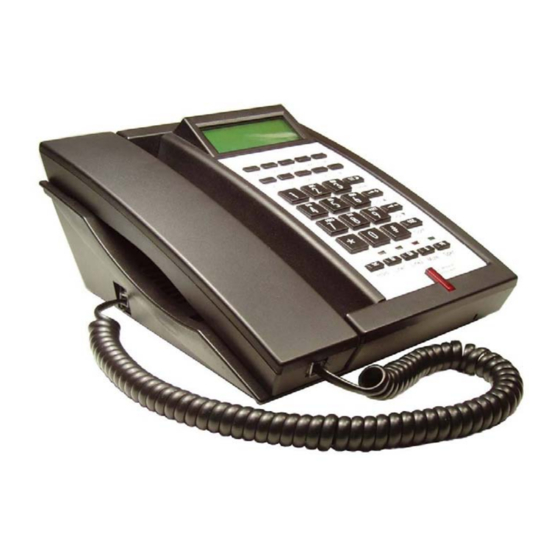

Telematrix 3300IP User Manual

3300ip voip phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

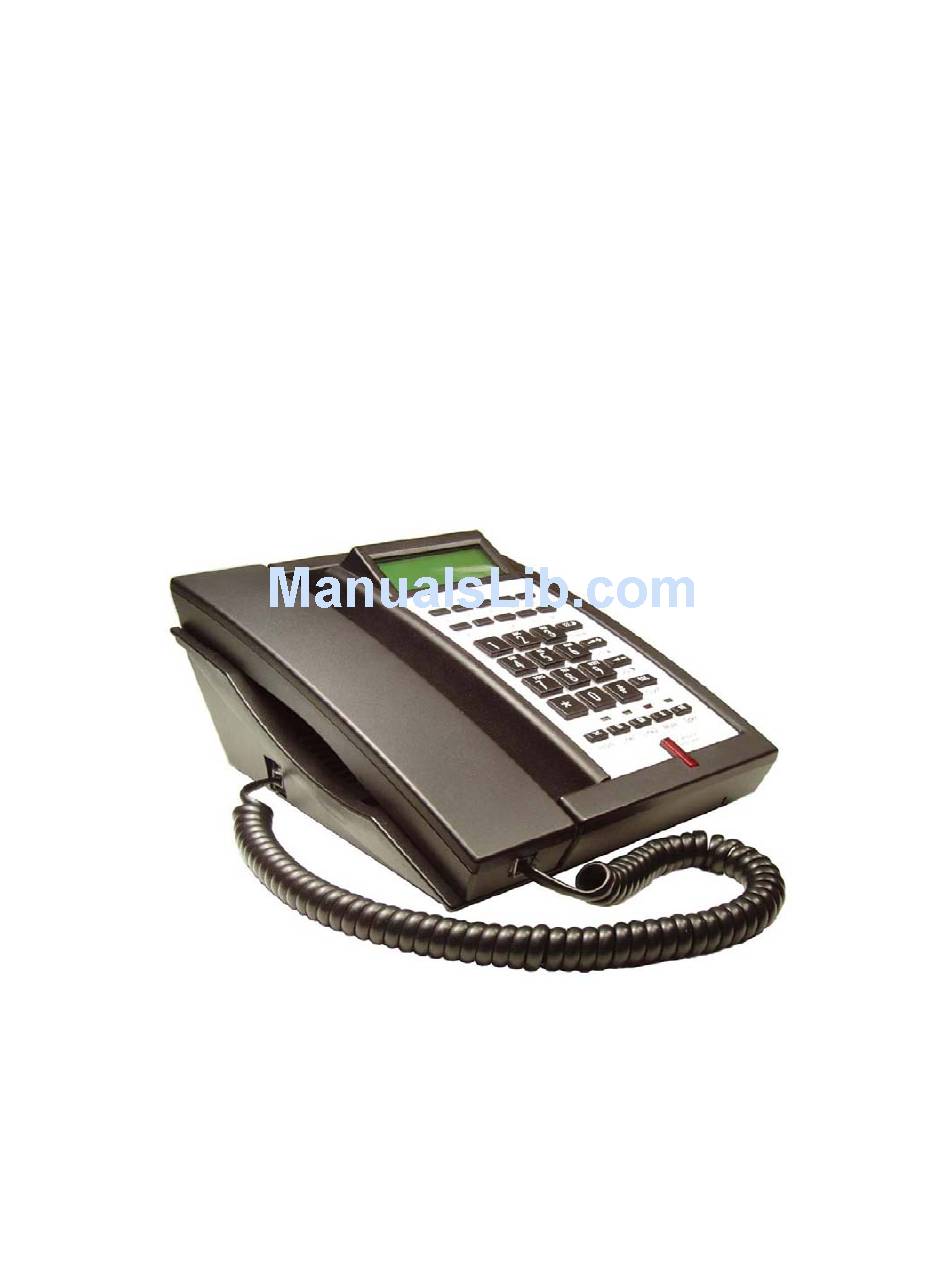

3300IP VOIP Phone
User Manual
TeleMatrix, Inc
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3300IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telematrix 3300IP

Summary of Contents for Telematrix 3300IP

  • Page 1 3300IP VOIP Phone User Manual TeleMatrix, Inc...

  • Page 2: Table Of Contents

    Introduction…………………………………………………………………………5 1.1 Overview of Hardware…………………………………………………………..5 1.2 Overview of Software……………………………………………………………5 Keypad of 3300IP…………………………………………………….……………...6 2.1 Function Table of Keyboard …………………………………………………..6 2.2 Keyboard function and LCD Menu catalog……………………………………..7 3 Program the Phone via a WebBrowser…….……………………………………...10 3.1 Login..…………………………………………………………………………..10 3.2 Current state…………………………………………………………………….10 3.3 Network………………………………………………………………………….11 3.3.1 WAN Config....................11 3.3.2 LAN Config………………………………………………………………...13...
  • Page 3 4.2.1 Set WAN Interface…………………………………………………………33 4.2.2 SIP Setting………………………………………………………………….35 4.2.3 IAX Setting………………………………………………………………...36 4.3How to Use Dialing Rules……………………………………………………….36 4.4 Voice mail……………………………………………………………………….38 Reset to Factory Default: To reset the phone to the factory default settings, press “#” during the startup procedure ( At power up you can see a black progress bar). The phone will enter into “post” mode, then input “...
  • Page 4 Functions Support two SIP servers working at the same time Provide a Backup SIP Server Support NAT (Network Address Translation), Firewall Support DHCP assignment IP addresses, etc automatically Support PPPoE（used while connecting ADSL，cable modem） Supports program updates through HTTP ,FTP and TFTP Check the dynamic voice;...

  • Page 5: Introduction

    1. Introduction This is the user manual for the 3300IP VoIP Phone. Some configuration and set-up is required before using the 3300IP. This manual will illustrate how to set the phone through keyboard and web service. 1.1 Overview of Hardware 1.1.1...
  • Page 6 TFTP DTMF RFC 2833 HTTP DTMF SIP Info SIP Server Support two SIP server working at the same time Provide a Backup SIP Server 2 3300IP phone keyboard 2.1 Keys functions Keys Function/Display Mode calling increase the volume mode Volume +...

  • Page 7: Keypad Of 3300Ip

    dialing “1” mode config “1”, “space”, “@”, “_”, “-”, “/”, “%” mode dialing “2” mode config “2”, “a”, “b”, “c”, “A”, “B”, “C” mode dialing “3” mode config “3”, “d”, “e”, ”f”, “D”, “E”, “F” mode dialing “4” mode config “4”, “g”, “h”, “I”, “G”, “H”, “I”...

  • Page 8: Keyboard Function And Lcd Menu Catalog

    calling Realize the 3-way conference call by pressing mode # under the Hold mode dialing dial as the first number or finish number sign mode 2.1.1 Voice Control Press “VOL+”to increase the volume and press “VOL-”to decrease. 2.1.2 Hold Function When you are in communication on one line and also another line, you can switch between calls using the “Hold”...
  • Page 9 DNS Relay Switch FTPalg PPPTPalg 2.2.1.2 Status Static Net NetMask Gateway DNS2 PPPoE User name Password 2.2.2 Call Feature 2.2.2.1 Phone-number 1) Public SIP 2) Private SIP 2.2.2.2 Limit-List 1) Current 2) ADD 3) DEL 2.2.2.3 Black-List 1) Current 2) ADD 3) DEL 2.2.2.4 FastCall...
  • Page 10 2.2.3 SIP 2.2.3.1 Reg Status 1) Public Reg 2) Private Reg 2.2.3.2 Reg Switch 1) Public 2) Private 2.2.3.3 Server 1) Public 2) Private 2.2.3.4 Domain 1) Public 2) Private 2.2.3.5 User Agent 1) Public 2) Private 2.2.3.6 Detect-server 2.2.3.7 Dtmf-mode 2.2.3.8 Interval-time...

  • Page 11: Program The Phone Via A Webbrowser

    3 Programming the phone via a web browser Insert one end of an Ethernet cable into the network interface of your computer, then insert the other end to the LAN interface of the phone (jack furthest from the handset). The phones usually come defaulted to have an address of 192.168.10.1.

  • Page 12: Network

    Supports static IP assignment, DHCP (to dynamically obtain an IP address) and PPPoE. Configure Static IP: ----Enable Static; ----Set 3300IP’s IP address in the IP Address; ----Set network mask in the Netmask field; ----Set router IP address in the Gateway; ----DNS Domain: ----Set local DNS server in the Preferred DNS and the Alternate DNS。...
  • Page 13 Configure PPPoE: ----Enable PPPoE ----PPPoE server: Enter “ANY” if none is specified from your ITSP (service provider). ----Enter PPPoE username and pin in the username and password. The IP Phone will automatically obtain WAN port network information from your ITSP if PPPoE setting and the setup are correct.

  • Page 14: Lan Config

    LAN Config 3.3.2 LAN IP Netmask: Set the IP and Netmask for the LAN DHCP Server: Enable DHCP service in LAN port; after user changes LAN IP, phone will automatically modify DHCP Lease Table and save the configuration according to IP and netmask, DHCP server configuration will not take effect until you reboot the device.
  • Page 15 Proxy Password: proxy server password Domain Realm: SIP domain, enter the sip domain if any, otherwise 3300IP will use the proxy server address as sip domain. Local SIP port: Local SIP register port, default 5060 Phone Number:...

  • Page 16: Iax2 Config

    DTMF Mode: DTMF signal sending mode: support RFC2833, DTMF_RELAY (inband audio) and SIP info RFC Protocol Edition: Current 3300IP SIP version. Set to RFC 2543 if the gate need to communicate to devices (such as CISCO5300) using the SIP 1.0. Default is RFC 3261.

  • Page 17: Advance

    Lease Table Name: Lease table name. Start IP: Starting IP address of lease table. End IP: Ending IP address of lease table. Network device connecting to the 3300IP LAN port can dynamically obtain an IP address in the scope/range between start IP and end IP.

  • Page 18: Nat

    3.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. DHCP Lease Table：Show IP—MAC corresponding table assigned by DHCP server. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping.

  • Page 19: Stun

    DMZ Config ： 3.5.3 STUN This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: SIP STUN is used to realize SIP penetrates through NAT, when the phone configures IP and port of STUN server (default is 3478) and select Enable SIP Stun, common SIP server can be used to realize the phone to penetrate through NAT.

  • Page 20: Net Service

    Local SIP Port：The SIP port of this phone. Load：Load the choices of SIP line. Use Stun：Stun. Set the Stun that allows/forbids use user setting. 3.5.4 Net Service HTTP Port: Configure the HTTP transfer port; default is 80. User may change this port to enhance system’s security.

  • Page 21: Firewall Settings

    Access list support two type limits: input_access limit or output_access limit. Each type support 10 items maximum. 3300IP firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:...

  • Page 22: Qos Settings

    DiffServ Enable: If enable the VLAN service, it indicates use DSCP mode to realize three layers QoS. This moment, the DSCP of SIP signals which between 3300IP Phone and MGC. It will use Class Selector 5 (The value is 0xA0). And the DSCP of mediums information (In RTP packets) would be used the values of DiffServ Value field.
  • Page 23 Digital Map is based on some rules to judge when user end their dialing and send the number to the server. 3300IP support following digital map: ----End With “#”: Use # as the end of dialing. ----Fixed Length: When the length of the dialing match, the call will be sent.

  • Page 24: Call Service Settings

    Enable Call Waiting: Enable/disable Call Waiting Enable Three Way Call: Please refer to Value_add_service for detail. Accept Any Call: If this option is disable, 3300IP refuse the incoming call when the called number is different from 3300IP’s phone number. No Answer Time: no answer call forward time setting.

  • Page 25: Memory Key

    This page layout shows the number setting of Voice mail and speed-dial key. MMI Filter 3.5.10 MMI filter is used to make access limit to 3300IP phone. When MMI filter is enable. Only IP address within the start IP and end IP can access 3300IP phone.

  • Page 26: Audio Settings

    Audio Settings 3.5.11 CODEC: select the prefer CODEC; support ulaw, alaw, G729 and G7231 5.3/6.3 Signal Standard: Signal standard for different area. Handdown Time: hand down detect time. Input Volume: Handset in volume. Output Volume: Handset out volume. Handfree Volume: Hand free volume G729 Payload Length: G729 payload length VAD:...

  • Page 27: Dial-Peer Dial Rule Setting

    L2TP VPN Server Addr： register to the address of VPN server VPN User Name： L2TP VPN username VPN Password： L2TP VPN password UDPTunnel: use the UDP to visit VPN L2TP: use the L2TP to visit VPN Enable VPN: Enable the VPN server, you must choose UDP or L2TP type in advance Notice: At the present, L2TP only support L2TP VPN server under Linux, UDP only support a private UDP VPN server.

  • Page 28: Config Manage

    Config Manage Save Config: save current settings. Clear Config: restore to default settings. Backup Config: Backup the config file, via point the right key of mouse- save target as….- will pop a save window, then type the config file name in the File name (the file type is text file) Update Configuration: Update the current configuration through configuration files.

  • Page 29: Update

    Config file export: export the config file Config file import: import the config file 3300IP phone support FTP and TFTP auto update, the gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe above.

  • Page 30: Auto Update

    3.8.2 Auto Update Current Version: the system will display the current version number Server Address: FTP/TFTP server address Username: FTP server user name Password: FTP server password Config File Name: The name of configuration file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file.

  • Page 31: System Manage

    <<VOIP CONFIG FILE>>Version:1.0007 <GLOBAL CONFIG MODULE> ConfFile Version：7 3.9 System Manage 3.9.1 Account Manage Set web access account or keypad password of 3300IP.

  • Page 32: Syslog Config

    3.9.2 Syslog config Set the system log Server IP: set the syslog server address Server Port: set the syslog server port MGR Log Level: set the MGR log level SIP Log Level: set the SIP log level IAX2 Log Level: set the IAX2 log level Please click “apply”...

  • Page 33: Mmi Set

    Server: type the IP address of time server Timezone: select correct time zone in list box Timeout: longest response time for SNTP Daylight: Daylight saving time SNTP: select SNTP server 12 Hours Format: select 12 hours format Manual Config: The time setting 3.9.5 MMI SET Set the greeting information on LCD.

  • Page 34: Operating Method For Dialing

    Set the phone being connected to server 4.2.1 Set the WAN interface The connection ways of entering the Network WAN Config layout phone of the net port: 3300IP could be connected to Internet by using the static IP, DHCP IP, or PPPoE dialing.
  • Page 35 Use the configure to dynamic obtain IP to get IP address: ----choose DHCP option. Now, if the network has DHCP server, then 3300IP will get IP address, Netmask, Gateway, Primary DNS and Alter DNS from this DHCP server automatically. Use PPPoE dialing to connect the Internet:...

  • Page 36: Sip Setting

    ----please fill in the account and password which PPPoE have dialed in the PPPoE Username and Password. So 3300IP could connect the Internet through PPPoE dialing, and automatically get IP address, Netmask, Gateway, Primary DNS and Alter DNS and so on .

  • Page 37: Iax Setting

    Note: please choose Save Config in the Config Manage after setting the information, or the existing setting information will be failed after rebooting.. How to use the dial rule? 3300IP provide flexible dial rule, with different dial-rule configure, user can easily...
  • Page 38 implement the following function: ----Replace, delete or add prefix of the dial number. ----Make direct IP to IP call ----Place the call to different servers according the prefix. You can click “Add” to add a new dial rule. Below is the detail setting of the dial-rule: Phone Number: The Number suit for this dial rule, can be set as full match or prefix match.

  • Page 39: Voice Mail

    2T rule: If the call starts with 2, the first 2 will be deleted, and the rest number will be sent to private SIP server. 3T rule: If the call starts with 3, the first 3 will be deleted, and the rest number with be sent to public SIP server.
