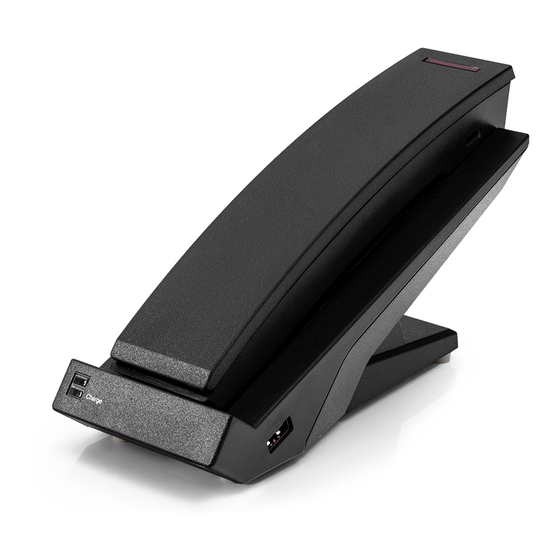

Cordless IP Phone
User Manual
For model:
9700IP/9702IP
NDC2110S/NDC2210S
Version: V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9700IP and is the answer not in the manual?

Questions and answers

Related Manuals for Telematrix 9700IP

Summary of Contents for Telematrix 9700IP

  • Page 1 Cordless IP Phone User Manual For model: 9700IP/9702IP NDC2110S/NDC2210S Version: V1.0...

  • Page 2: Table Of Contents

    1. INTRODUCTION ....................5 1.1HARDWARE OVERVIEW ............5 1.2 SOFTWARE OVERVIEW ............5 2 PHONE MENU SETTINGS ..................7 2.1 KEY FEATURES ..............7 3 THE OPERATION METHOD OF TELEPHONE ..........9 3.1 HOW TO MAKE A PHONE CALL? ..........9 3.1.1 Basic call ................
  • Page 3 4.6.3 User Management ..............30 4.6.4 System Actions ..............31 4.6.5 DECT ................31 SHORTCUT KEYS .................... 32 6 WARNING ......................33...
  • Page 4 The phone started, get Provisioning Server address by DHCP Server, then the phone LED lights flashing, and issued a "beep beep" prompt tone, "Config ID". Through the digital keyboard input after the ID, and then enter the "#", then the opportunity to Provisioning Server automatically load the configuration file, automatically restart after the success;...

  • Page 5: Introduction

    1. INTRODUCTION This is the 9602IP network telephone user manual. Before the use of 9602IP phone,you need to make some phone configuration for normal use. This book illustrateshow to use keyboard and Web phone service configuration page. 1.1H ARDWARE OVERVIEW The default WAN port is a DHCP client, the user connects it to the ADSL orWAN port switch, LAN port connects to the computer;...
  • Page 6   Call forward Web Browser   Caller ID Keypad DTMF Firmware Upgrade   IN Band TFTP   RFC2833 HTTP   SIP Info  HTTPS...

  • Page 7: Phone Menu Settings

    2 PHONE MENU SETTINGS Using the web configuration page: familiar with the PC usercan use the method to configure the phone. Sequentially press the"**47#" button, then the phonewill voice broadcast addressIP. Directly in the browser address bar entering the address of theIP phone can log in web page, enter the login name: admin,password: admin 2.1 KEY FEATURES The user can use the table below to confirm the key and hardware function.
  • Page 8 Conversation Increase the receiver volume Volume+ Stand-by Increase the ringer volume Conversation Decrease the receiver volume Volume- Stand-by Decrease the ringer volume Stand-by Line1 state (only for two-line model) Line1 Stand-by Line2 state (only for two-line model) Line2 Conversation Mute Mute Redial Dialing...

  • Page 9: The Operation Method Of Telephone

    3 THE OPERATION METHOD OF TELEPHONE HOW TO MAKE A PHONE CALL You could make a phone call after the phone configuration items are set up.Please check if the cable is properly connected before use. 3.1.1 Basic call 1. Making the call by handset After the handset is placed off-hook, dial and use “#”...

  • Page 10: Mute

    3.1.4 Mute During the call, if you do not want to let them hear your own voice, youcan press "Mute"key, so that the other party cannot hear your voice, andyou can hear the sound of other end. 3.1.5 Memory Key In addition to serving as a storage function, but also can be used as hold, DND,transfer and conference function.

  • Page 11: Toggle Between Base Unit And Handset

    “Message” LED on base unit will stop blinking and the “Message” LED on handset will also stop blinking and emit the prompt sound of successful registration. Note: each base unit can register up to 5 handsets. 3.1.11 Toggle between Base Unit and Handset When the base unit is in conversation, press “Line1”/“Line2”...

  • Page 12: Network Setting

    4.2 N ETWORK ETTING You can get the network information of phone in the page. 4.2.1 WAN Setting WAN port setting page. WAN port supports the static IP, dynamic allocation IP and PPPoE.

  • Page 13: Basic Setting

    4.2.1.1 Basic Setting Basic Setting Select the network mode of WAN port; the default is DHCP Network Mode Configure the WAN port network connection mode Link mode Set the main DNS address Primary DNS Set the secondary DNS address Secondary DNS 4.2.1.2DHCP If your local network has a DHCP server, 3302IP phone can get WAN networkinformation from the DHCP server.

  • Page 14: 3Static Ip Setting

    4.2.1.3Static IP Setting Static IP setting(WAN port network mode is set to Static IP) Set static IP address Static IP Address Set subnet mask with static IP Subnet Mask Set the default gateway with static IP Default Gateway 4.2.1.4 PPPoE Setting PPPoE Setting (Required if Network Mode is set to PPPoE) Set the PPPoE user account User Account...

  • Page 15: 2Lan Settings

    Note: if the user wants to access the phone through the WAN port, then he / she must use the new IP address to accessthe phone after changing IP address of WAN port. 4.2.2LAN Settings LAN port setting interface 4.2.2.1 LAN Settings LAN Settings Link Mode Configure the LAN port network connection mode...

  • Page 16: Nat

    4.2.2.2 NAT IP Address IP address of LAN port Subnet Mask Subnet Mask DHCP Server DHCP server is enabled or not IP Pool Start IP address assignment startaddress IP Pool End IP address assignment endaddress MAX Leases Maximum release time DNS Relay DNS relay is enabled or not 4.3 V...
  • Page 17 Register Server Use Service Enable or disable SIP registration Display Name Set the displayed name of phone's SIP account User Name Set the username (SIP account) Authorization User Name Confirm the SIP account Password Set the password of SIP account Register Server Port Set the port No.

  • Page 18: Audio Setting

    Protocol Control Disable: the phone prohibits MWI function. Even if it receives a NOTIFY from server that there is a new voice mail, the phone will not have a prompt. Enable(Subscribe): the phone enables MWI function and will send SUBSCRIBE. If it receives a NOTIFY from server that there is a new MWI Subscribe voice mail, the MWI LED on phone will blink to give a prompt.
  • Page 19 Audio Setting Sound and Volume Control Configure the handset output volume. The control range is 1~7. Handset The default is 5. Configure the speakerphone output volume. The control range is Speaker 1~7. The default is 5. Ring Tone Configure the ringer volume. The range is 1~7. The default is 4. The signal standard.
  • Page 20 l iLBC l G.722 Packet Data Size The packet data size is 20mS by default. IBLC 15.2k iLBC 15.2kbit/s is enabled or not. The default is disable. G.723.1 5.3k G.723.1 5.3kbit/s is enabled or not. The default is disable. Voice VAD/CNG Voice VAD Enable or disable Mute detection function Enable or disable the comfortable noise.
  • Page 21 Call Feature Programmable Keys&MWI Touchlite 1. Set the number in speed dial key. Mem1~Mem10 2. Set the second function. Each memory can be arbitrarily set as Hold, DND, Transfer, Conference, Multicast Paging MWI Touchlite Set the number in shortcut key for voice message pickup. Park Mode Enable or disable Park function.

  • Page 22: Dial Rule

    The set range is 1-9s, for example 3s, the hotline number will be sent out immediately after 3s with the phone off-hook and without pressing any key. As long as any key is pressed within the set time, the time counting will stop. Enable or disable auto answer function.
  • Page 23 Dialing Rules Configuration Entry Name Description 1. Set the end of dialing rules, there are 2 kinds to choosefrom: Dialing Rules  End with “#”. Configuration  Timeout: Timeout setting. Set the waiting timefor dialing end, the unit is second, the defaultis5s. The default is "#"...

  • Page 24: Multicast Paging

    4.3.5 Multicast Paging You can use the multicast function that will simply, conveniently and efficiently send the timely notice to each member of the multicast group. The multicast key is set on the telephoneto send the multicast RTP stream to the pre-configured multicast address. Throughthe configuration monitoring multicast address on the phone, listen and play theRTP stream sent by the multicast address, the RTP stream multicast process does notinvolve SIP signaling.

  • Page 25: Advanced Settings

    The multicast voice coding format:0:G.711a; 1:G.711u; Multicast Paging Codec 2:G.723; 3:G.729; 4:iLBC; 5:G.722 Multicast Listening You can set to listen up to 10 different multicast addresses on the phone which can be used to receive the multicast RTP stream sent by them. If the priority of incoming multicast RTP stream is lower than the priority of current call, the phone will automatically ignore the multicast RTP listening Address...

  • Page 26: Provisioning

    QoS Setting Entry Name Description Enable or disable Voice VLAN function. The default is Voice VLAN disable. The Voice Video Tag. The range is 2~4094. The default Voice VID(TAG) is 136. User Priority User priority.The default is 0. Enable or disableData VLAN function. The default is Data VLAN disable.
  • Page 27 Provisioning Provision Options DHCP Options Support DHCP Options parameter or not. Auto Redirection Support Auto Redirection or not MAC File Support that the Config. filename is MAC address or not Config ID Support that the Config. filename is config ID or not Fireware Update Support the firmware upgrade Enable or disable...

  • Page 28: System Settings

    0-24, 0 - Disable, 1-24 hour selects any hours among 1-24 and generates a random number as the minute of upgrade among 0~60 ConfigID Update Time and delays a few seconds to begin to detect if Config ID file is updated.

  • Page 29: Time Settings

    Server Port Set the port # of syslog server. The default is 49494. default The default of logintelval is 0. Events only Log information print interval is 1min. Events plus periodic Logint is the setting range of lower interval. status inteval Log interval time setting.

  • Page 30: User Management

    Enable Daylight Daylight savings enable or disable. Time Shift(minutes) Time difference (minute) Daylight Savings Start Dates Month Daylight Savings Start Month Week of Month Week of Month Day of Week Hour Hour of Day Daylight Savings Stop Dates Month Daylight Savings Stop Month Week of Month Week of Month Day of Week...

  • Page 31: System Actions

    Set the password for webpage login in the identity of Administrator Password administrator. The default is admin. Input administrator password again Verify Password verification. Remote Administration Set the username of remote administrator. The default CetisAdmin User is admin. Set the login password of remote administrator. The CetisAdmin Password default is admin.

  • Page 32: Shortcut Keys

    Select the power level of registered handset. The power level is related to the receiving range. The level 0 is minimum, level 7 has Power Level the maximum receiving range. Frequency Select the DECT frequency band: select the different countries. 5 SHORTCUT KEYS 1.

  • Page 33: Warning

    FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 34 age and health. This device and its antenna must not be colocated or operating in conjunction with any other antenna or transmitter. This product has been shown to be capable of compliance for localized specific absorption rate (SAR) uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std.
  • Page 35 exceed the exposure limit established by the ISEDC, tests for each device are performed in positions and locations as required by the ISEDC. For Base This equipment complies with ISEDC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator&...
  • Page 36 celui-ci doit être soumis à des tests de certification par l’ISEDC lesquels n’excèdent aucunement la limite d’exposition issue par l’ISEDC, lesquels sont des tests effectué s sur chaque appareil dans des positions et endroits requis par l’ISEDC. Pour la base Cet équipement est conforme avec les limites d’exposition à...
