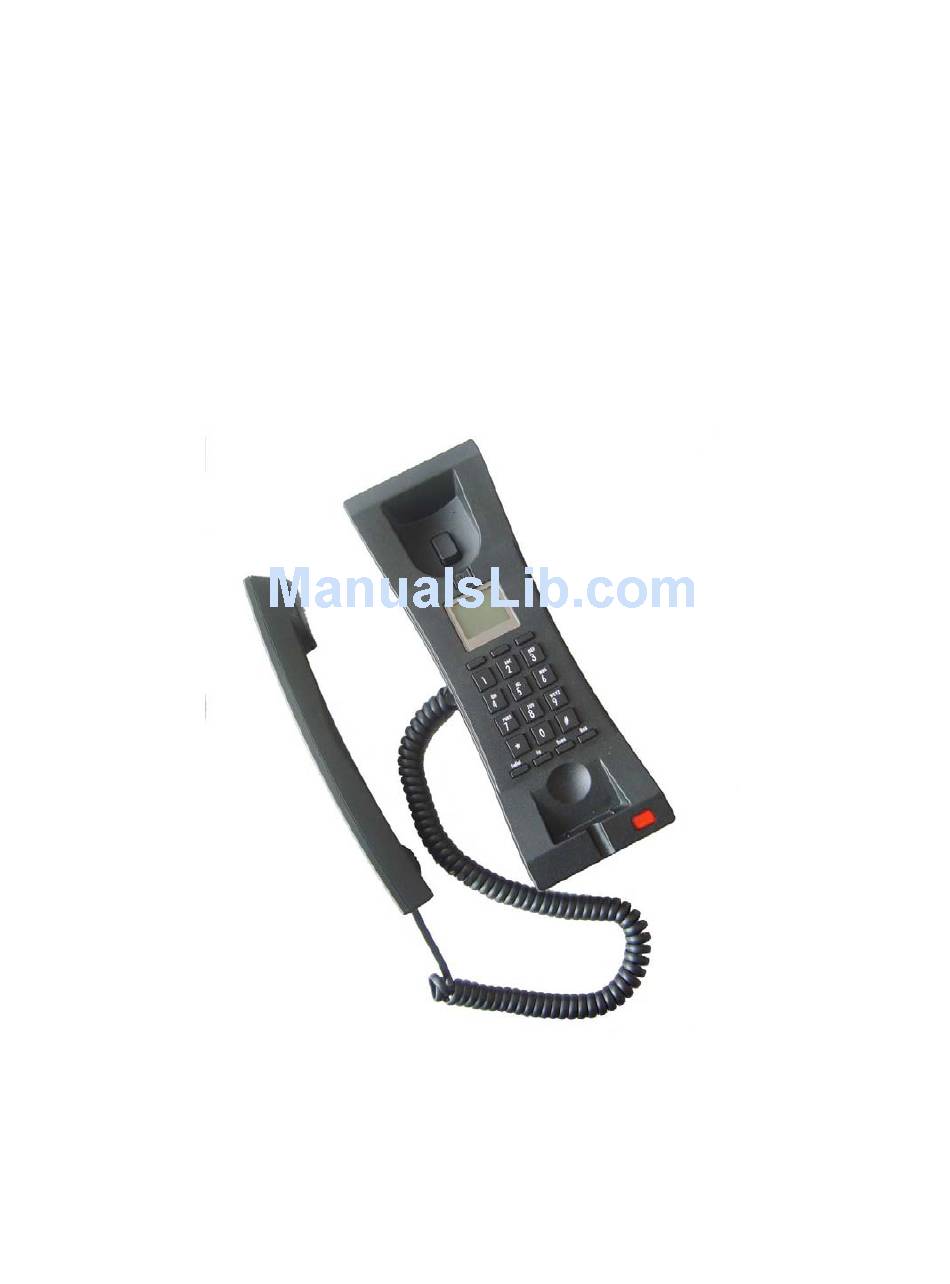

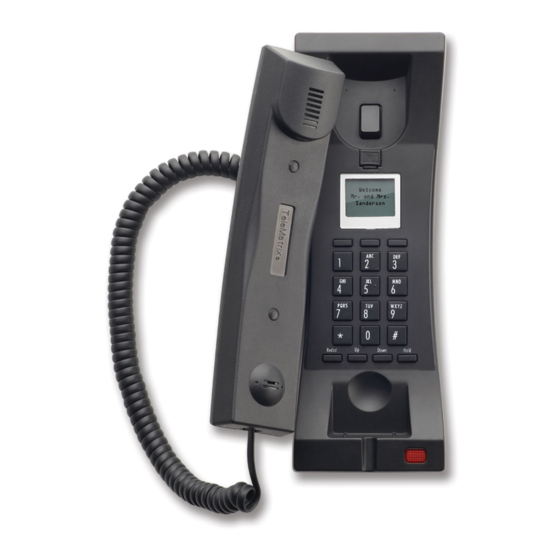

3300IP-TRM VoIP Phone
User Manual
TeleMatrix, Inc
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3300IP-TRM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telematrix 3300IP-TRM

Summary of Contents for Telematrix 3300IP-TRM

  • Page 1 3300IP-TRM VoIP Phone User Manual TeleMatrix, Inc...

  • Page 2: Table Of Contents

    1 Introduction ......................5 1.1 Overview of Hardware ..................5 1.1 Overview of Software ..................5 2 Keypad of 3300IP-TRM ..................6 2.1 Function Table of Keyboard ................6 2.2 Keyboard function and designed catalog ............9 3 Set the Phone Through WebBrowser ...............10 3.1 Login ........................10 3.2 Current state ....................10...
  • Page 3 3.8 Update Firmware ....................28 3.8.1 Update .......................28 3.8.2 Auto Update ....................29 3.9 System Manage ....................30 3.9.1 Account Manage ..................30 3.9.2 Syslog Config ....................30 3.9.3 Phone Book ....................31 3.9.4 Time Set ....................31 3.9.5 MMI SET ....................32 3.9.6 Logout & Reboot ..................32 4 Operating Method for Dialing ................33 4.1 How to dial IP Phone ..................33 4.2 Set the Phone to Server .................33...
  • Page 4 Function Support two SIP server working at the same time Provide a Backup SIP Server Support NAT, Firewall Support DHCP assign IP address, etc automatically Support PPPoE（used while connecting ADSL，cable modem） It can update the program through HTTP ,FTP and TFTP Check the dynamic voice;...

  • Page 5: Introduction

    Introduction This is the user manual of 3300IP-TRM. Some configuration should be done before use the 3300IP-TRM phone, then it can work normally. This manual will illustrate how to set the phone through keyboard and web service. 1.1 Overview of Hardware 1.1.1...

  • Page 6: Keypad Of 3300Ip-Trm

    DTMF RFC 2833 HTTP DTMF SIP Info SIP Server Support two SIP server working at the same time Provide a Backup SIP Server Handset key of 3300IP-TRM 1、Softkey1 key 2、Softkey2 key 3、Softkey3 key 4、LCD Screen 5、Dial Pad 6、SEND & # key 7、Redial key...
  • Page 7 Name Status Function/Display Correspond to the function on the lower left side Softkey1 of the screen according to different states. Correspond to the function on the lower middle of Softkey2 the screen according to different states. Softkey3 Correspond to the function of the lower right side of the screen according to different states.
  • Page 8 Three-way conference call 2.1.5 Suppose the user of the 3300IP-TRM phone is A, and if user B through VoIP phone to call user A, user B need to make 3-way conference call with user A and C, then user A can press “Conf” key to hold the conversation with user B, then call user C, during the conversation with C to press down “conf”...

  • Page 9: Keyboard Function And Designed Catalog

    Find the number by checking the call record, and then press "Detail" for the number details, and the details can be checked with the keys "Up" and "Down". 5、Callback method Find the number by checking the call record, and press "Detail" for the number details, then press "Dial".

  • Page 10: Set The Phone Through Webbrowser

    LAN interface of the phone, and set the computer IP on the same net with the phone IP or make it gets IP automatically . Then open the IE, input the phone IP address in the address field, t you will enter web setting page of phone 3300IP-TRM. 3.1 Login：...

  • Page 11: Network

    This page layout shows the work state of VoIP phone. The network part shows the connection state of WAN interface and LAN interface and the network setting; the work state of Public SIP service of VoIP part, and here you can see the registration and whether registered to the server or not.
  • Page 12 ----Set local DNS server in the Preferred DNS and the Alternate DNS。 Configure to dynamic obtain IP ----Enable DHCP; If there is DHCP server in your local network, 3300IP-TRM will automatically obtain WAN port network information from your DHCP server. Configure PPPoE: ----Enable PPPoE ----PPPoE server: Enter “ANY”...

  • Page 13: Lan Config

    3.3.2 LAN Config LAN IP Netmask: Set the IP and Netmask for the LAN DHCP Server: Enable DHCP service in LAN port; after user changed LAN IP, phone will automatically modify DHCP Lease Table and save the configure according to IP and netmask, DHCP server configure won’t take effect unless you reboot the device.
  • Page 14 Proxy Password: proxy server password Domain Realm: SIP domain, enter the sip domain if any, otherwise 3300IP-TRM will use the proxy server address as sip domain. Local SIP port: Local SIP register port, default 5060 Phone Number: Phone number of your SIP account Enable Register: Enable/Disable SIP register.3300IP-TRM won’t send...

  • Page 15: Iax2 Config

    Detect Interval Time: Co-work with the Auto Detect Server, if Auto Detect Server is enable, 3300IP-TRM will periodically detect if the SIP server is available according this setting. User Agent: Encrypt Key: The particular service system decrypts of the key, matching with the...

  • Page 16: Advance

    Lease Table Name: Lease table name. Start IP: Start IP of lease table. End IP: End IP of lease table. Network device connecting to the 3300IP-TRM LAN port can dynamic obtain the IP in the range between start IP and end IP.

  • Page 17: Nat

    3.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. DHCP Lease Table：Show IP—MAC corresponding table assigned by DHCP server. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping.

  • Page 18: Stun

    DMZ Config ： 3.5.3 STUN This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: SIP STUN is used to realize SIP penetrates through NAT, when the phone configures IP and port of STUN server (default is 3478) and select Enable SIP Stun, common SIP server can be used to realize the phone to penetrate through NAT.

  • Page 19: Net Service

    Local SIP Port：The SIP port of this phone. Load：Load the choices of SIP line. Use Stun：Stun. Set the Stun that allows/forbids use user setting. 3.5.4 Net Service HTTP Port: configure HTTP transfer port; default is 80. User may change this port enhance system’s security.

  • Page 20: Firewall Settings

    Access list support two type limits: input_access limit or output_access limit. Each type support 10 items maximum. 3300IP-TRM firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:...

  • Page 21: Vlan Configuration

    3.5.6 VLAN Configuration 3300IP-TRM phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. 3300IP-TRM will sort the packets using the QoS and sends it to the destination. VLAN Enable: If enable the VLAN service, the second layer will realize separate voice, signal and data transmission.
  • Page 22 Digital Map is based on some rules to judge when user end their dialing and send the number to the server. 3300IP-TRM support following digital map: ----End With “#”: Use # as the end of dialing. ----Fixed Length: When the length of the dialing match, the call will be sent.

  • Page 23: Call Service Settings

    Enable Call Waiting: Enable/disable Call Waiting Enable Three Way Call: Please refer to Value_add_service for detail. Accept Any Call: If this option is disable, 3300IP-TRM refuse the incoming call when the called number is different from 3300IP-TRM’s phone number. No Answer Time: no answer call forward time setting.

  • Page 24: Memory Key

    This page layout shows number setting of Voice mail. 3.5.10 MMI Filter MMI filter is used to make access limit to 3300IP-TRM phone. When MMI filter is enable. Only IP address within the start IP and end IP can access 3300IP-TRM phone.

  • Page 25: Vpn

    3.5.12 VPN This page is VPN setting page , the IP phone support the VPN with UDP and L2TP protocol .The parameters is as below VPN IP： After VPN registered successfully, VPN server will give an IP aggress to the terminal.

  • Page 26: Dial-Peer Dial Rule Setting

    Dial-Peer dial rule setting Please refer to How to use dial rule for detail.

  • Page 27: Config Manage

    Config Manage Save Config: save current settings. Clear Config: restore to default settings. Backup Config: Backup the config file, via point the right key of mouse- save target as….- will pop a save window, then type the config file name in the File name (the file type is text file) Update Configuration: Update the current configuration through configuration files.

  • Page 28: Update Firmware

    Config file export: export the config file Config file import: import the config file 3300IP-TRM phone support FTP and TFTP auto update, the gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe above.

  • Page 29: Auto Update

    3.8.2 Auto Update Current Version: the system will display the current version number Server Address: FTP/TFTP server address Username: FTP server user name Password: FTP server password Config File Name: The name of configuration file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file.

  • Page 30: System Manage

    <<VOIP CONFIG FILE>>Version:1.0007 <GLOBLE CONFIG MODULE> ConfFile Version：7 3.9 System Manage 3.9.1 Account Manage Set web access account or keypad password of 3300IP-TRM.

  • Page 31: Syslog Config

    3.9.2 Syslog config Set the system log Server IP: set the syslog server address Server Port: set the syslog server port MGR Log Level: set the MGR log level SIP Log Level: set the SIP log level IAX2 Log Level: set the IAX2 log level Please click “apply”...

  • Page 32: Mmi Set

    Server: type the IP address of time server Timezone: select correct time zone in list box Timeout: longest response time for SNTP Daylight: Daylight saving time SNTP: select SNTP server 12 Hours Format: select 12 hours format Manual Config: The time setting 3.9.5 MMI SET Set the greeting information on LCD.

  • Page 33: Operating Method For Dialing

    Set the phone being connected to server 4.2.1 Set the WAN interface The connection ways of entering the Network WAN Config layout phone of the net port: 3300IP-TRM could be connected to Internet by using the static IP, DHCP IP, or PPPoE dialing.
  • Page 34 Use the configure to dynamic obtain IP to get IP address: ----choose DHCP option. Now, if the network has DHCP server, then 3300IP-TRM will get IP address, Netmask, Gateway, Primary DNS and Alter DNS from this DHCP server automatically. Use PPPoE dialing to connect the Internet:...

  • Page 35: Sip Setting

    ----please fill in the account and password which PPPoE have dialed in the PPPoE Username and Password. So 3300IP-TRM could connect the Internet through PPPoE dialing, and automatically get IP address, Netmask, Gateway, Primary DNS and Alter DNS and so on .

  • Page 36: Iax Setting

    Note: please choose Save Config in the Config Manage after setting the information, or the existing setting information will be failed after rebooting.. How to use the dial rule? 3300IP-TRM provide flexible dial rule, with different dial-rule configure, user can...
  • Page 37 easily implement the following function: ----Replace, delete or add prefix of the dial number. ----Make direct IP to IP call ----Place the call to different servers according the prefix. You can click “Add” to add a new dial rule. Below is the detail setting of the dial-rule: Phone Number: The Number suit for this dial rule, can be set as full match or prefix match.

  • Page 38: Voice Mail

    2T rule: If the call starts with 2, the first 2 will be deleted, and the rest number will be sent to private SIP server. 3T rule: If the call starts with 3, the first 3 will be deleted, and the rest number with be sent to public SIP server.
