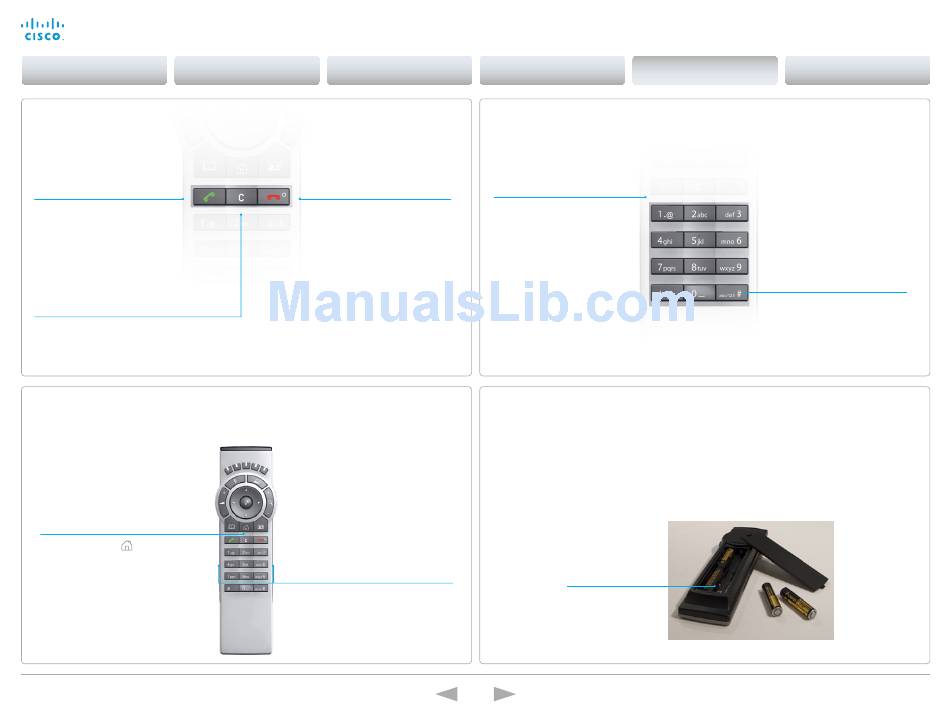

Call key
Press the Call key to place a
call, and to accept an incom-
ing call.
Use the Call button as a short-
cut to Recent Calls when the
Call menu is not visible.
Clear
Press the Clear key to remove
characters in a text field.
Waking up the system
To wake up the system just pick up the remote control or press any key. You may have to point the
remote control toward the system/camera to make sure it discovers you.
Home key
Press the Home ( ) key
to open the Home menu
on screen.
D14639.12 Video Systems Getting Started Guide TC7.0, DECEMBER 2013.
Introduction User interfaces
End call / Standby
Press the End Call key to
reject an incoming call, to
end an ongoing call or—when
idle—to go into standby mode.
When navigating in the menu
the key is used to exit the
menu system.
Press and hold this key to
have the system enter standby
mode.
Rubber line sensors
When you pick up the remote
control and touch the rubber
line sensors along the sides of
the remote control, the system
wakes up.
Configuration
Alphanumeric keypad
The keypad behaves in a similar way to the keypad on a mobile phone.
0-9, a-z, period (.), @,
space, *
Press a key repeatedly
to toggle between the
options displayed on that
key.
IR sensor range (DIP switch setting)
The IR sensor has a short and long range. When video conference systems are placed close to each
other, you may find it convenient to use the short range to avoid interfering with the other systems.
Open the battery cover and remove the batteries to set the DIP switch.
• Short range (1 m / 3 ft): Move the DIP switch down.
• Long range: Move the DIP switch up.
The DIP switch
35
Getting Started Guide
Appendices Appendices Contacts
Press and hold the # key
to toggle between lower
and upper case characters
and numbers (depending
on context).
Copyright © 2010–2013 Cisco Systems, Inc. All rights reserved.
abc/123 #
