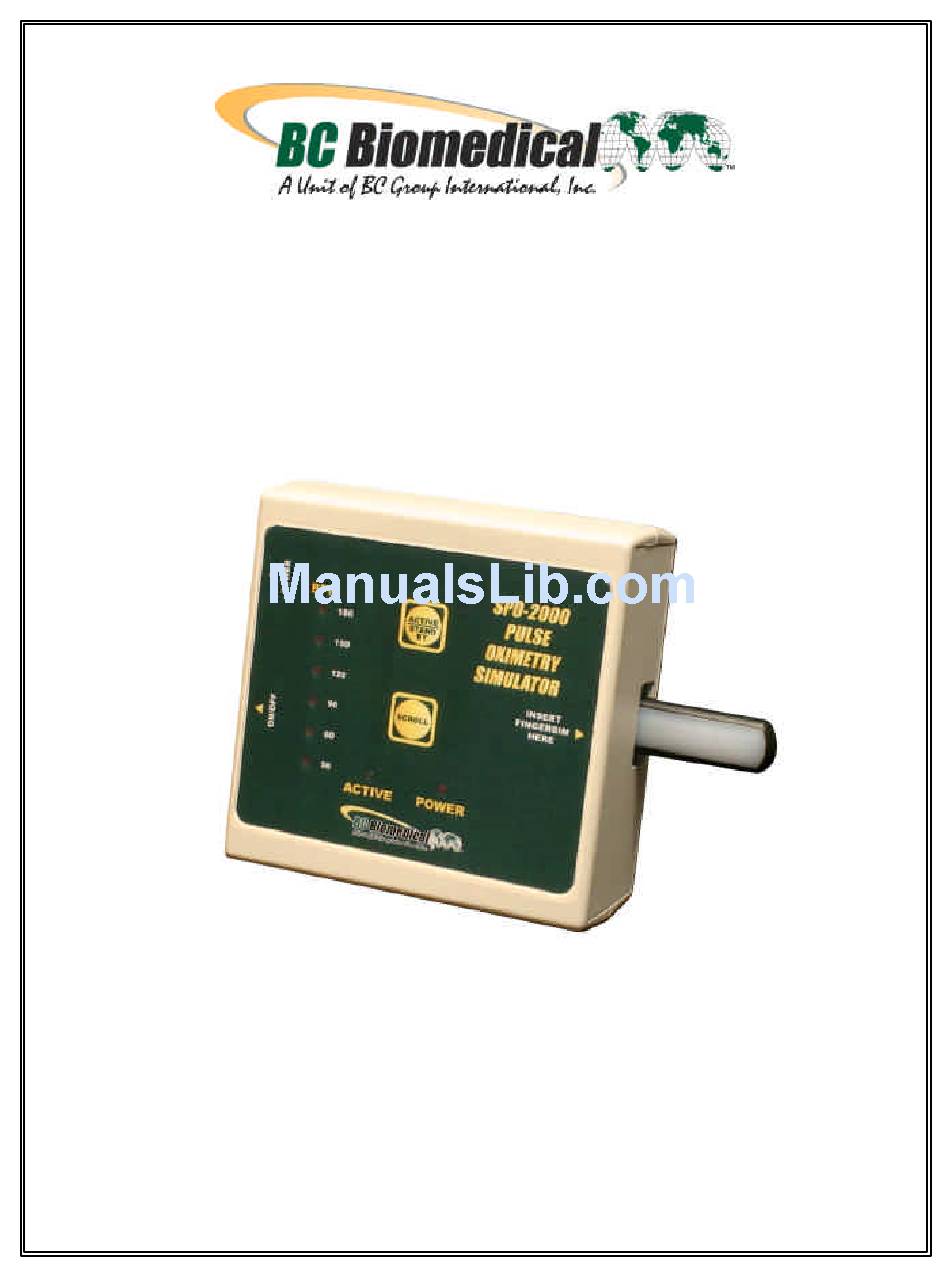

- Page 1 PULSE OXIMETER SIMULATOR SPO-2000 USER MANUAL...
-
Page 3: Table Of Contents
BC BIOMEDICAL SPO-2000 TABLE OF CONTENTS DESCRIPTION ......................3 OVERVIEW ........................4 KEYS ..........................5 LED INDICATORS......................6 OPERATIONS ......................7 MANUAL REVISIONS ....................9 WARRANTY......................... 9 SPECIFICATIONS......................10 NOTES ......................... 11... - Page 4 PERFORMANCE AND TO SUPPLY THE BEST POSSIBLE PRODUCT. THE INFORMATION IN THIS MANUAL HAS BEEN CAREFULLY CHECKED AND IS BELIEVED TO BE ACCURATE. HOWEVER, NO RESPONSIBILITY IS ASSUMED FOR INACCURACIES. Manual SPO-2000 Copyright © 2006 www.bcgroupintl.com Made in the USA...
-
Page 5: Description
The SPO-2000 is designed to work in conjunction with the FingerSim manufactured by BC Biomedical and available from BC Group International. The FingerSim is used to verify the operation of pulse oximeters. The SPO-2000 adds calibrated pulse rates to the functionality of the FingerSims . -
Page 6: Overview
OVERVIEW This section looks at the layout of the SPO-2000 and gives descriptions of the elements that are present. 2 Light Touch Keys ACTIVE/STANDBY for Controlling the Power Generator. SCROLL for selecting the Pulse Rate. Connector for Power Transformer ON/OFF Switch... -
Page 7: Keys
KEYS 2 soft touch keys are provided for unit operation: – This key is used to turn the pulse generator output ON and OFF. – This key is used to select the desired pulse rate. -
Page 8: Led Indicators
LED INDICATORS There are eight LEDs to indicate the status of the system. They are marked POWER, ACTIVE, 30, 60, 90, 120, 150, AND 180. POWER – This LED indicates that the power switch is turned ON and the on board power supply is functioning properly. -
Page 9: Operations
OPERATIONS When the system is first turned on the SPO-2000 will start in the standby mode with a heart rate of 30 BPM. Insert the desired FingerSim into the rectangular opening on the SPO-2000. NOTE: It is recommended that the FingerSim be inserted with the printed side down to minimize wear on the printing by the mechanism inside the SPO-2000. - Page 10 NOTE: The accuracy of the saturation percentage on the pulse oximeter being tested is a function of the FingerSim - not the SPO-2000. The SPO-2000 only controls the pulse rate. See the user information included with the FingerSim for accuracy and related...
-
Page 11: Manual Revisions
MANUAL REVISIONS Revision # Program # Revisions Made Rev 01 DT7300CA Original BC Manual Rev 02 DT7300PGA Updated to new format LIMITED WARRANTY WARRANTY : BC GROUP INTERNATIONAL, INC. WARRANTS ITS NEW PRODUCTS TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP UNDER THE SERVICE FOR WHICH THEY ARE INTENDED. -
Page 12: Specifications
SPECIFICATIONS Physical 5.07 x 5.08 x 2.25 Inches ENCLOSURE (128.78 x 129.03 x 57.15 mm) ABS Plastic < 1 Lbs WEIGHT (< 0.45 Kg) FACE PLATE Lexan, Back printed OPERATING RANGE 15 to 40 C STORAGE RANGE -20 to 65 C Electrical 12V, 600 mA DC POWER... -
Page 13: Notes
NOTES...
