WARNING - USERS The DPM-2200 is for use by skilled technical personnel only. WARNING - USE The DPM-2200 is intended for testing only and should never be used in diagnostics, treatment or any other capacity where it would come in contact with a patient.
Page 5
CAUTION - CLEANING Do not immerse. The DPM-2200 should be cleaned by wiping gently with a damp, lint-free cloth. A mild detergent can be used if desired. CAUTION - LIQUIDS Do not submerge or spill liquids on the DPM- 2200. Do not operate the DPM-2200 if it may have been exposed to fluid.
NOTICE – SYMBOLS Symbol Description Center Negative NOTICE – ABBREVIATIONS ANSI American National Standards Institute American Standard Code for Information ASCII Interchange Binary Coded Decimal Celsius centimeters of water ° degree(s) Device Under Test Direct Current Euro European Fahrenheit Full Scale inHg inches of mercury inches of water...

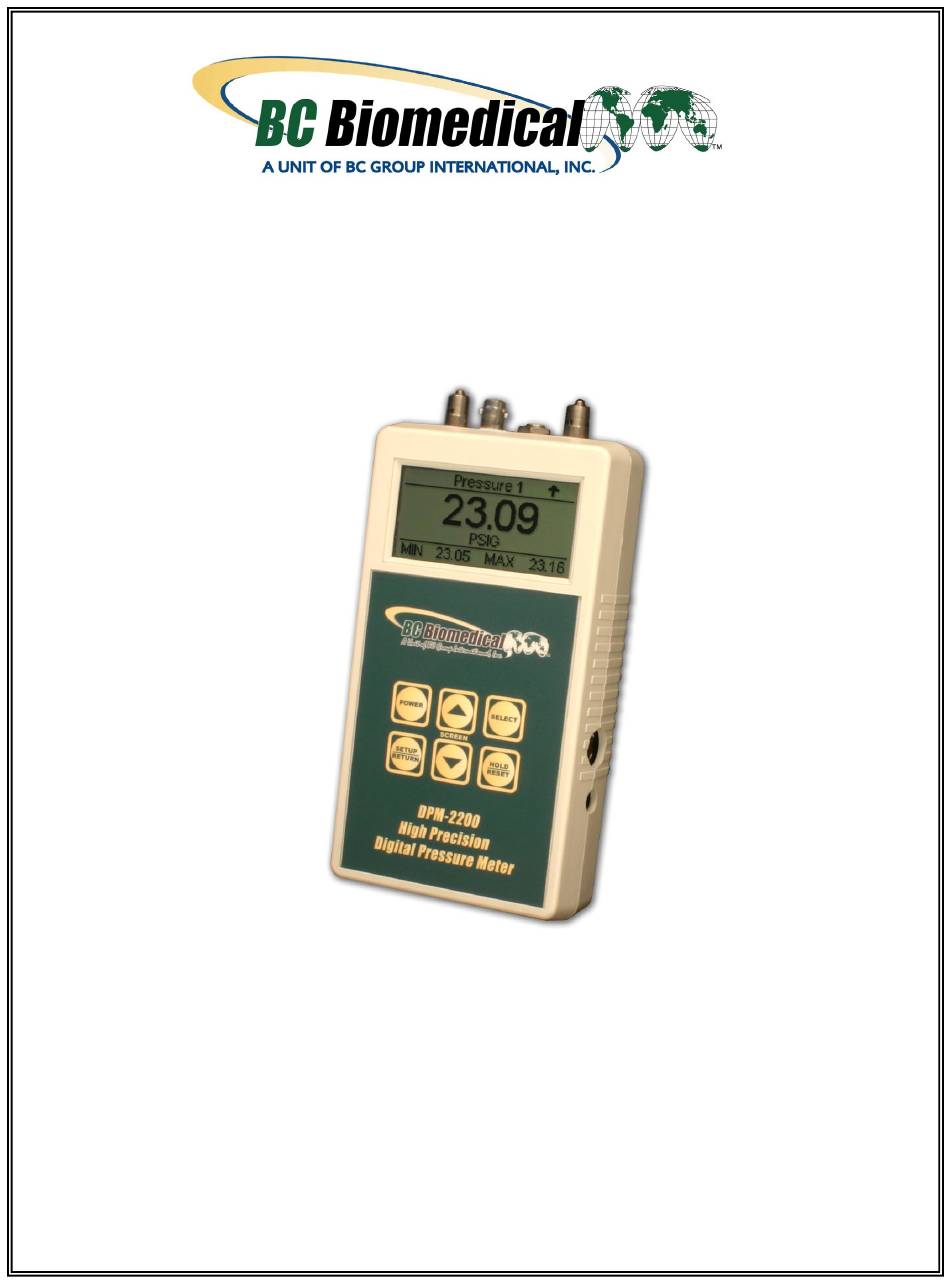

DPM-2200 SERIES DIGITAL PRESSURE METERS The Model DPM-2200 Series is a family of microprocessor-based, high-precision Pressure Meters, which are intended for use in the evaluation and servicing of a wide variety of medical, commercial and industrial applications. These meters measure compatible gas and liquid pressures in various engineering units.
ANALOG OUTPUT OPTION ADDS: • OPTION DC - DC ANALOG OUTPUT (REFRESH RATE DEPENDENT UPON DIGITAL FILTER SETTING) • OPTION HF - HIGH FREQUENCY DC ANALOG OUTPUT (ALTERNATING DC SIGNAL REPRESENTING PRESSURES ALTERNATING AT RATES UP TO 100 Hz) • BNC OUTPUT •...
MODEL INFORMATION Use the following model configuration guide to construct or decode a DPM220X series differential Digital Pressure Meter model number: 220X Options Blank = Not Applicable = DC (Direct Current) Analog Output = High Frequency DC Analog Output Temperature Sensor Option = Not Applicable = YSI 700 = 100 Ω...
Page 12
PRESSURE RANGES BY SENSOR RANGE PRESSURE SENSOR RANGE PRESSURE UNITS 100 PSI 75 PSI 10 PSI 5 PSI 0.3 PSI -13.50 to -13.50 to -10.000 to -5.000 to -0.3000 to 100.00 75.00 10.000 5.000 0.3000 -698 to -698 to -517.2 to -258.6 to -15.51 to mmHg @ 0°...
LAYOUT This section looks at the layout of the DPM-2200 and gives descriptions of the elements that are present. Analog Output: Temperature: BNC (Optional) ¼” Phone Jack (Optional) Pressure Port #2: Male Luer Lock Pressure Port #1: Coupler Male Luer Lock Coupler 6 Light Touch Keys for Selecting Parameters and...
SCREENS MAIN SCREENS – There can be up to five main screens, depending on the model. They are PRESSURE 1, PRESSURE 2, TEMPERATURE, COMBINED and INPUTS. The available screens can be toggled through using Pressure Port 1 Display with Min/Max Option selected Pressure Port 2 Display with Min/Max...
Page 15
Input Identification Screen Note: Sensor limits are displayed based on selected range. PRESSURE SCALE – The pressure scale is indicated by the units displayed under the reading. The scale can be changed by using to highlight the unit line and to toggle between available pressure units as listed below.
Page 16
TEMPERATURE SCALE – The temperature scale is indicated by the units displayed under the reading. The scale can be changed by using to highlight the unit line and to toggle the temperature units between Degrees Celsius (°C) and Fahrenheit (°F). NOTE: If the measured temperature is outside of the range of the instrument, an OVER RANGE or UNDER RANGE message box will be displayed.
Page 17
The following is a breakdown of the parameters available in the configuration of the unit and their available options: System Setup Configuration Parameter Description Range Selects whether the Min and Max values will be Display Min/Max yes/no displayed on the main screens (except COMBINED).
Page 18
ZEROING PRESSURE SCALES – When there is no pressure applied to either port, the display should read “0.” It may be necessary to zero the pressure scales to remove any errors due to ambient conditions. This is done by pressing the key until the zeroing instructions are displayed, then pressing simultaneously to begin...
KEYS Six tactile-touch keys are provided for system operation: – This key turns the unit off and on. The unit will return to the main screen that was active when it was turned off. – In the DISPLAY MODE, these keys toggle the display through the available main screens.
Page 20
– This key toggles the unit into and out of the Setup Mode. Depressing this key will enter the Setup screen where the configuration can be viewed and adjusted. Depressing the key again will exit the Setup Mode and return to the previously viewed main screen. This will also save any changes to the internal EEPROM memory so they will be retained even with the power turned off or battery removed.
TESTING LIQUID PRESSURE Measuring pressure in liquid lines (such as during an occlusion test for infusion pumps) requires the use of a transducer protector to prevent fluids intruding into the digital pressure meter. Each DPM-2200 unit comes with the BC20-01012 Transducer Protector, Luer Kit. Failure to use a transducer protector during a liquid pressure test can result in the intrusion of fluid into the DPM which can cause damage to the digital pressure sensor.
OPTIONS ANALOG OUTPUT – The unit may be ordered with an Analog Output Option. This output can either be a Standard DC or a High Frequency DC and is provided via a BNC connector on the top of the unit. The source parameter for the analog output is selectable in the Setup Menu between Pressure 1 (Pres1), Pressure 2 (Pres2) or Temperature (Temp).
COMMUNICATIONS Since the meter does not handle a great deal of data, the RS-232 communications link has been optimized to allow the user, through very simple instructions, to control and request data from the meter. Refer to Specifications section for RS-232 Settings (Baud, etc.). Data transmitted/received is in standard ASCII format, and all numerical values are in BCD format.
Page 24
CR - Carriage Return Examples: Data Sent Data Returned Meaning W064<CR> W064<CR><LF> Echo of Command Sent (Set Pressure units to “inH O”) W0600004<CR> W0600004<CR><LF> Echo of Command Sent (Set Pressure units to “inH O”) W05100<CR> W05100<CR><LF> Echo of Command Sent ??<CR><LF>...
Page 25
CR - Carriage Return X - CANCEL The CANCEL command is simply a way to re-establish proper control, should a communications error occur or an incorrect command be transmitted. For the most part, an incorrect command will simply be ignored and the meter will return to listening for future commands. However, a prior command may be cancelled midstream by transmitting the CANCEL command anytime.
Page 26
DATA LOCATIONS LOCATION ACCESS DESCRIPTION RANGE READ BATTERY LIFE REMAINING 0 to 100% READ/WRITE CONTRAST 0 to 20 READ/WRITE AUTO POWER OFF 0 to 30 (seconds) READ MODEL RESERVED 100 PSI Max 75 PSI Max READ PRESSURE 1 TYPE 10 PSI max 5 PSI max 0.3 PSI max mmHg @ 0 °C...
Page 27
DATA LOCATIONS (continued) LOCATION ACCESS DESCRIPTION RANGE Not Applicable READ TEMPERATURE SENSOR TYPE YSI 700 RTD 100 °C READ/WRITE TEMPERATURE UNITS °F READ/WRITE TEMPERATURE FILTER 0-60 READ TEMPERATURE See Note 2 READ/WRITE TEMPERATURE MAX See Note 2, 3 READ/WRITE TEMPERATURE MIN See Note 2, 3 NOTES 1.
ANALOG OUTPUT (OPTIONAL) RANGE 1.0 to 4.0 VDC/FS, Selectable ACCURACY ± 0.1% FS Output dependent on OPTION DC Digital Filter setting RATE Output from 0 to 100 Hz OPTION HF (Note: Sampled at 10 kHz) CONNECTIONS Male BNC Connector PHYSICAL & ENVIRONMENTAL DISPLAY 128 X 64 Pixels Non-Backlit Graphical LCD ENCLOSURE...
