BC Biomedical SPO-2000 User Manual

Pulse oximetry simulator
Hide thumbs Also See for SPO-2000:

Advertisement

Quick Links

PULSE
OXIMETRY
SIMULATOR
SPO-2000 SYSTEM
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPO-2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BC Biomedical SPO-2000

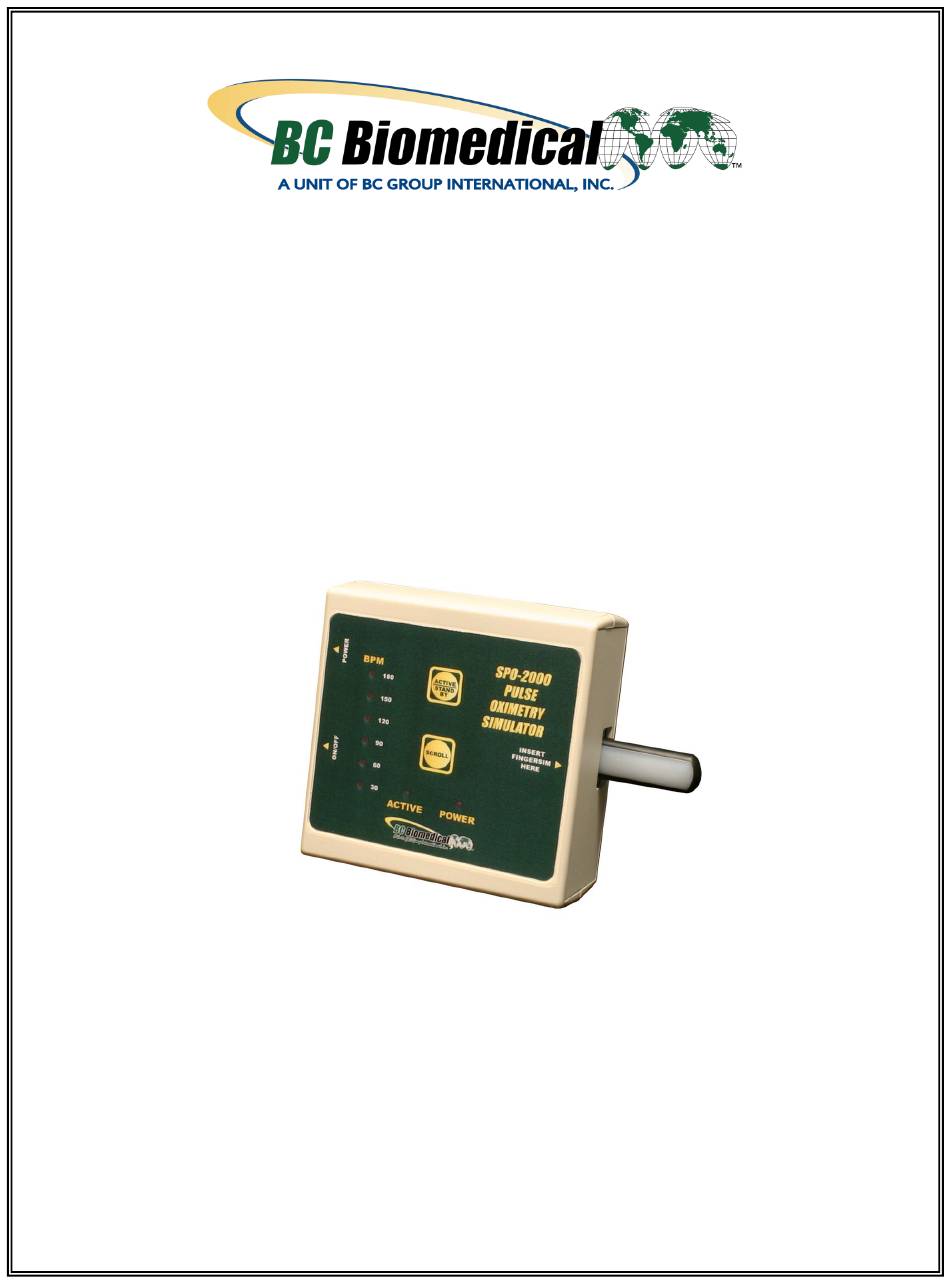

  • Page 1 PULSE OXIMETRY SIMULATOR SPO-2000 SYSTEM USER MANUAL...
  • Page 3: Table Of Contents

    BC BIOMEDICAL SPO-2000 SYSTEM TABLE OF CONTENTS WARNINGS, CAUTIONS, NOTICES ................ii DESCRIPTION ......................1 LAYOUT ........................2 KEYS ..........................3 LED INDICATORS ....................... 4 OPERATIONS ......................5 MANUAL REVISIONS ....................6 LIMITED WARRANTY ....................6 SPECIFICATIONS ....................... 7 NOTES ......................... 8...
  • Page 4 WARNING – LIQUIDS Do not submerge or spill liquids on the SPO-2000 System. Do not operate the SPO-2000 System if internal components not intended for use with fluids may have been exposed to fluid, as the internal leakage may have caused corrosion and be a potential hazard.
  • Page 5 CAUTION - ENVIRONMENT Exposure to environmental conditions outside the specifications can adversely affect the performance of the SPO-2000 System. If the SPO-2000 System is outside of Operating specifications, allow it to acclimate to specified conditions for at least 30 minutes before attempting to operate it.
  • Page 6 IS ASSUMED FOR INACCURACIES. NOTICE – CONTACT INFORMATION BC BIOMEDICAL BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com sales@bcgroupintl.com SPO-2000 System User Manual Copyright © 2012 www.bcgroupintl.com Made in the USA 04/12 Rev 04...
  • Page 7: Description

    SIX CALIBRATED SIMULATOR PULSE RATES: 30, 60, 90, 120, 150, and 180 LED INDICATION OF SELECTED PULSE RATE STANDBY MODE AVAILABLE MODELS: The SPO-2000 Base Unit plus one or more FingerSims™ are required in order to verify the operation of Pulse Oximeters. SPO-2000 SIMULATOR BASE UNIT FingerSim™...
  • Page 8: Layout

    LAYOUT This section looks at the layout of the SPO-2000 Base Unit and gives descriptions of the elements that are present. 2 Light Touch Keys • ACTIVE/STANDBY for enabling/disabling Pulse Simulation • SCROLL for selecting the Pulse Simulation rate. Connector for Power...
  • Page 9: Keys

    KEYS 2 soft touch keys are provided for Base Unit operation: – This key is used to turn the SPO-2000 Base Unit Pulse Simulation ON and OFF. – This key is used to select the desired Pulse Simulation rate.
  • Page 10: Led Indicators

    LED INDICATORS There are eight LEDs to indicate the status of the Base Unit. They are marked POWER, ACTIVE, 30, 60, 90, 120, 150, AND 180. POWER – This LED indicates that the Base Unit power switch is turned ON and the onboard power supply is functioning properly.
  • Page 11: Operations

    OPERATIONS The SPO-2000 Base Unit will start up in the STANDBY mode with a selected Pulse Simulation rate of 30 BPM by default. Insert the desired FingerSim™ into the rectangular SPO-2000 FingerSim™ receptacle. NOTE: It is recommended that the FingerSim™ be inserted with the printed side down to minimize wear on the printing by the mechanism inside the SPO-2000 Base Unit.
  • Page 12: Manual Revisions

    ASSUME ANY LIABILITY. REMEDIES: THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY SHALL BE: (1) THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS OR PRODUCTS, WITHOUT CHARGE. (2) AT THE OPTION OF BC GROUP INTERNATIONAL, INC., THE REFUND OF THE PURCHASE PRICE. P:\MANUALS\BCGroup\…\SPO-2000\SPO-2000_UM_Rev04.doc...
  • Page 13: Specifications

    SPECIFICATIONS SPO-2000 BASE UNIT PULSE SIMULATION RATE 30, 60, 90, 120, 150, 180 BPM ACCURACY ± 1% PHYSICAL, ENVIRONMENTAL, AND ELECTRICAL 5.20 x 5.20 x 2.50 Inches SIZE (132.1 x 132.1 x 63.5 mm) ≤ 1 Lbs (0.45 kg) WEIGHT...
  • Page 14: Notes

    NOTES...
  • Page 16 BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com sales@bcgroupintl.com SPO-2000 System User Manual 04/12 – Rev 04 Copyright © 2012 Made in the USA...
