BC Biomedical SA-2010S User Manual

Electrical safety analyzer with patient simulator
Hide thumbs Also See for SA-2010S:
Table of Contents

Advertisement

Quick Links

ELECTRICAL
SAFETY ANALYZER
WITH PATIENT SIMULATOR
SA-2010S
SA-2010S-INTL
SA-2010S-AUS
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-2010S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BC Biomedical SA-2010S

Summary of Contents for BC Biomedical SA-2010S

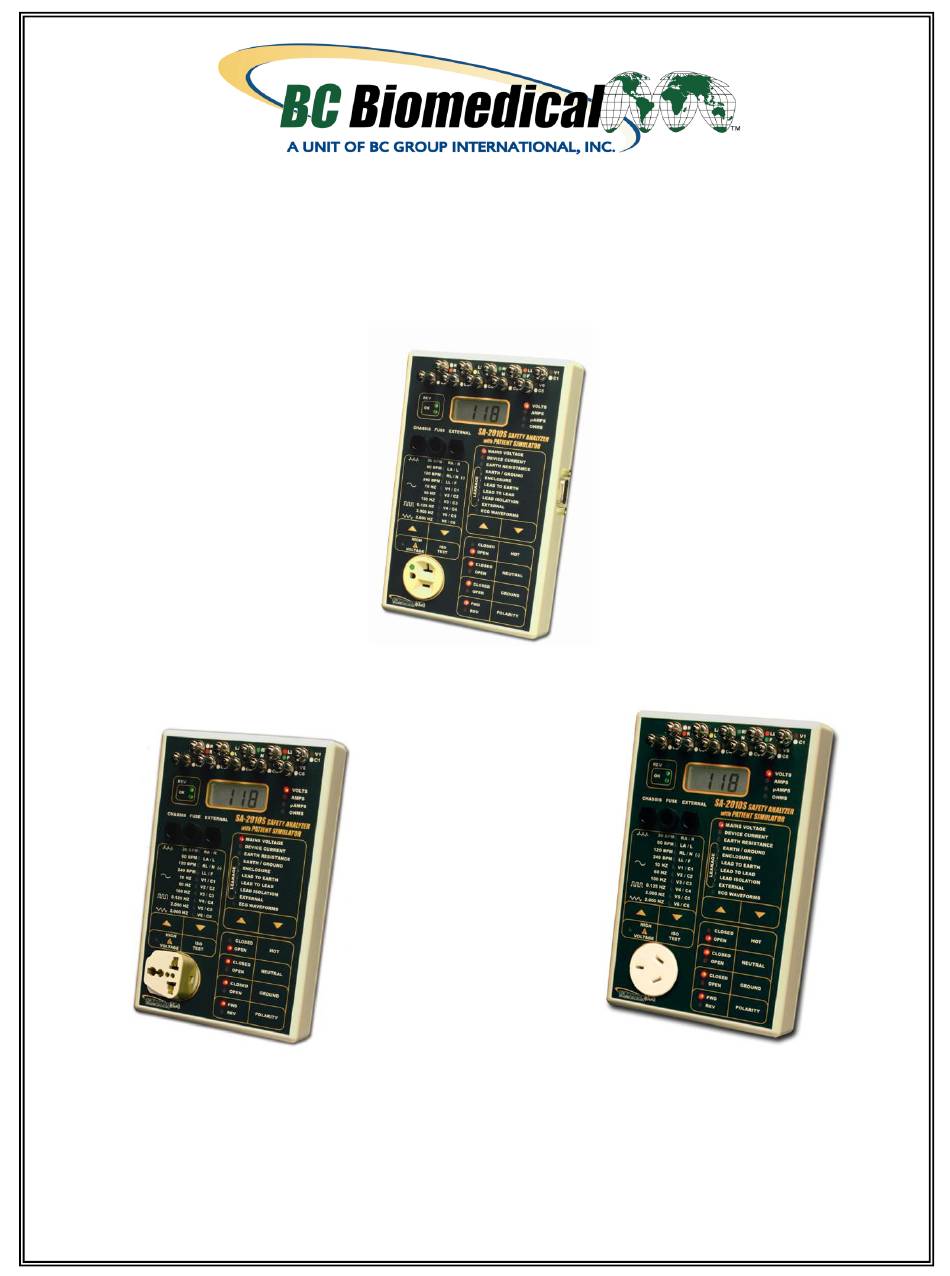

  • Page 1 ELECTRICAL SAFETY ANALYZER WITH PATIENT SIMULATOR SA-2010S SA-2010S-INTL SA-2010S-AUS USER MANUAL...

  • Page 3: Table Of Contents

    TESTING ........................10 PATIENT SIMULATOR ....................15 COMMUNICATION PROTOCOL ................16 MANUAL REVISIONS ....................19 LIMITED WARRANTY ....................19 SPECIFICATIONS ....................... 20 NOTES ......................... 24 This User Manual covers the following units: SA-2010S & SA-2010S-R SA-2010S-INTL & SA-2010S-INTL-R SA-2010S-AUS & SA-2010S-AUS-R...
  • Page 4 SA-2010S. Do not connect any leads from the patient directly to the SA-2010S or DUT while it is powered by the SA-2010S. WARNING - MODIFICATIONS The SA-2010S is intended for use within the published specifications.
  • Page 5 WARNING - LIQUIDS Do not submerge or spill liquids on the SA- 2010S. In the event of a spill onto the SA-2010S, Do not operate the SA-2010S regardless of fluid type. WARNING - VOLTAGE When the SA-2010S is in Lead Isolation mode...
  • Page 6 2010S should not be used and should be serviced if any parts are in question. CAUTION - SERVICE The SA-2010S is intended to be serviced only by authorized service personnel. Troubleshooting and service procedures should only be performed by qualified technical personnel.
  • Page 7 NOTICE – ABBREVIATIONS Ampere(s) American Heart Association Association for the Advancement of AAMI Medical Instrumentation Beats Per Minute Celsius centimeter(s) ° degree(s) Device Under Test Electrocardiogram Euro European feet Full Scale hertz International Electrotechnical Commission Isolation kilogram(s) kilohertz kΩ kilohm(s) Light Emitting Diode Mains on Applied Parts Megahertz...
  • Page 8 NO RESPONSIBILITY IS ASSUMED FOR INACCURACIES. NOTICE – CONTACT INFORMATION BC BIOMEDICAL BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com sales@bcgroupintl.com SA-2010S Series User Manual Copyright © 2012 www.bcgroupintl.com Made in the USA 06/12 Rev 11...

  • Page 9: Description

    ELECTRICAL SAFETY ANALYZER WITH PATIENT SIMULATOR The Model SA-2010S Series is a Microprocessor based Electrical Safety Analyzer with a built-in Patient Simulator. It allows for a multitude of tests to be performed on a device using the same unit and lead connections. It provides a full Electrical Safety Analyzer, as well as, ECG Simulation with four waveforms with constant QRS duration and six machine performance testing waveforms.
  • Page 10 AMPLITUDE ACCURACY: +/- 2% FREQUENCY ACCURACY: +/- 0.5% AVAILABLE MODELS: SA-2010S – STANDARD MODEL WITH HOSPITAL-GRADE NEMA 5-15P LINE PLUG AND HOSPITAL-GRADE NEMA 5-20R DUT TEST RECEPTACLE FOR USE IN THE US AND OTHER COMPATIBLE COUNTRIES SA-2010S-INTL – INTERNATIONAL MODEL, IEC C20 RECEPTACLE PIGTAIL (MUST USE COUNTRY-SPECIFIC LINE CORD –...
  • Page 11 USB TO RS-232 ADAPTER CS-2000-U 1 AMP CURRENT SOURCE - USA/NORTH AMERICA CS-2000-E 1 AMP CURRENT SOURCE - EURO (SCHUKO) SA-2010S-INTL LINE CORDS: (REFER TO PAGE 9 FOR DETAILS) BC20-20400 NEMA 5-20P PLUG LINE CORD (USA/NORTH AMERICA) BC20-20401 JA1-15P PLUG LINE CORD (JAPAN)

  • Page 12: Layout

    LAYOUT This section looks at the layouts of the SA-2010S Models and gives descriptions of the elements that are present. For all models, the user controls all Analyzer functions via light touch keys. There is an audio click when any key is depressed, while a “Razz” or error tone consisting of a rapid succession of beeps is sounded if an invalid key is depressed.
  • Page 13 Receptacle for DUT SA-2010S-INTL Layout SA-2010S-AUS Layout The SA-2010S-INTL and SA-2010S-AUS Model Layouts are shown above, note that the only differences from the standard model are the Line cords and the DUT test Receptacles. Note: The RS-232 connector isn’t shown above for these two models, but is an...
  • Page 14 Display The main information in the system is presented in the 3-1/2 digit LCD display. This data is provided as simple meter readings with the measurement units indicated to the right by one of four LED indicators. Universal Patient Lead Connectors The 10 Universal Patient Lead Connectors allow for 12 lead ECG simulation with independent outputs.
  • Page 15 Analyzer Test Receptacle Control There are four keys and 8 LEDs in the Analyzer Test Receptacle Control Section. They allow the manual control of the power connections that are made to the DUT. Internally, a series of relays are switched by the microprocessor based on the keys that are depressed.
  • Page 16 Analyzer and the DUT through the Test Receptacle. The Power Cord varies depending on the Analyzer model. SA-2010S models use a NEMA 5-15P plug designed to plug into a NEMA 5-15R or 5-20R Receptacle. SA-2010S-INTL models have a short IEC C20 plug for which a country-specific adapter cable must be connected –...
  • Page 17 Adapter Cable with Standard Product Plug and Required International Connector (See Options Below) Universal Power Cord which Connects to Standard Product Plug Communications (Optional) On Analyzer models with the –R option, a DB-9 RS-232 Communications port is provided to interface the analyzer with a PC. Data from the Analyzer display may be transferred over this communications link as well as full control over all analyzer functions and settings.

  • Page 18: Testing

    TESTING The SA-2010S Models allow the user a great deal of flexibility in testing. Any of the basic tests can be run and in almost any sequence. The information in this section presents a systematic approach that is just one way to proceed. It is only presented as a guide and it is the responsibility of the user to establish which tests are required.
  • Page 19 Device Current With the Device Current function selected, the display will show the current draw of the DUT. The Receptacle should be configured with HOT-CLOSED, NEUTRAL-CLOSED, GROUND-CLOSED and POLARITY-FWD. Refer to the Specifications section for current capacity and permitted duty cycle for this test mode. Earth Resistance With the Earth Resistance function selected, the display will show the resistance between the Chassis Test lead and Receptacle Earth/Ground.
  • Page 20 With the Lead Isolation function selected and the “ISO” Test key depressed, the display will show the leakage current between the selected Patient Lead(s) and Earth/Ground. WARNING The SA-2010S applies 110% of line voltage to the Patient leads or External test leads during the Isolation test. Although this is current limited by a 121 kΩ...
  • Page 21 Point to Point Isolation Leakage Current WARNING The SA-2010S applies 110% of line voltage to the Patient leads or External test leads during the Isolation test. Although this is current limited by a 121 kΩ internal resistor, per standard test specifications, care should be taken to prevent contact with this voltage.
  • Page 22 The test requires that the Chassis Test lead be plugged into the Chassis Connector and the External Test lead be plugged into the External Connector. The other ends of the leads are then attached to the points of interest. Depress and hold the Isolation Voltage key. This will apply 110% of the line voltage through a 121 kΩ...

  • Page 23: Patient Simulator

    “1_ _ _”. Pulse Waves The SA-2010S simulates a Normal Sinus Rhythm pulse at 30, 60, 120 and 240 BPM. With ECG Waveforms function selected, use the arrow keys under the waveform LEDs to select the desired pulse. The LEDs will pulse with the waveform.

  • Page 24: Communication Protocol

    COMMUNICATION PROTOCOL The communication protocol provides a means to completely configure and use the Analyzer from a PC or other device with RS-232 communications interface. This provides for hands free or automated operation of the equipment. Communication Port The Serial port is configured as 115,200 Baud Rate, 8 Data Bits, 1 Stop Bit, and No Parity.
  • Page 25 Commands sent to the device are not case sensitive. Upper case characters in the command summary table below are used to show the shortened versions of the commands if available. SA-2010S-R Communication Command Summary Value Keyword Node...
  • Page 26 SA-2010S-R Communication Command Summary (Continued) Value Keyword Node Description Isolation Test ON Isolation Test OFF SYSTem UNITs? Returns the units of Measure (Volts, Amps, uA, Ohms) [Read Only] MEASurement? Returns the latest measurement [Read Only] Changes Mode Up one position...

  • Page 27: Manual Revisions

    MANUAL REVISIONS Revision # Revisions Made Rev 01 Origination Rev 02 Photos Updated Rev 03 Specifications Updated Rev 05 Address Updated Rev 06 Communication Protocol Added Rev 07 Communication Protocol Edited Rev 08 Pictures Updated Rev 09 Miscellaneous Edits Rev 10 Format Updated, Specifications Updated, Misc.

  • Page 28: Specifications

    SPECIFICATIONS MAINS VOLTAGE RANGE 90 to 264 VAC, 50/60 Hz ACCURACY ± 3% of Reading, ± 1 digit DEVICE CURRENT RANGE 0 to 19.99 Amps, RMS ACCURACY ± 5% of Reading, ± 1 digit EARTH RESISTANCE 0 to 19.99 Ω RANGE 0 to 1.99 Ω...
  • Page 29 Must use Country-specific SA-2010S-INTL MODELS Line Cord (see Accessories section) AU1-10P (AS/NZS 3112) SA-2010S-AUS MODELS 15 Amps, 30 minutes SA-2010S & SA-2010S-INTL MODELS 20 Amps, 5 minutes DUT CURRENT CAPACITY 10 Amps, 30 minutes SA-2010S-AUS MODELS 20 Amps @ 125 VAC...
  • Page 30 Compatible with: o NEMA 5-15P, NEMA 5-20P, NEMA 6-15P NEMA 6-20P (US/NORTH AMERICA) o UK1-13P and UK3-5P (UK) o SW1-10P SA-2010S-INTL MODELS (SWITZERLAND) o IT1-10P (ITALY) o IS1-16P (ISRAEL) DUT RECEPTACLE o JA1-15P (JAPAN) (continued) o EU1-16P (EURO) CEE 7/7 “SCHUKO”...
  • Page 31 PHYSICAL & ENVIRONMENTAL (continued) SIZE 8.65 x 5.73 x 2.40 Inches (219.7 x 145.5 x 61.0 mm) ≤ 3.5 Lbs (1.6 kg) WEIGHT 15 to 40 °C (59 to 104 °F) OPERATING RANGE 10 to 90% RH, Non-Condensing STORAGE RANGE -20 to 65 °C (-4 to 149 °F)

  • Page 32: Notes

    NOTES...
  • Page 33 NOTES...
  • Page 34 NOTES...
  • Page 36 BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com sales@bcgroupintl.com SA-2010S Series User Manual 06/12 – Rev 11 Copyright © 2012 Made in the USA...
