DIGITAL PRESSURE METERS

DPM-2001

DPM-2001PLUS

DPM-2100

USER MANUAL

Table of Contents

Need help?

Do you have a question about the DPM-2000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BC Biomedical DPM-2000 Series

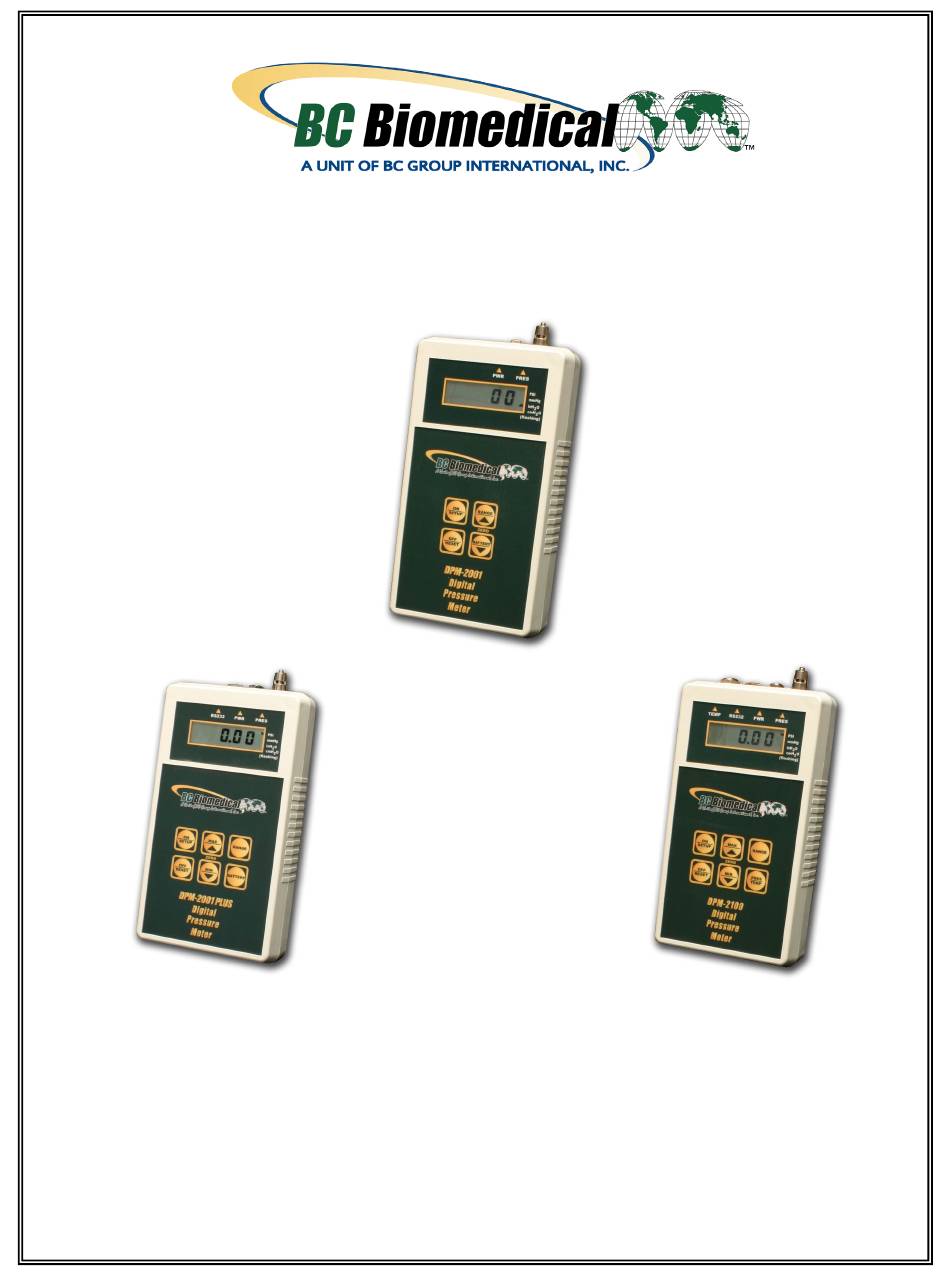

Page 1 DIGITAL PRESSURE METERS DPM-2001 DPM-2001PLUS DPM-2100 USER MANUAL...
Page 3: Table Of Contents
BC BIOMEDICAL DPM-2000 SERIES TABLE OF CONTENTS WARNINGS, CAUTIONS, NOTICES ................ii DESCRIPTION ....................... 1 LAYOUT ......................... 3 DISPLAY INDICATORS ....................6 KEYS ..........................7 SETUP MODE ......................10 TESTING LIQUID PRESSURE ..................11 COMMUNICATIONS ....................12 MANUAL REVISIONS ....................15 LIMITED WARRANTY ....................
Page 4: Warning - Connections
CAUTION – MEDIA COMPATIBILITY The DPM-2000 Series is intended to be used with only non-corrosive, non-ionic, or otherwise pure fluids and/or gases that are compatible with sensor materials including glass, silicon, ceramic, epoxy, RTV, gold, aluminum, and nickel.
Page 5: Caution - Service
CAUTION - SERVICE The DPM-2000 Series is intended to be serviced only by authorized service personnel. Troubleshooting and service procedures should only be performed by qualified technical personnel. CAUTION - ENVIRONMENT Exposure to environmental conditions outside the specifications can adversely affect the performance of the DPM-2000 Series.
Page 7: Notice - Symbols
NOTICE – SYMBOLS Symbol Description Center Negative NOTICE – ABBREVIATIONS ANSI American National Standards Institute Binary Coded Decimal Celsius Centimeter(s) water ° Degree(s) Device Under Test Direct Current Euro European Fahrenheit Full Scale Inche(s) of water kilogram(s) µA microampere(s) milliampere(s) mBar milliBar(s) millimeter(s)
Page 8: Notice - Disclaimer
FOR INACCURACIES. NOTICE – CONTACT INFORMATION BC BIOMEDICAL BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com sales@bcgroupintl.com DPM-2000 Series User Manual Copyright © 2023 www.bcgroupintl.com Made in the USA 11/23 Rev 11...
Page 9 This Page Intentionally Left Blank...
Page 10: Description
DPM-2000 SERIES DIGITAL PRESSURE METERS The Model DPM-2000 Series is a Microprocessor based Digital Pressure Meter family. They measure both gas and liquid pressures and provide multiple engineering unit displays for the results. The following are highlights of some of the main features.
Page 11 OPTIONAL ACCESSORIES: • BC20-21111 UNIVERSAL BATTERY ELIMINATOR • BC20-21102 RS-232 COMMUNICATIONS CABLE (1/8 STEREO PLUG TO DB-9F) • BC20-41339 USB COMMUNICATIONS ADAPTER (DB-9M to USB-A) • BC20-30106 SOFT-SIDED CARRYING CASE • BC20-01005 UNIVERSAL PRESSURE ADAPTER KIT • BC20-01006 YSI 700 TEMPERATURE PROBE...
Page 12: Layout
LAYOUT This section looks at the layout of the DPM-2000 series and gives descriptions of the elements that are present. Temperature: RS-232: Power: ¼” Phone Jack ⅛” Stereo Jack 2.1 mm receptacle (Optional Battery Eliminator) Pressure Port: Male Luer Lock...
Page 13 RS-232: Power: ⅛” Stereo Jack 2.1 mm receptacle (Optional Battery Eliminator) Pressure Port: Male Luer Lock Coupler 6 Light Touch Keys for Selecting Parameters and Settings DPM-2001PLUS LAYOUT...
Page 14 Power: 2.1 mm receptacle Pressure Port: (Optional Battery Male Luer Lock Eliminator) Coupler 4 Light Touch Keys for Selecting Parameters and Settings DPM-2001 LAYOUT...
Page 15: Display Indicators
DISPLAY INDICATORS Several indicators are provided to identify the current mode and/or status. PRESSURE UNITS – Pressure units are indicated by an identifier bar. The RANGE key will toggle the pressure units among PSI, mmHG, inH O and cmH O. The following is a breakdown of the available pressure units and the measurement range for each: Identifier Bar Pressure Units...
Page 16: Keys
KEYS Several tactile-touch keys are provided for system operation. – The function of this key is dependent on the Current Operating Mode as follows: POWER OFF – If this key is pressed while the power is turned OFF, the power will be turned ON PRESSURE MEASUREMENT –...
Page 17 (DPM-2001) or (DPM-2001PLUS & DPM-2100) – The function of this key is dependent on the Current Operating Mode as follows: PRESSURE MEASUREMENT (DPM-2001) – If this key is pressed while the pressure is being displayed, the unit will step through the available pressure ranges (PSI, inH 0, cmH 0 and mmHg).
Page 18 ZERO – This function is a combination of two keys: DPM-2001: DPM-2001PLUS & DPM-2100: If both keys are depressed and held for 5 seconds, the pressure display will be zeroed. (DPM-2001PLUS & DPM-2100) – The function of this key is to select the desired display engineering units.
Page 19: Setup Mode
SETUP MODE The Setup Mode allows the user to adjust the configuration of the meter. The Setup Mode is entered by pressing the ON/SETUP key when the unit is on. The parameter and the current value will alternately flash in the display. The following table indicates the Parameters that are available, their meaning and available setting range: PARAMETER DESCRIPTION...
Page 20: Testing Liquid Pressure
TESTING LIQUID PRESSURE Measuring pressure in liquid lines (such as during an occlusion test for infusion pumps) requires the use of a transducer protector to prevent fluids intruding into the digital pressure meter. Each DPM-2000 unit comes with the BC20-01012 Transducer Protector, Luer Kit. Failure to use a transducer protector during a liquid pressure test can result in the intrusion of fluid into the DPM which can cause damage to the digital pressure sensor.
Page 21: Communications
COMMUNICATIONS Since the meter does not handle a great deal of data, the RS-232 communications link has been optimized to allow the user, through very simple instructions, to control and request data from the meter. Refer to Specifications section for RS-232 Settings (Baud, etc).
Page 22 CR - Carriage Return Examples: Data Sent Data Returned Meaning W172<CR> W172<CR><LF> Echo of Command Sent (Set Pressure units to “inH O”) W1700002<CR> W1700002<CR><LF> Echo of Command Sent (Set Pressure units to “inH O”) W01100<CR> W01100<CR><LF> Echo of Command Sent ??<CR><LF>...
Page 23 X - CANCEL The CANCEL command is simply a way to re-establish proper control, should a communications error occur or an incorrect command be transmitted. For the most part, an incorrect command will simply be ignored and the meter will return to listening for future commands. However, a prior command may be cancelled midstream by transmitting the CANCEL command anytime.
Page 24: Manual Revisions
MANUAL REVISIONS Revision # Program # Revisions Made Rev 01 DT7325CA Preliminary Manual Rev 02 DT7325CA Misc. Edits Rev 03 DT7325CA Battery Eliminator Updated Rev 04 DT7325CB Status Display Graphics Updated Rev 05 DT7325CD Accuracy Specifications Updated Rev 06 DT7325CG Program Upgrades, Color Overlays Updated Rev 07 DT7325CG...
Page 25: Specifications
SPECIFICATIONS PRESSURE -13.50 to 100.00 PSI -701 to 5190 mmHg @ 20 °C RANGE -374 to 2773 inH O @ 20 °C -951 to 7043 cmH O @ 20 °C 0.01 PSI 1 mmHg @ 20 °C RESOLUTION 1 inH O @ 20 °C 1 cmH O @ 20 °C...
Page 26 ENVIRONMENTAL OPERATING RANGE 0 to 50 °C (32 to 122 °F) STORAGE RANGE -40 to 60 °C (-40 to 140 °F) ELECTRICAL 9V Alkaline BATTERY (ANSI/NEDA 1604A or equivalent) 9 V, 50 mA DC BATTERY ELIMINATOR BC20-21111 Universal Battery Eliminator <...
Page 27: Notes
NOTES...
Page 28 NOTES...
Page 29 NOTES...
Page 30 NOTES...
Page 32 BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com sales@bcgroupintl.com DPM-2000 Series User Manual 11/23 – Rev 11 Copyright © 2023 Made in the USA...
