Summary of Contents for BC Biomedical SA-2000-INTL

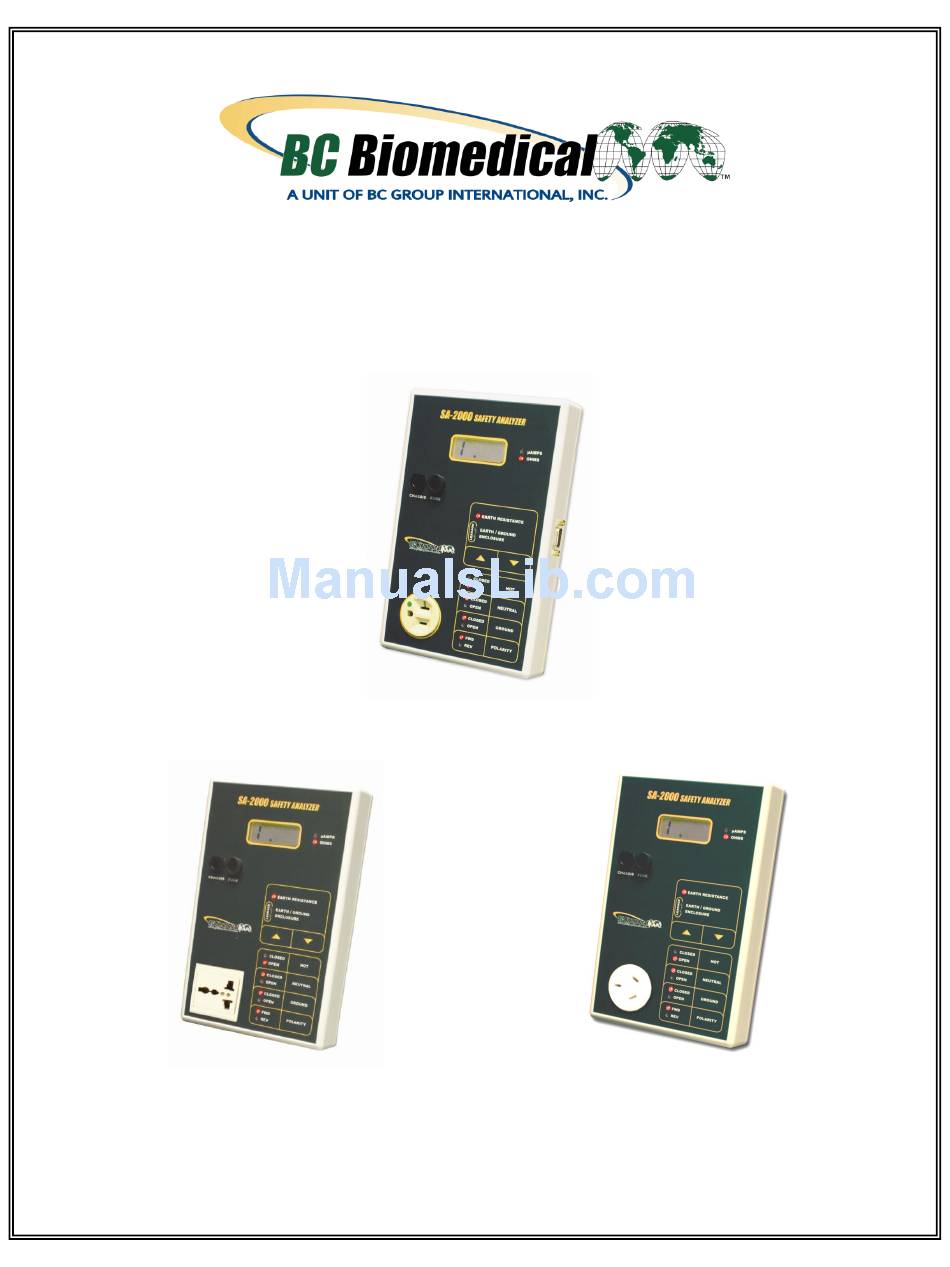

- Page 1 ELECTRICAL SAFETY ANALYZER SA-2000 SA-2000-INTL SA-2000-AUS USER MANUAL...
-
Page 3: Table Of Contents
DESCRIPTION ....................... 1 LAYOUT ......................... 3 TESTING........................7 COMMUNICATION PROTOCOL ................... 9 MANUAL REVISIONS ....................11 LIMITED WARRANTY ....................11 SPECIFICATIONS ....................... 12 NOTES ......................... 15 This User Manual covers the following units: SA-2000 & SA-2000-R SA-2000-INTL & SA-2000-INTL-R SA-2000-AUS & SA-2000-AUS-R... - Page 4 WARNING - USE The SA-2000 is intended for testing only and should never be used in diagnostics, treatment or any other capacity where they would come in contact with a patient. WARNING - CONNECTIONS All connections to patients must be removed before connecting the DUT to the SA-2000.
- Page 5 CAUTION - USAGE The SA-2000 is not a continuous duty device, it is intended for short duration testing within the current limits and duty periods specified. Do not leave the DUT connected to the SA-2000 for extended time periods. Do not to drop the SA-2000. CAUTION - ENVIRONMENT Exposure to environmental conditions outside the specifications can adversely affect the...
- Page 6 NOTICE – SYMBOLS Symbol Description Caution (Consult Manual for Further Information) Electrical Caution (Consult Manual for Further Information) Per European Council Directive 2002/95/EC, do not dispose of this product as unsorted municipal waste. NOTICE – ABBREVIATIONS Ampere(s) Association for the Advancement of AAMI Medical Instrumentation Celsius...
- Page 7 POSSIBLE PRODUCT. THE INFORMATION IN THIS MANUAL HAS BEEN CAREFULLY CHECKED AND IS BELIEVED TO BE ACCURATE. HOWEVER, NO RESPONSIBILITY IS ASSUMED FOR INACCURACIES. NOTICE – CONTACT INFORMATION BC BIOMEDICAL BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com...
- Page 8 This Page Intentionally Left Blank...
-
Page 9: Description
PLUG AND HOSPITAL-GRADE NEMA 5-20R DUT TEST RECEPTACLE FOR USE IN THE US AND OTHER COMPATIBLE COUNTRIES SA-2000-INTL – INTERNATIONAL MODEL, IEC C20 RECEPTACLE PIGTAIL (MUST USE COUNTRY-SPECIFIC LINE CORD – SEE ACCESSORIES SECTION) AND UNIVERSAL DUT TEST RECEPTACLE THAT WORKS WITH THE... - Page 10 USE WITH BC20-41337 1 AMP CURRENT SOURCE – USA/NORTH AMERICA CS-2000-U CS-2000-E 1 AMP CURRENT SOURCE - EURO (SCHUKO) SA-2000-INTL LINE CORDS: (REFER TO PAGE 6 FOR DETAILS) BC20-20400 NEMA 5-20P PLUG LINE CORD (USA/NORTH AMERICA) BC20-20401 JA1-15P PLUG LINE CORD (JAPAN)
-
Page 11: Layout
LAYOUT This section looks at a SA-2000 layout and gives descriptions of the elements that are present. The user controls all Analyzer functions via 6 light touch keys. There is an audio click when any key is depressed, while a “Razz” or error tone consisting of a rapid succession of beeps is sounded if an invalid key is depressed. - Page 12 SA-2000-INTL Layout SA-2000-AUS Layout The SA-2000-INTL and SA-2000-AUS Model Layouts are shown above, note that the only differences from the standard model are the Line cords and the DUT test Receptacles. Note: The RS-232 connector isn’t shown above for these two models, but is an available option for both (see previous section).
- Page 13 Analyzer model. SA-2000 models use a NEMA 5-15P plug designed to plug into a NEMA 5-15R or 5-20R Receptacle. SA-2000-INTL models have a short IEC C20 plug for which a country-specific adapter cable must be connected – See the following section for this information.
- Page 14 Adapter Cable with Standard Product Plug and Required International Connector (See Options Below) Universal Power Cord which Connects to Standard Product Plug Communications (Optional) On Analyzer models with the –R option, a DB-9 RS-232 Communications port is provided to interface the analyzer with a PC. Data from the Analyzer display may be transferred over this communications link as well as full control over all analyzer functions and settings.
-
Page 15: Testing
TESTING The Model SA-2000 allows the user a great deal of flexibility in testing. Several basic tests can be run, and in almost any sequence. The information in this section presents a systematic approach that is just one way to proceed. It is only presented as a guide and it is the responsibility of the user to establish which tests are required. - Page 16 Enclosure Leakage With the Enclosure function selected, the display will show the leakage current between the Enclosure (Chassis) and Earth/Ground. The display is in µAmps and will read from 0 to 1999. The test requires that the Chassis Test lead be plugged into the Chassis Connector. The other end should be connected to a solid ground point on the DUT.
-
Page 17: Communication Protocol
COMMUNICATION PROTOCOL The communication protocol provides a means to completely configure and use the Analyzer from a PC or other device with RS-232 communications interface. This provides for hands free or automated operation of the equipment. Communication Port The Serial port is configured as 115,200 Baud Rate, 8 Data Bits, 1 Stop Bit, and No Parity. - Page 18 case characters in the command summary table below are used to show the shortened versions of the commands if available. SA-2000-R Communication Command Summary Value Keyword Node Description CONFigure MODE ERESistance Earth Resistance EGROund Earth / Ground Leakage ENCLosure Enclosure Leakage OPEN Receptacle Hot Lead Open CLOSed...
-
Page 19: Manual Revisions
MANUAL REVISIONS Revision # Revisions Made Rev 01 Preliminary Manual Rev 02 Table of Contents Updated Rev 03 Color Overlays Rev 04 Accessories Added Rev 05 Specifications Updated Rev 06 Format Updated, Communication Protocol Added, Specifications Updated, Misc. Edits LIMITED WARRANTY WARRANTY : BC GROUP INTERNATIONAL, INC. -
Page 20: Specifications
Receptacle Pigtail Cord LINE PLUG Must use Country-specific SA-2000-INTL MODELS Line Cord (see Accessories section) AU1-10P (AS/NZS 3112) SA-2000-AUS MODELS 15 Amps, 30 minutes SA-2000 & SA-2000-INTL MODELS 20 Amps, 5 minutes DUT CURRENT CAPACITY 10 Amps, 30 minutes SA-2000-AUS MODELS... - Page 21 NEMA 5-15P, NEMA 5-20P, NEMA 6-15P NEMA 6-20P (US/NORTH AMERICA) o UK1-13P and UK3-5P DUT RECEPTACLE (UK) o SW1-10P SA-2000-INTL MODELS (SWITZERLAND) o IT1-10P (ITALY) o IS1-16P (ISRAEL) o JA1-15P (JAPAN) o EU1-16P (EURO) CEE 7/7 “SCHUKO” (NOTE: MUST USE BC20-20221...
- Page 22 PHYSICAL & ENVIRONMENTAL Non-Backlit 3½ Digit LCD DISPLAY 0.5 inches (12.7 mm) Digit Height ENCLOSURE ABS Plastic CONSTRUCTION OVERLAY Back-printed Lexan 8.65 x 5.73 x 1.92 Inches SIZE (219.7 x 145.5 x 48.8 mm) ≤ 2.5 Lbs (1.1 kg) WEIGHT 15 to 40 °C (59 to 104 °F) OPERATING RANGE 10 to 90% RH, Non-Condensing...
-
Page 23: Notes
NOTES... - Page 24 NOTES...
- Page 25 NOTES...
- Page 26 NOTES...
- Page 28 BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com sales@bcgroupintl.com SA-2000 Series User Manual 06/12 – Rev 06 Copyright © 2012 Made in the USA...
