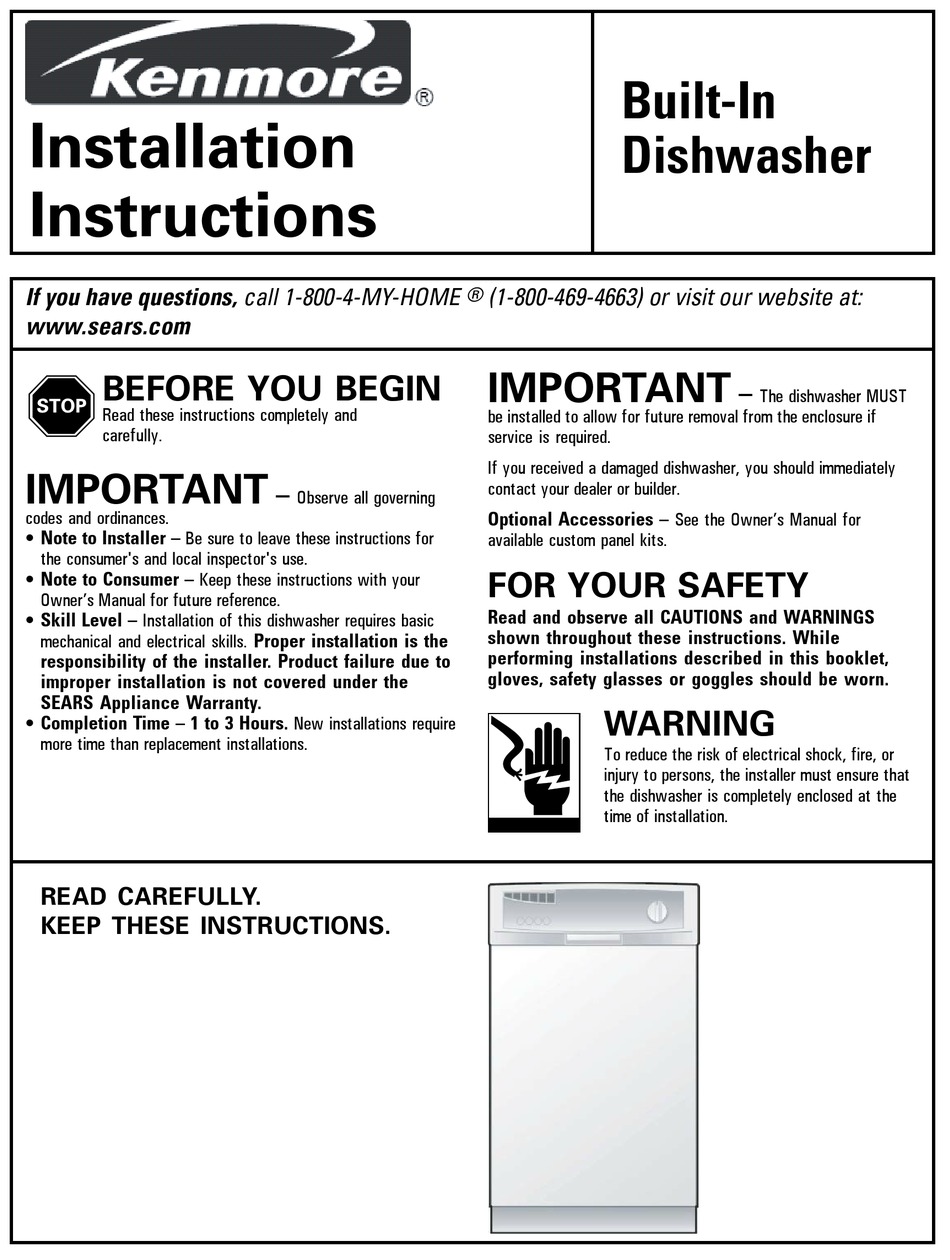

Installation
Instructions
If you have questions, call 1-800-4-MY-HOME
www.sears.com
Read these instructions completely and
carefully.
IMPORTANT
codes and ordinances.
• Note to Installer – Be sure to leave these instructions for
the consumer's and local inspector's use.
• Note to Consumer – Keep these instructions with your
Owner's Manual for future reference.
• Skill Level – Installation of this dishwasher requires basic
mechanical and electrical skills. Proper installation is the
responsibility of the installer. Product failure due to
improper installation is not covered under the
SEARS Appliance Warranty.
• Completion Time – 1 to 3 Hours. New installations require
more time than replacement installations.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Observe all governing

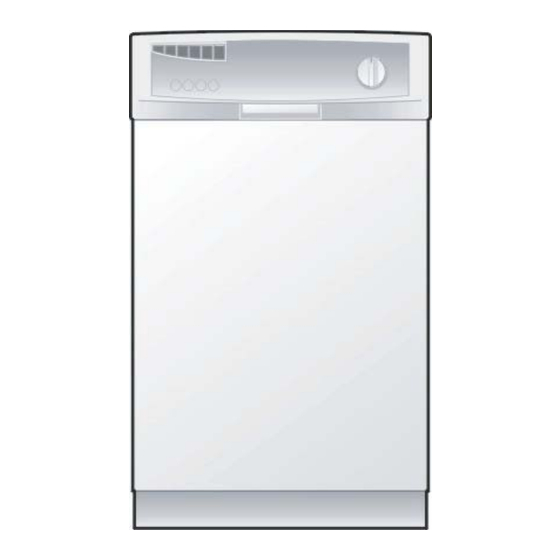

Built-In
Dishwasher
®
(1-800-469-4663) or visit our website at:
IMPORTANT
be installed to allow for future removal from the enclosure if
service is required.
If you received a damaged dishwasher, you should immediately
contact your dealer or builder.
Optional Accessories – See the Owner's Manual for
available custom panel kits.
Read and observe all CAUTIONS and WARNINGS
shown throughout these instructions. While
performing installations described in this booklet,
gloves, safety glasses or goggles should be worn.
WARNING
To reduce the risk of electrical shock, fire, or
injury to persons, the installer must ensure that
the dishwasher is completely enclosed at the
time of installation.
The dishwasher MUST

Advertisement

   Summary of Contents for Kenmore 66515751791

  • Page 1: Installation Instructions, Before You Begin, For Your Safety

    Built-In Installation Dishwasher Instructions If you have questions, call 1-800-4-MY-HOME ® (1-800-469-4663) or visit our website at: www.sears.com IMPORTANT BEFORE YOU BEGIN – The dishwasher MUST Read these instructions completely and be installed to allow for future removal from the enclosure if carefully.

  • Page 2: Installation Preparation, Parts Supplied, Materials You Will Need, Tools You Will Need

    Installation Preparation PARTS SUPPLIED: Two #8 Phillips flat head wood screws, 5/8” long to secure dishwasher to underside of countertop (in literature package). Two Phillips head, color matched toekick screws (in literature package). 2 Wood Screws Screw Type 2 Color Matched Hose Clamp Toekick Screws MATERIALS YOU WILL NEED:...

  • Page 3: Prepare Dishwasher Enclosure, Drain Requirements

    Installation Preparation • The dishwasher must be installed so that drain hose is no more PREPARE DISHWASHER ENCLOSURE than 10 feet in length for proper drainage. • The dishwasher must be fully enclosed on the top, sides and back, and must not support any part of the enclosure. Countertop 32.5"...

  • Page 4: Prepare Electrical Wiring

    Installation Preparation PREPARE ELECTRICAL WIRING WARNING FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker before beginning installation. Do not use an extension cord or 1-1/2" Dia. adapter plug with this appliance. Hole (Max.) 3" Electrical Requirements from • This appliance must be supplied with 120V, 60 Hz., and Cabinet connected to an individual properly grounded branch circuit, 24"...

  • Page 5: Prepare Hot Water Line, Before You Begin, Step 1 Check Door Balance, Water Line Connection

    Installation Instructions PREPARE HOT WATER LINE BEFORE YOU BEGIN • The line may enter from either side, rear or floor within the Locate and set aside the package containing shaded area shown in Figure F. 2 Phillips head countertop mounting screws and •...

  • Page 6: Step 2 Adjust Leveling Legs, Step 3 Remove Toekick

    Installation Instructions STEP 2 ADJUST LEVELING LEGS STEP 4 INSTALL 90° ELBOW • Move the dishwasher close to the installation location and lay • Wrap 90° elbow with thread seal tape. it on its back. • Install a 90° elbow onto the water valve. Fill Hose Adjust to...

  • Page 7

    Installation Instructions STEP 5 POSITION WATER LINE STEP 7 SLIDE DISHWASHER AND HOUSE WIRING PARTIALLY INTO CABINET • Position water supply line and house wiring on the floor of the DO NOT PUSH AGAINST FRONT PANEL WITH KNEES. opening to avoid interference with base of dishwasher and DAMAGE WILL OCCUR.

  • Page 8

    Installation Instructions STEP 8 POSITION DISHWASHER UNDER COUNTERTOP Reposition Dishwasher • Check to be sure that wires are secure under the dishwasher by Grasping Both and not pinched or in contact with door springs or other Sides With Hands dishwasher components. TIP: Check tub insulation blanket, if equipped.

  • Page 9

    Installation Instructions STEP 10 SECURE DISHWASHER STEP 11 CONNECT WATER TO CABINET SUPPLY The dishwasher must be secured to the countertop. Connect water supply to 90° elbow. • Position the dishwasher so that the tub flange aligns with the • Slide compression nut, then ferrule over end of water line. front face of the cabinet frame.

  • Page 10: Drain Line Installation

    Installation Instructions STEP 12 CONNECT DRAIN LINE DRAIN LINE INSTALLATION • Connect drain line to air gap, waste tee or disposer using either FOLLOW ALL LOCAL CODES AND ORDINANCES. previously determined method. The drain hose molded end will fit 5/8”, 3/4” or 1” diameter connections on the air gap, waste tee or disposer.

  • Page 11

    Installation Instructions STEP 13 CONNECT POWER STEP 14 PRE-TEST CHECKLIST SUPPLY Review this list after installing your dishwasher to avoid charges for a service call that is not covered Skip this step if equipped with power cord. by your warranty. Verify that power is turned off at the source.

  • Page 12

    Installation Instructions STEP 15 DISHWASHER WET TEST STEP 16 REPLACE TOEKICK Turn on power supply (or plug power cord into outlet, if equipped). Turn dial to Normal “Wash” position. Close door. Check to be sure that water enters the dishwasher. If water does not enter the dishwasher, check to be sure that water and power are turned on.
